Hinge Position and Mounting Plate Marking Tool / pc
€1.68
In stock
Product

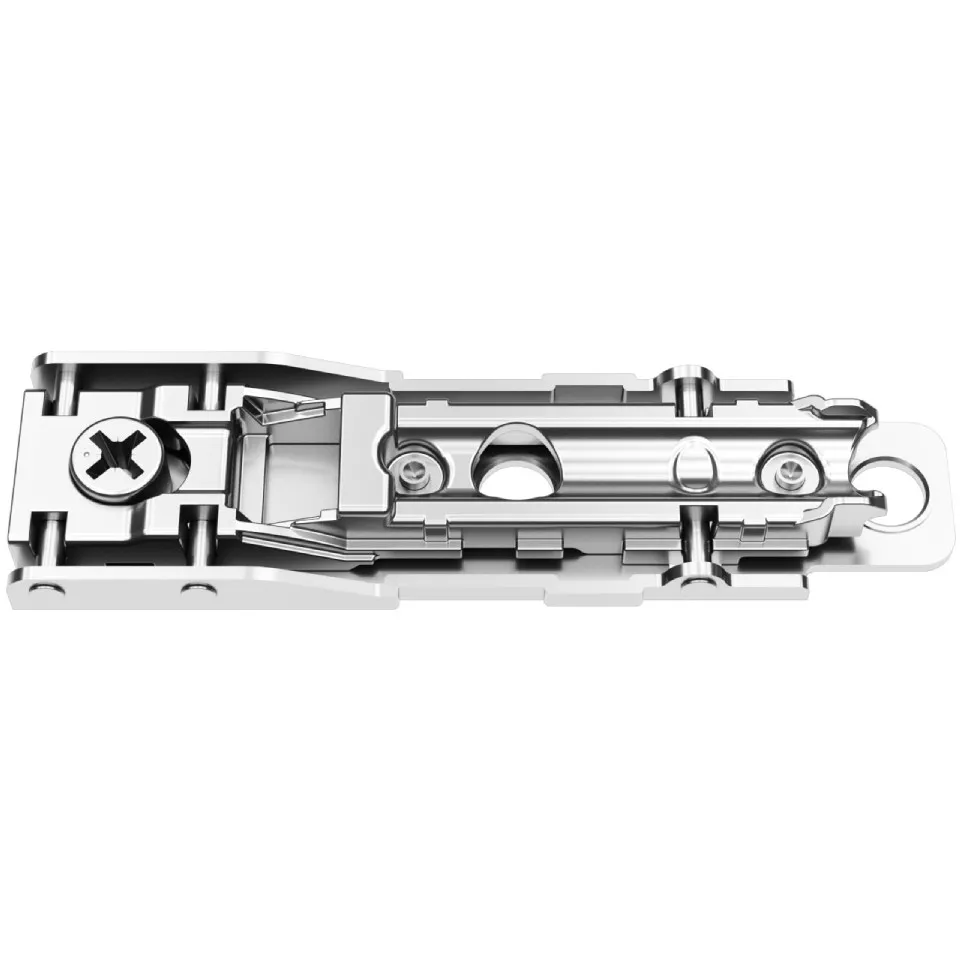

Linear Pivot-Star nickel-plated mounting plate with Euro screws, designed for Ø5 x 8mm drilling, provides direct height adjustment and a 2mm mounting distance. Suitable for stud hinges and accessory installations requiring precise vertical alignment.
Specifications
- Steel mounting plate finished in nickel for corrosion resistance
- Features Euro screws for secure attachment and ease of installation
- Direct height adjustment capability, allowing vertical movement for alignment

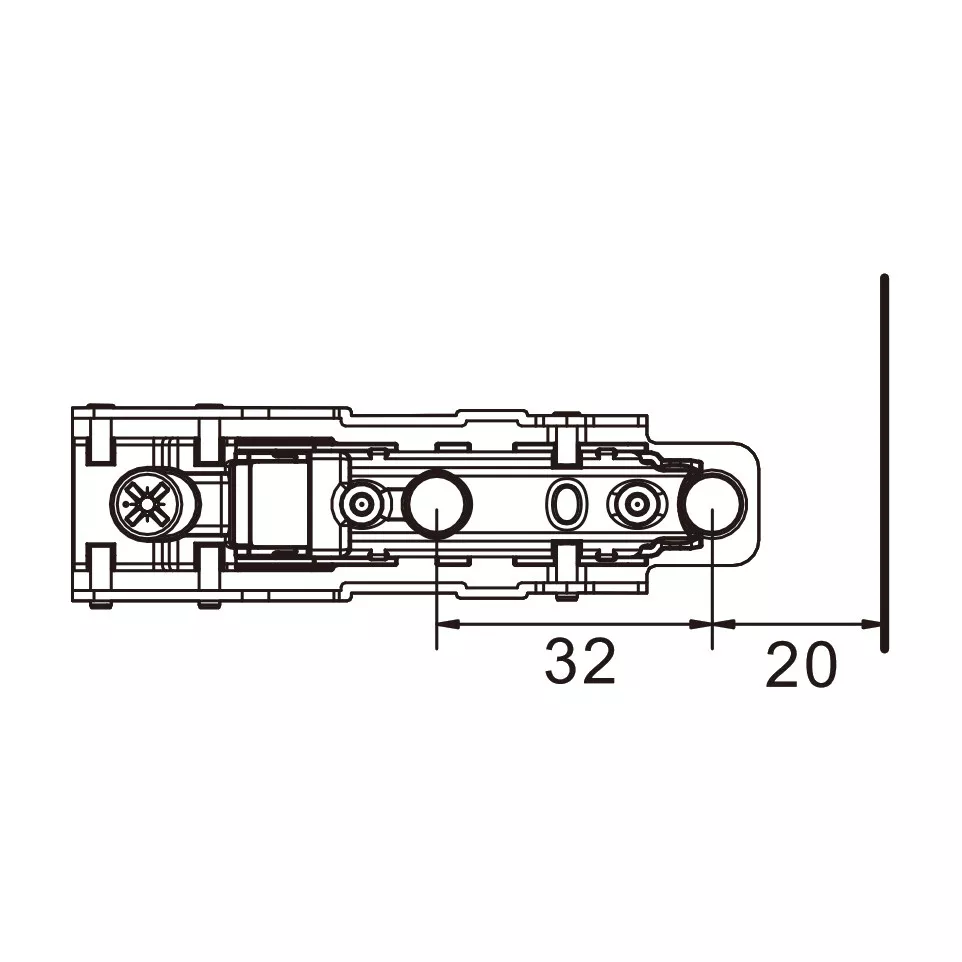

- Mounting distance: 2 mm
- Designed for Ø5 x 8 mm holes for efficient mounting
- Compatible with Pivot-Star range and applicable for full overlay, half overlay, or inset hinge setups
Usage
Mount the plate to the cabinet substrate using Euro screws in pre-drilled Ø5 x 8mm holes. Use the direct height adjustment feature to make fine vertical corrections, ensuring accurate hinge positioning for smooth cabinet door operation and precise fitting.
FAQ
-
What hinges is this mounting plate compatible with?
This plate is designed for use with Pivot-Star stud hinges and related accessories. -
How does the direct height adjustment work?
The adjustment mechanism allows the installer to move the plate up or down after fixing, for optimal door alignment. -
What is the required drilling size for installation?
The plate is installed using holes drilled at Ø5 x 8 mm. -
Is the mounting plate suitable for overlay and inset doors?
Yes, it supports full overlay, half overlay, and inset mounting applications. -
What material is the mounting plate made from?
The plate is made from steel with a nickel-plated finish for durability and corrosion resistance.
