Usage

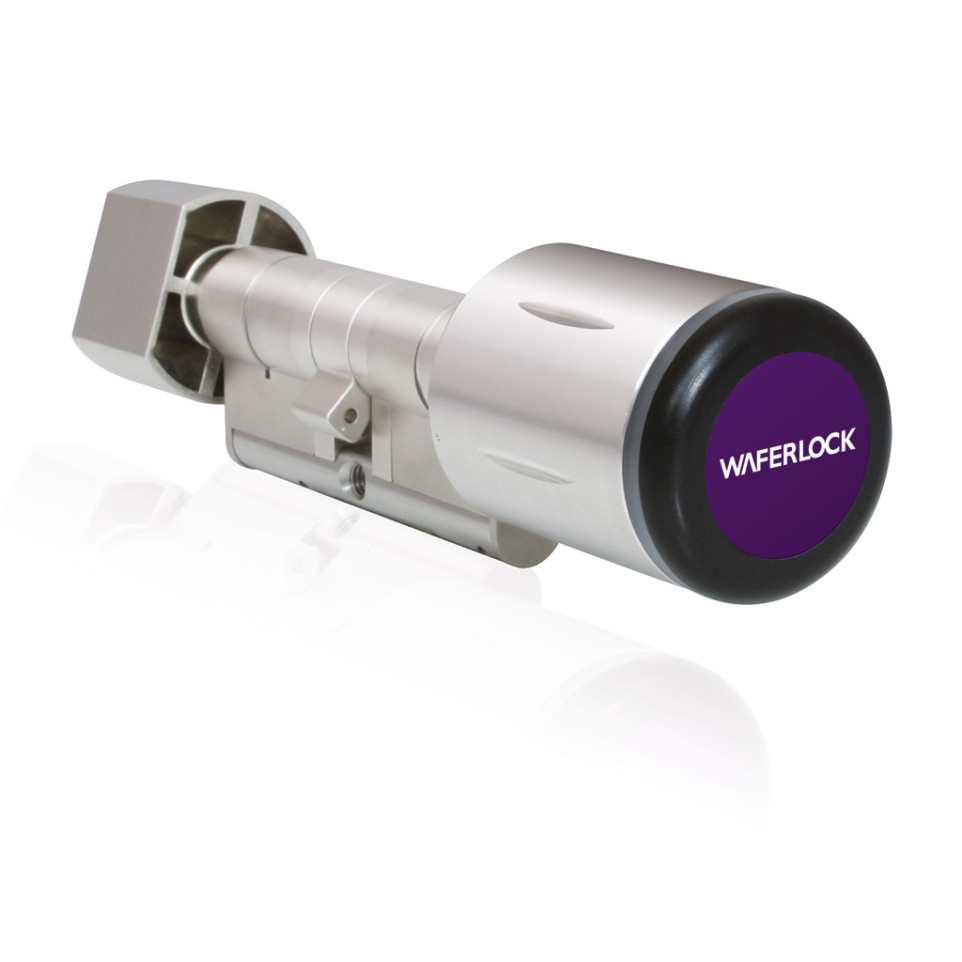

The Cylindre Waferlock 1 tête de lecture 30/30 is designed for electronic access control, providing secure and flexible locking for Euro profile doors in commercial, residential, or shared environments.
Advantages
- Multiple unlocking options: via key card, mobile app (Bluetooth/NFC), or user-set numeric combination
- High security with EN15684 certification and protections against drilling, bumping, and snapping
- IP68-rated water and dust resistance for reliable performance in harsh conditions
- Supports up to 2,000 unique users for scalable access management
- Easy installation without wiring; fits most standard Euro profile doors with adjustable length
Specifications
- Cylinder length: adjustable from 30/30 mm up to double configurations (suits a wide range of door thicknesses)
- Main materials: robust metal housing with electronic components protected by IP68 enclosure rating
- EN15684 certified for advanced anti-theft protection; anti-drill, anti-bump & anti-snap features included
- MIFARE/Bluetooth/NFC wireless technologies supported (Android compatible)
- Powers on a single CR2 battery; battery life up to two years based on typical use (10 openings/day at room temperature)
- Withstands temperatures from -20°C to +60°C; acoustic warning when battery is low
How it works
The cylinder replaces your existing lock barrel. Users unlock the door using a key card, smartphone app, or numeric code. The device manages user credentials electronically and requires no complex installation—simply switch the cylinder using standard tools.
