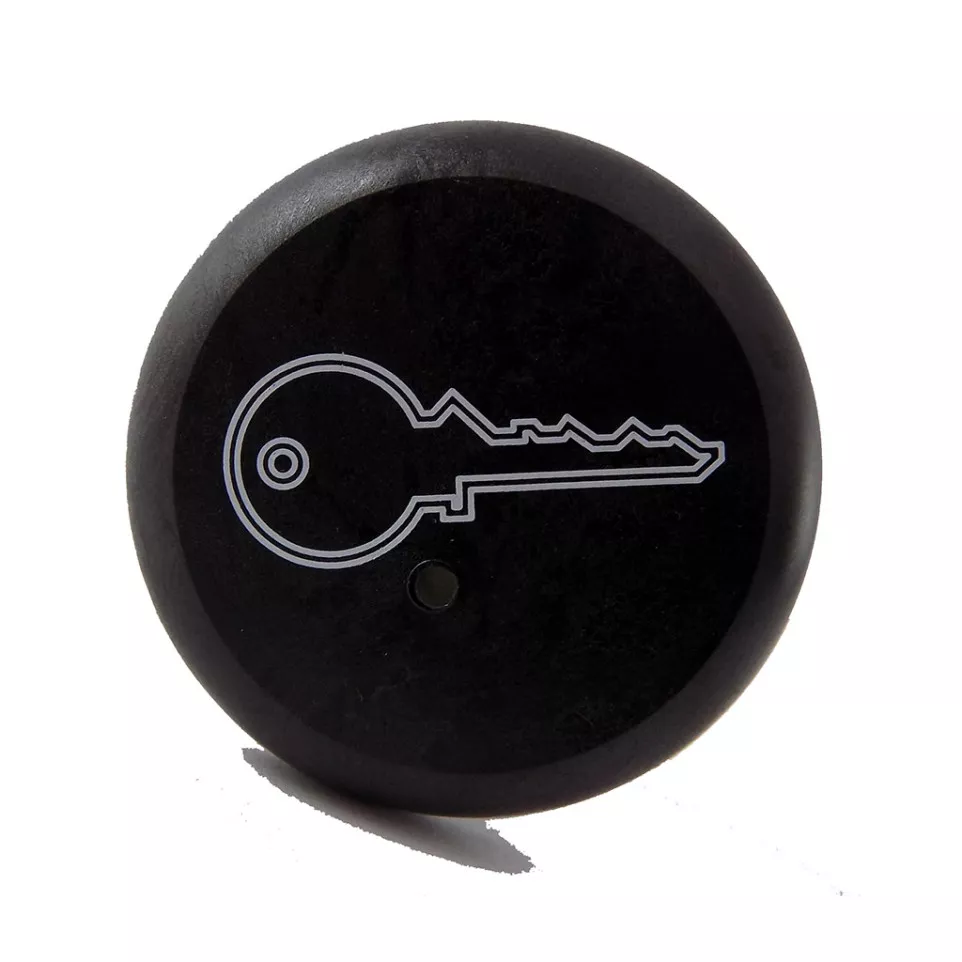

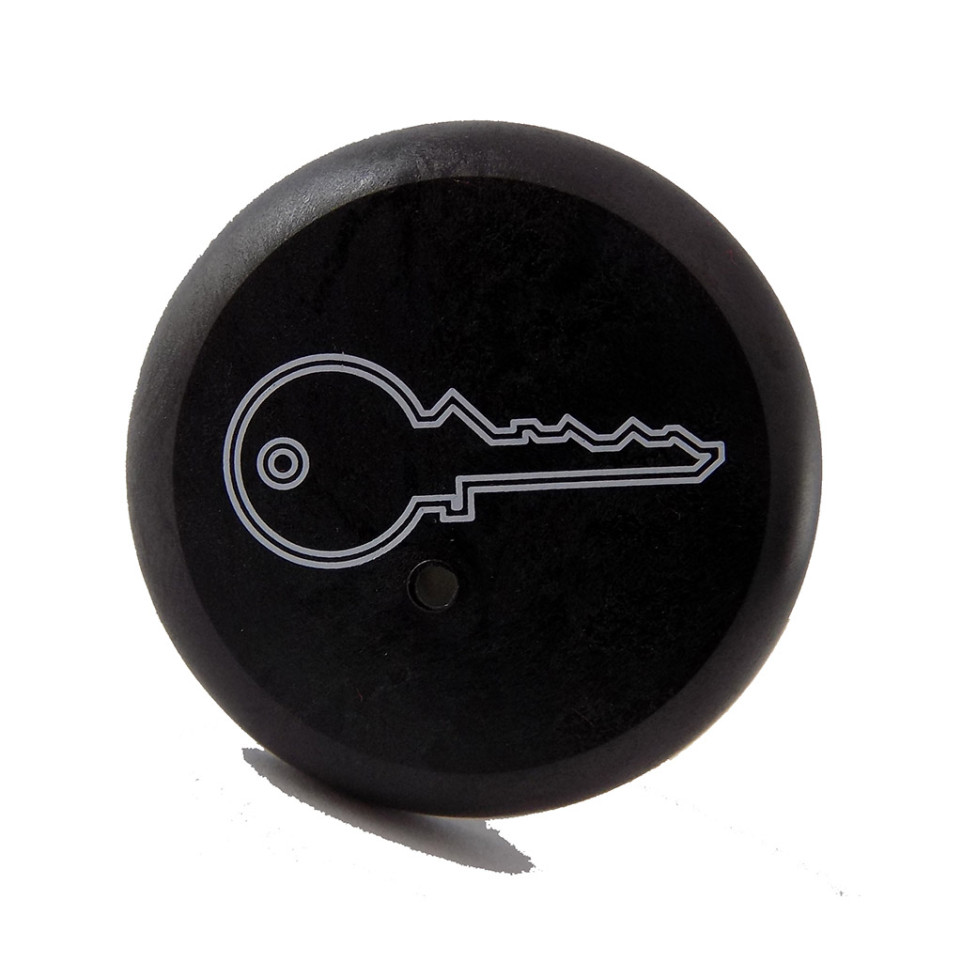

MIFARE Stainless Steel Engraved Black Electronic Badge / pc
€14.02
In stock
Usage
The Intrabox Data Eco Prox is a single-door access control kit designed for secure, remote management of building entry points using proximity credentials. Ideal for residential or commercial properties requiring controlled and monitored access.
Advantages
- Enables remote, real-time management of user permissions via GSM connectivity
- No need for an on-site programmer—changes can be made from any location
- High storage capacity supports up to 10,000 key fobs or master keys
- Durable stainless steel finish with components built to withstand daily use and tampering attempts (vandal resistant)
- Email alerts for technical events; unlimited data and synchronisation included for ten years
Specifications

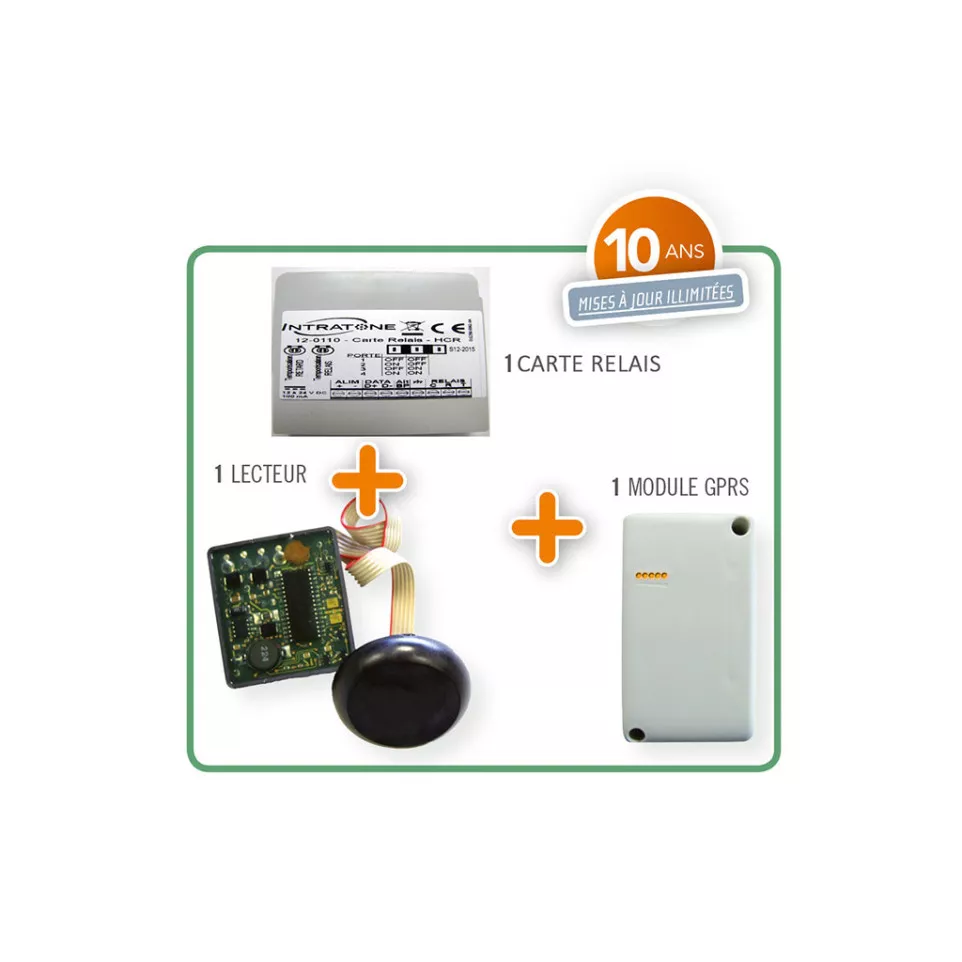

- Design & Materials: Flush-fit square proximity reader (32 x 42 x 18 mm), relay card (74 x 59 x 18 mm), GPRS module (162 x 96 x 53 mm); stainless steel housing provides a robust exterior and sleek appearance.
- Durability & Standards: Operating temperature ranges from -20°C to +70°C; IP50 protection class; vandal-resistant construction ensures reliable operation in high-traffic areas.
- Performance: Supports up to 10,000 users/key fobs; operates on a power supply of min. 12/24 V DC, 2 A (not supplied); maximum wiring distance: 200 m using twisted pair cable.
- Differentiating Features: Compatible with MIFARE key fobs and transmitters; records event logs and manages free-access time slots remotely through an online portal without the need for dedicated software or site visits.
How it works
The system uses a proximity reader installed at the door that communicates with a central relay card and transmission module. When authorized credentials are presented, the door unlocks. All user management—including adding or revoking access—is handled remotely via GSM network through an online portal, enabling instant updates without physically accessing the device.
