Usage

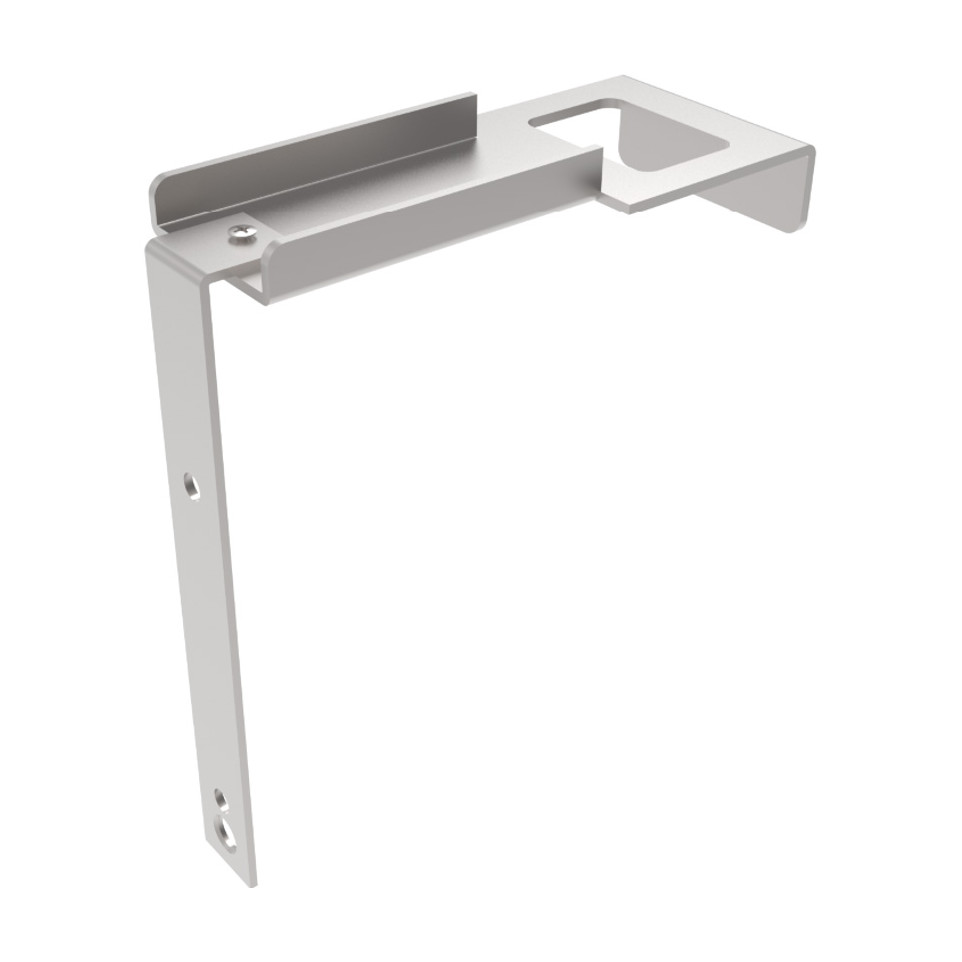

The JB-D-CB200 lower wall bracket is designed for secure mounting and load transfer in facade and window installations, providing structural support at the base of assemblies in building construction.
Advantages
- Certified for transferring large loads safely in wall and window assemblies
- Manufactured from non-combustible, galvanized steel to meet fire safety standards (DIN 4102-1 class A)
- Compatible with multiple frame materials, wall substrates, and frame extensions
- Simplifies installation with stable bearing surfaces and height adjustment using standard spacers
- Burglar-resistant design offers improved security for mounted elements
Specifications
- Design: Rigid steel bracket with a flat bearing surface; enables point-load transfer; allows cantilevering up to 150 mm if required[1]
- Materials: S350 or S355 galvanized steel; corrosion-resistant finish (GD Z275)
- Compliance: Fire classification DIN 4102-1 class A (non-combustible); tested to National Technical Approval Z-14.4-806, ift certification[1]
- Main Dimensions: Length—200 mm (nominal); thickness—typically ranges from 2.5–3 mm depending on exact model[1]
- Differentiators: High load-carrying capacity suitable even for weak substrates like hollow bricks or aerated concrete[1]

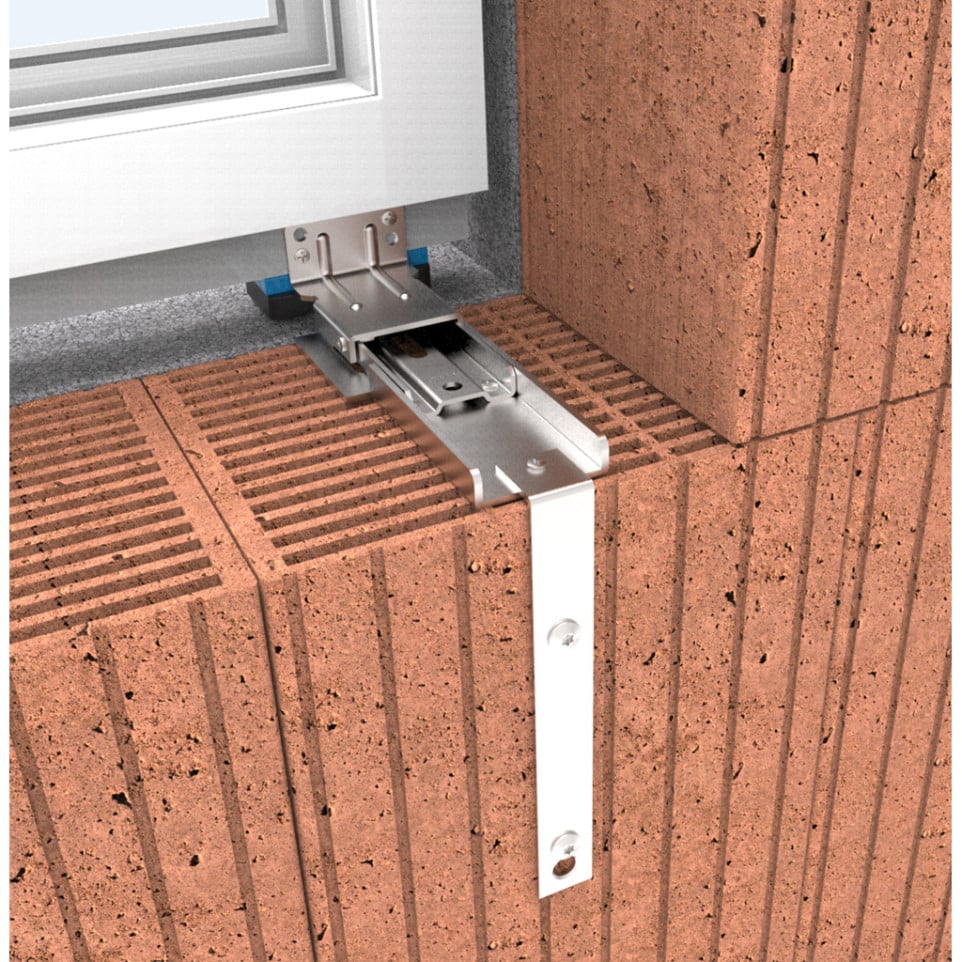

How it works
The lower wall bracket is anchored at the base of a facade or window system. It transmits static loads directly into the building structure through its rigid steel body. Height can be precisely adjusted during installation using commonly available spacers for optimal alignment before final fixing.
