Usage

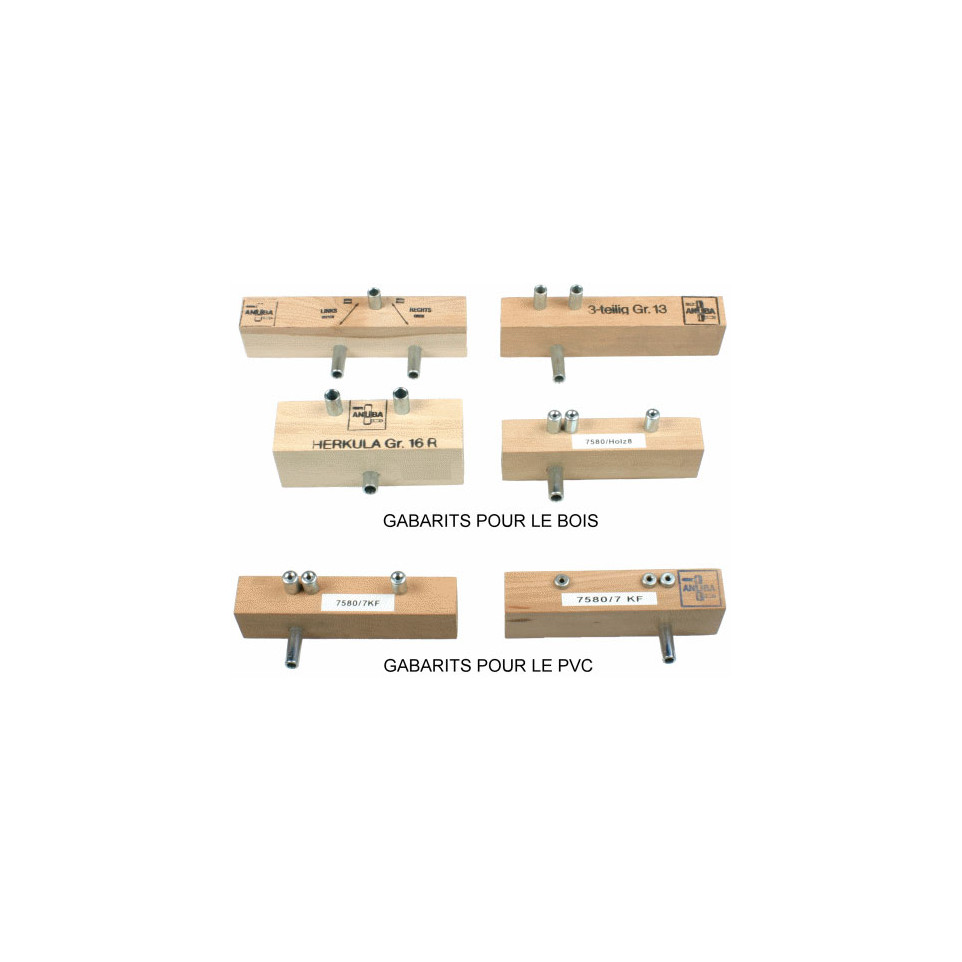

The complete template for 2 Anuba pins Ø8.5mm is designed to accurately position hinge pins for the installation of Anuba hinges on doors or frames, ensuring correct alignment and secure fixing in woodworking or joinery projects.
Advantages
- Enables precise drilling and placement of Anuba hinge pins.
- Simplifies repetitive hinge installation tasks with consistent results.
- Includes a matching drill bit, striking and screwing key, and handle for immediate use.
- Reversible design adapts to left- or right-handed installations.
- Compatible with standard Ø8.5mm Anuba pin diameters; minor adjustment may be required for custom applications.
Specifications
- The kit comprises a durable template block, dedicated drill bit, striking/screwing key, and crank handle matched to Ø8.5mm pins.
- The materials are engineered to withstand repeated professional use; reversible functionality allows flexible setup on site.[1]
- Supports pin diameters of exactly Ø8.5mm; ensures alignment within manufacturing tolerances typical in precision joinery work.[1]
- Differentiating feature: all-in-one set consolidates tools required for the complete placement process (drilling through fitting).
How it works
The user places the template against the door or frame at the desired hinge location, secures it with a clamp if needed, then drills holes using the provided guide and bit. The included wrench and handle are used to screw or press-fit the hinge pins in place.[1]
