Usage

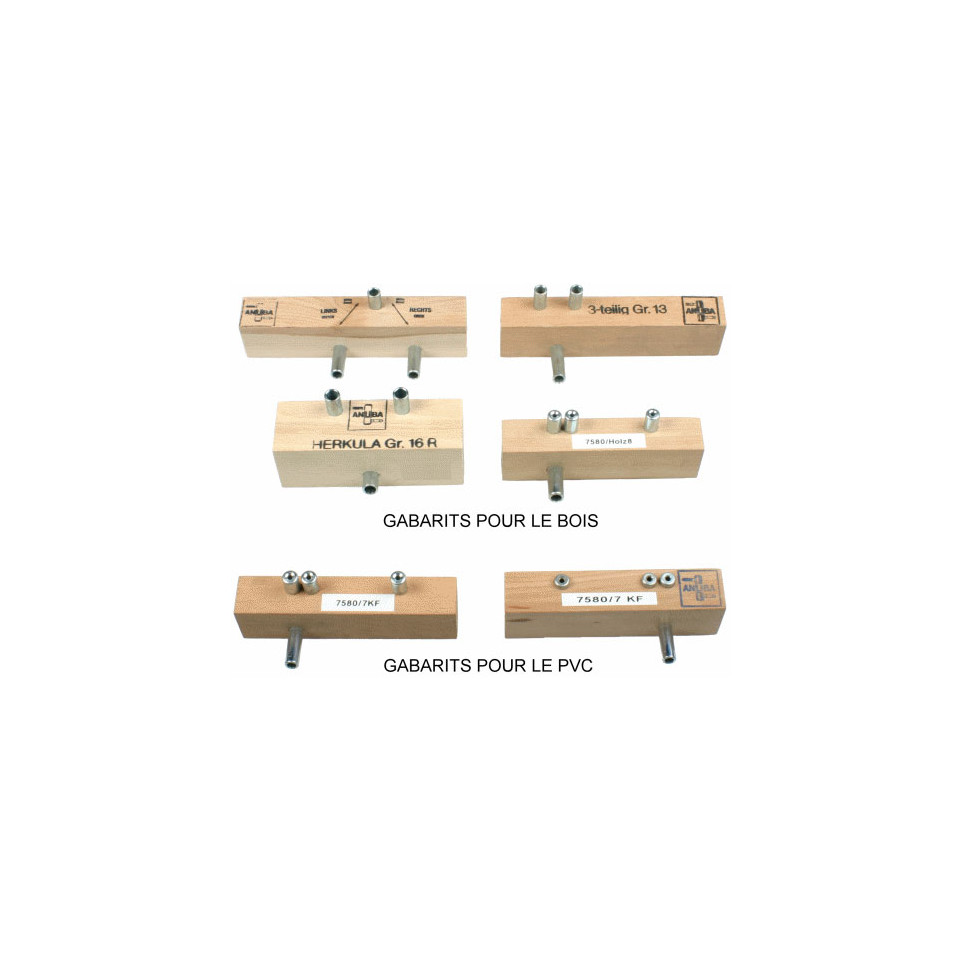

The complete template for HERKULA Ø16mm Anuba is designed for precise placement of hinge pins on rebated interior wooden doors, ensuring optimal alignment during installation or replacement.
Advantages
- Ensures accurate hinge positioning for Ø16 mm Herkula drill-in hinges
- Simplifies and speeds up door hardware installation tasks
- Minimizes risks of misalignment and repeated adjustments
- Compatible with frame profiles used in interior wooden doors up to 60 kg
- No maintenance required; delivers consistent long-term performance
Specifications
- Designed for use with HERKULA Anuba model 316 GL-RA hinges, roller diameter: 16 mm, steel construction with options such as nickel-plated or white zinc-plated finish[1][4]
- Bearing system uses a maintenance-free sliding bearing technology[1]
- Tolerates door weights up to approximately 60 kg per set when used as intended[1][4]
- Differentiator: Suitable for both DIN left and DIN right doors; specifically developed for frame profile applications in rebated interior doors[1]
How it works
This template guides drilling locations for installing HERKULA Ø16mm Anuba hinges. Position the jig on the door or frame, mark or drill at indicated points, then mount the hinges—ensuring precise alignment without trial-and-error adjustments.
