Usage

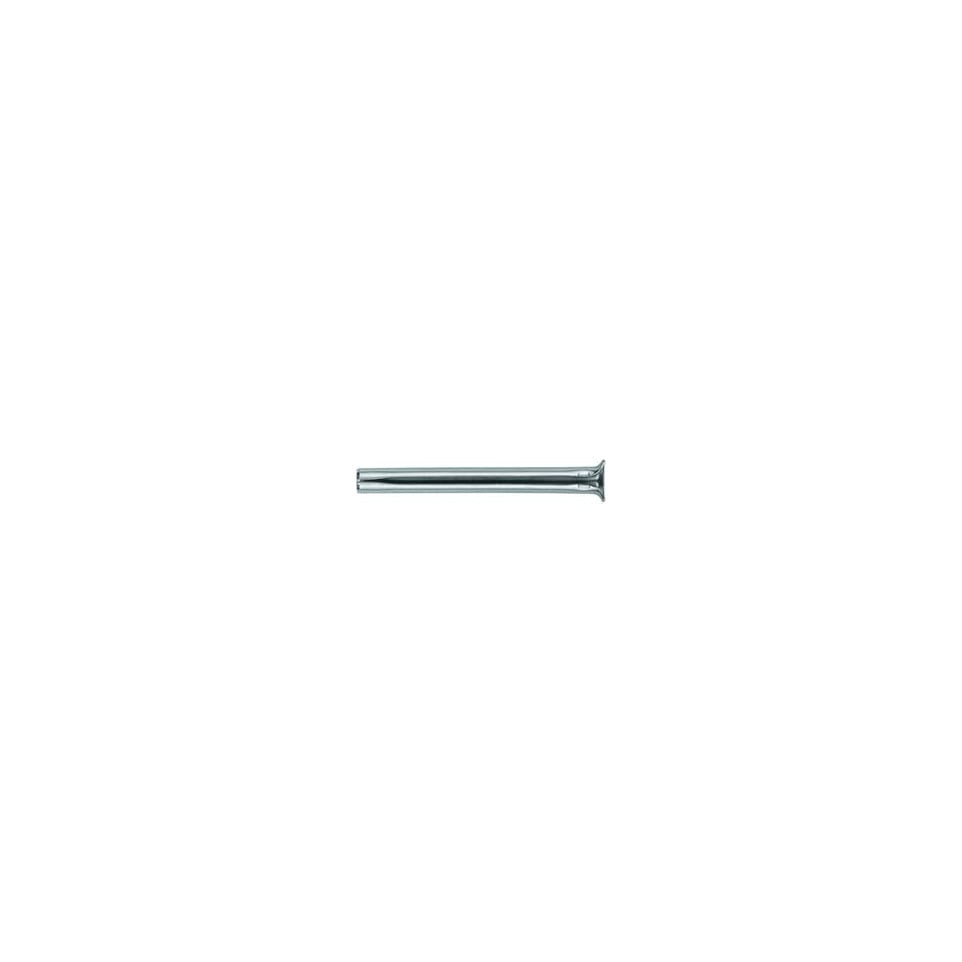

The Fischer FNH 6x80mm steel nail anchors are designed for secure fixing of framework, substructures, and profiles in concrete and solid masonry. Ideal for fast, reliable installation in interior or exterior construction projects.
Advantages
- Engineered for rapid push-through installation—no additional screws or plugs required.
- Dacromet-coated steel offers enhanced corrosion resistance, supporting use in damp environments.
- The expanding sleeve provides high holding power throughout its entire length.
- The integrated collar prevents slippage and ensures flush mounting against the surface.
- Special design limits installation errors due to over-tightening or incorrect driving depth.
Specifications
- Nail anchor with an expanding Dacromet-coated sprung steel sleeve for increased longevity and durability.
- Suitable for concrete (≥C20/25), natural stone with dense structure, solid brick, and sand-lime solid brick; complies with standard structural anchor requirements for non-cracked substrates.[3][8]
- Anchor diameter: 6 mm; overall length: 80 mm; minimum drill hole depth: at least 40 mm; maximum usable length: up to 50 mm per anchor.[3][8]
- Recommended load capacity in concrete (≥C20/25): up to approximately 0.55 kN per fixing.[8]
How it works
Drill a hole through the fixture into the base material, then insert the pre-assembled FNH anchor. Hammering expands the sleeve fully along its length within the substrate. The collar retains position while the steel nail locks securely.
