Usage

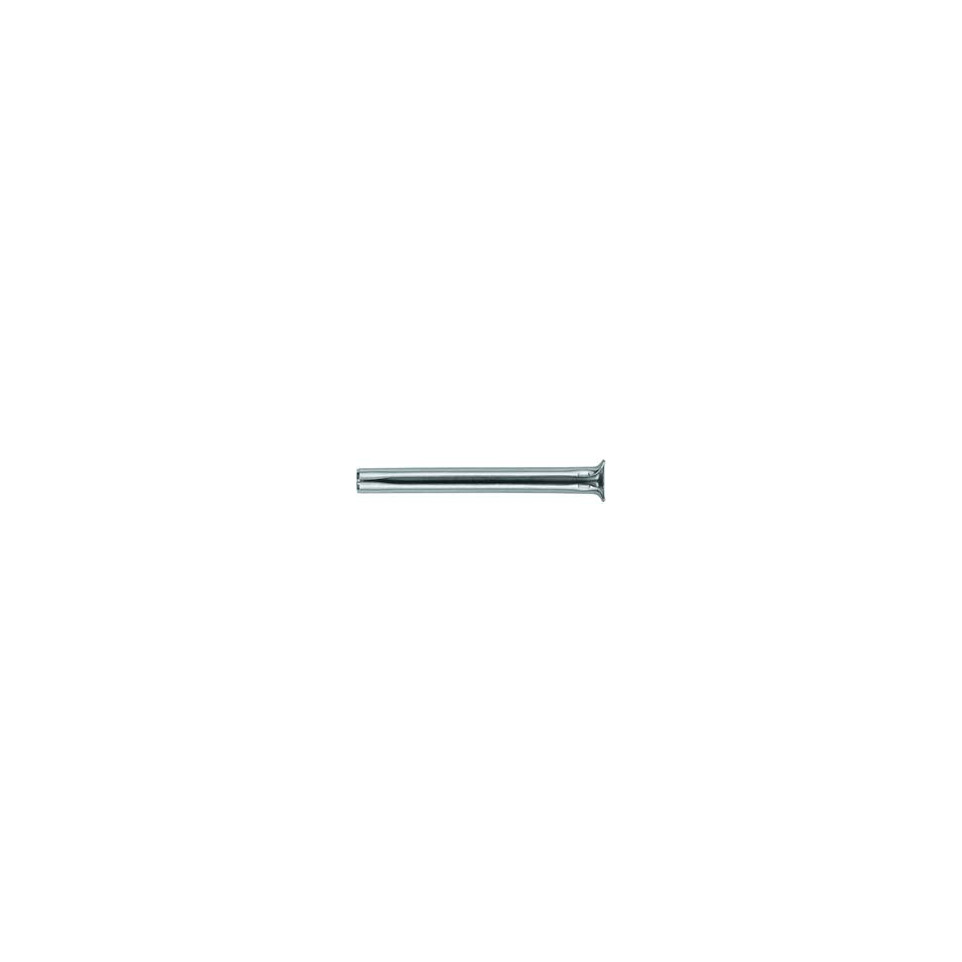

The Fischer FNH 8x150mm steel nail anchors are used for securely fixing framework, timber battens, and metal profiles to solid building materials such as concrete and masonry. Suitable for both interior fittings and temporary exterior applications.
Advantages
- No need for separate plugs or screws thanks to the one-piece design.
- Manufactured from corrosion-resistant, electro-galvanized steel for enhanced durability.
- Quick installation with a hammer saves time on the job site.
- The sleeve geometry allows easy insertion into drilled holes with minimal effort.
- Capable of fixing materials up to 110 mm thick in a single operation.
Specifications
- Design: One-piece spring sleeve made from electro-galvanized steel
- Main material: Steel, corrosion-resistant finish suitable for indoor use (temporary outdoor use)
- Total anchor length: 150 mm; Diameter: 8 mm; Effective anchorage depth: 40 mm; Maximum fixture thickness: up to 110 mm; Minimum drill hole depth required: 160 mm
- User-friendly through-type installation system ideal for repetitive fixings in construction frameworks; supplied in boxes of fifty pieces
How it works
The nail anchor is positioned through the fixture into a pre-drilled hole then driven flush using a hammer. As the anchor is inserted, its sleeve expands along its entire length to hold firmly within the substrate—with no additional components required.
