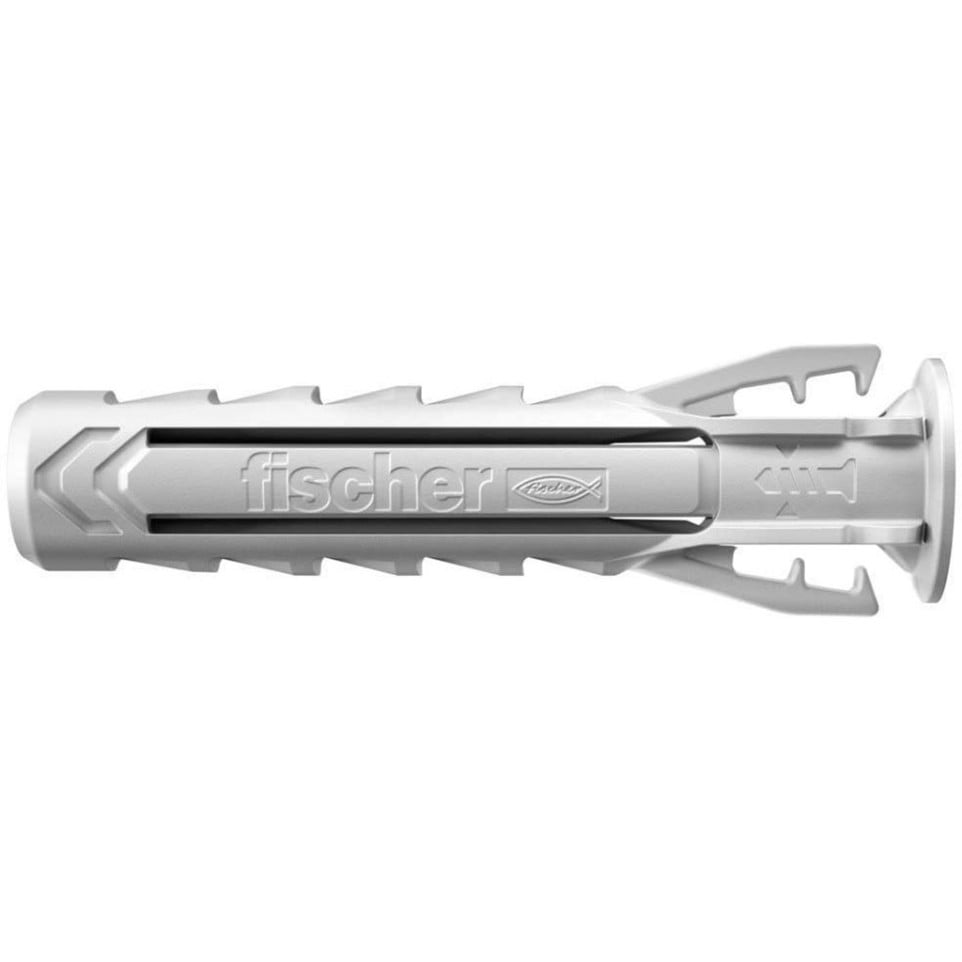

fischer Expansion Plug SX Plus 6 x 30 mm Box of 100 Pieces

Usage

The Fischer SX Plus 6x30mm expansion plugs are designed for secure anchoring in solid building materials such as concrete, sand-lime brick, and masonry. Ideal for various interior and exterior fixing tasks where a strong, reliable hold is required.

Advantages

• 4-way expansion ensures optimal force distribution and high load-bearing values in both solid and perforated materials.
• Innovative fixing wings enable pre-fixation of the screw for hands-free installation, increasing convenience especially in overhead applications.
• Narrow plug shape simplifies insertion into the drill hole, reducing installation effort by up to 30% compared to standard plugs.
• The expansion-free plug neck prevents damage to sensitive surfaces like tiles or plaster during screw tightening.
• Suitable for both pre-positioned and push-through installations, offering flexibility on-site. A slight drawback may be reduced performance in very soft hollow substrates due to its design focus on solids.

Specifications

• Made from high-quality nylon (plastic) with integrated special fixing wings technology for enhanced grip.[1][2]
• Nylon construction provides durability and long-term resistance against aging or environmental influences; conforms to industry standards for expansion anchors.[1]
• Sized at Ø6 mm diameter by 30 mm anchor length; fits wood and chipboard screws of Ø4.0–5.0 mm; minimum drill hole depth: 40 mm; supplied as a box of 100 pieces.[1]
• Differentiating features include innovative pre-fixation capability, four-way expansion mechanism, smooth collar to prevent unwanted surface stress, and suitable use with a broad range of standard fixtures.[1][2]

How it works

The SX Plus plug is inserted into a drilled hole after which its special wings secure the screw in place before tightening. As the screw is driven in, the plug expands laterally within the substrate’s cavity structure—anchoring securely without stressing surface materials.[1][2]
