Product

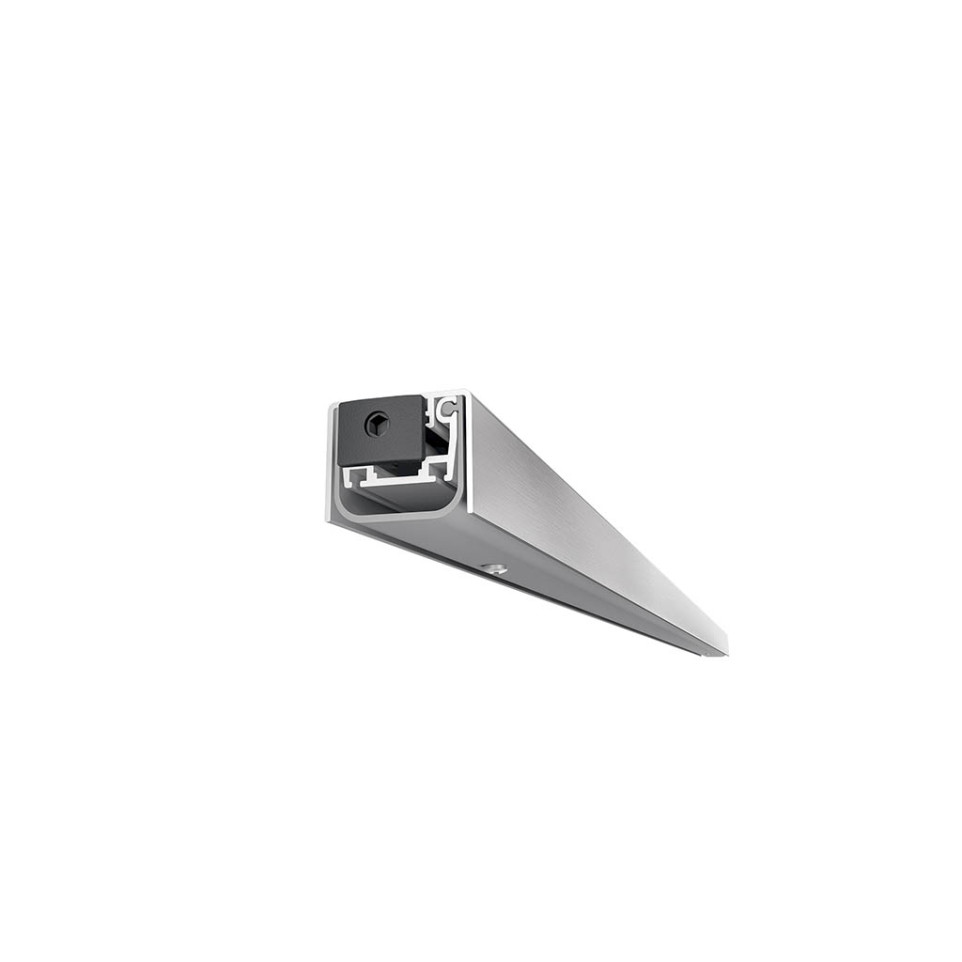

Automatic baseboard for doors, length 1230mm, designed to seal gaps at the bottom of the door in residential, commercial, or industrial environments. Enables improved acoustic, thermal, and fire protection.
Specifications
- The mechanism features rigid linkages in glass fiber-reinforced nylon for consistently uniform pressure on any floor type.
- Constructed for doors made of PVC, aluminum, or security materials.
- Push-button actuator in nylon, rounded and adjustable using a 3 mm hex key.
- Single-extruded thermoplastic fire-resistant seal; certified for 120 minutes fire resistance (BS EN 1634-1-:2000).
- Mobile internal profile descends with a controlled guillotine motion.
- Lateral bracket system for secure mounting.
- Maximum size reduction allowed: 150 mm.
Usage
The automatic baseboard operates when the door closes; the nylon push-button compresses against the frame or stopper, engaging the linkages to lower the internal profile. The thermoplastic seal contacts the floor evenly, effectively closing the gap along the entire door width.
FAQ
-
What types of doors is this baseboard compatible with?
Compatible with PVC, aluminum, or steel security doors.
-
How is the activation achieved?
The device activates using a nylon push-button that depresses automatically when the door closes.
-
Can the length be adjusted to fit my door?
Yes, the unit can be shortened up to 150 mm to fit the required door width.
-
Is the sealing material fire-resistant?
Yes, the mono-extruded thermoplastic seal is fire-resistant and certified for 120 minutes.
-
How is the baseboard installed?
Mounting is performed using lateral fixation brackets included with the product.
