Automatic CCE ALU 2520 RF Skirting Board 930mm per piece

Product

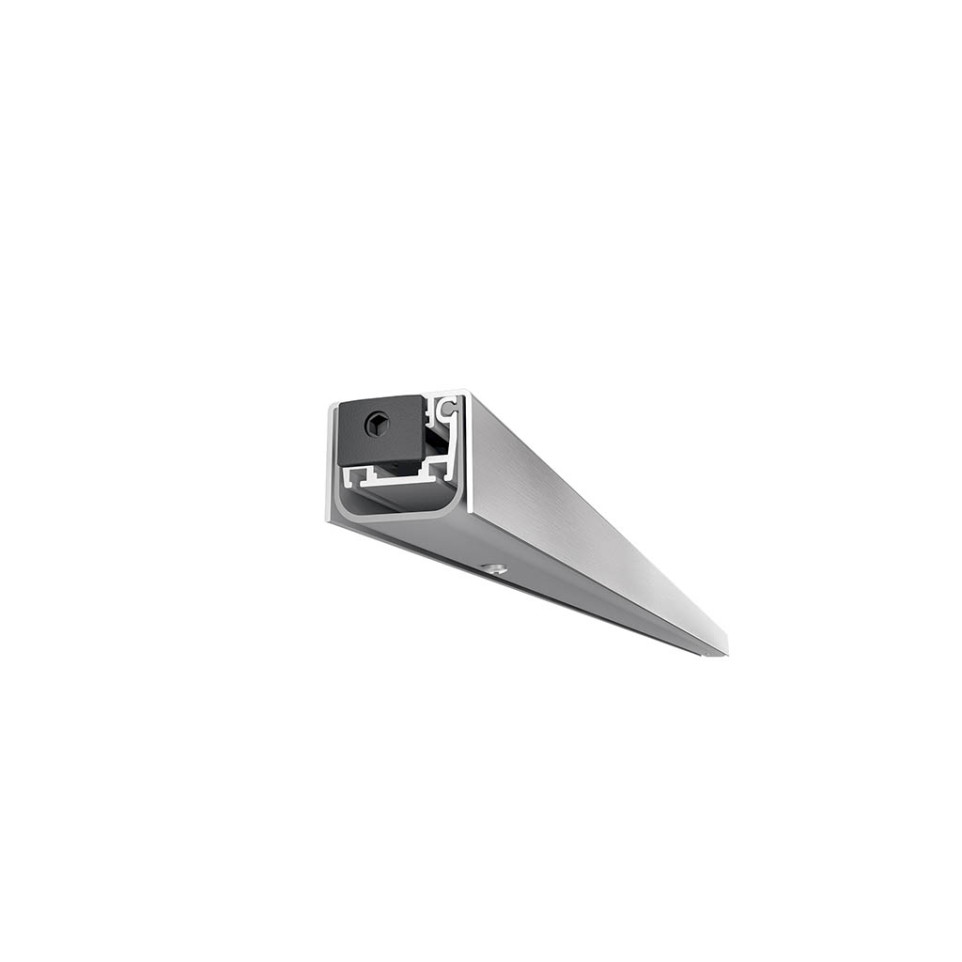

Automatic baseboard CCE ALU 2520 RF, 930mm length, designed for efficient sealing under doors in residential or commercial environments.

Specifications

• Constructed with rigid fiber-reinforced nylon linkages for maximum efficiency and uniform pressure on any floor type
• Push-button activation with a rounded nylon, hex-key adjustable head
• Fire-resistant mono-extruded thermoplastic seal
• Side mounting brackets for secure installation
• Certified 120-minute fire resistance (BS EN 1634-1:2000)
• Maximum shortening capability of 150mm
• Suitable for PVC, aluminum, and armored doors

Usage

This automatic baseboard operates by a push-button that is compressed when the door closes, deploying the internal guillotine mechanism which lowers the sealing profile. The fire-resistant seal makes full contact with the floor, efficiently closing gaps and improving insulation.

FAQ

1. What is the minimum and maximum door length compatible with this product?

   • The baseboard is suitable for doors up to 930mm wide and can be shortened by up to 150mm.

2. Is installation complicated?

   • The product comes with side mounting brackets for straightforward installation on various door types.

3. What material is the sealing gasket?

   • It is made from a mono-extruded fire-resistant thermoplastic.

4. Can the activation button be adjusted?

   • Yes, the rounded nylon push-button head is adjustable with a 3mm hex key.

5. What fire resistance certification does it comply with?

   • It offers up to 120 minutes of fire resistance per BS EN 1634-1:2000.
