Automatic CCE ALU 2520 Plinth 1330mm per piece

Automatic CCE ALU 2520 Plinth 1330mm per piece
Automatic CCE ALU 2520 Plinth 1330mm per piece
Automatic CCE ALU 2520 Plinth 1330mm...
Automatic CCE ALU 2520 Plinth 1330mm...

Estimated delivery date :  Friday 24 July
€59.76 HT
In stock

Ref : FGT-195413

Variantes

Automatic CCE ALU 2520 Plinth 1030mm per piece Automatic CCE ALU 2520 Plinth 1030mm per piece Automatic CCE ALU 2520 RF Plinth 1130mm per piece Automatic CCE ALU 2520 RF Plinth 1130mm per piece Automatic CCE ALU 2520 RF Plinth 1230mm per piece Automatic CCE ALU 2520 RF Plinth 1230mm per piece Automatic CCE ALU 2520 RF Plinth 1430mm / pc Automatic CCE ALU 2520 RF Plinth 1430mm / pc Automatic CCE ALU 2520 RF Plinth 430mm per piece Automatic CCE ALU 2520 RF Plinth 430mm per piece Automatic CCE ALU 2520 RF Skirting Board 930mm per piece Automatic CCE ALU 2520 RF Skirting Board 930mm per piece Automatic Drop Seal CCE ALU 2520 RF 730mm per piece Automatic Drop Seal CCE ALU 2520 RF 730mm per piece Automatic Plinth CCE ALU 2520 RF 630mm / pc Automatic Plinth CCE ALU 2520 RF 630mm / pc Automatic Skirting CCE ALU 2520 RF 830mm per piece Automatic Skirting CCE ALU 2520 RF 830mm per piece CCE ALU 2520 RF Automatic Skirting Board 530mm per piece CCE ALU 2520 RF Automatic Skirting Board 530mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

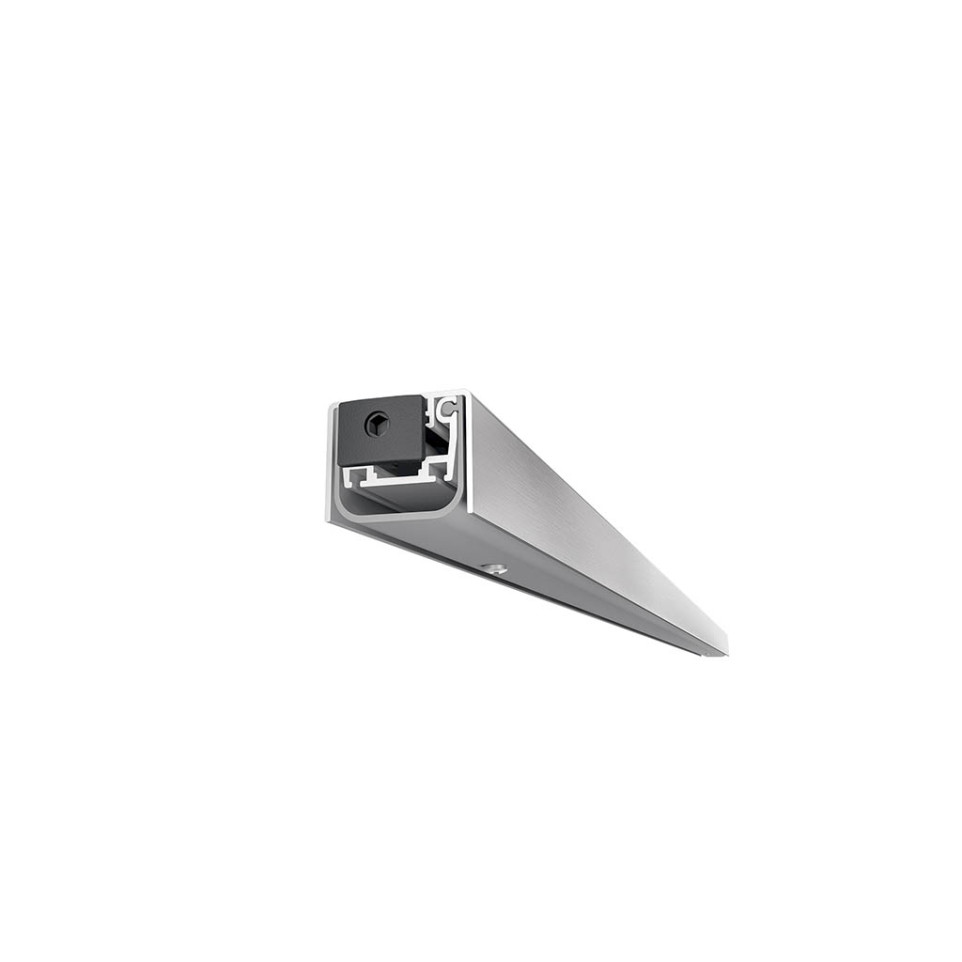

Automatic baseboard for doors, model CCE ALU 2520 RF, length 1330mm. Designed to provide efficient sealing between the door and floor for PVC, aluminum, and armored doors.

Specifications

  • Features rigid linkages in glass-fiber reinforced nylon
  • Push-button mechanism with adjustable, rounded nylon head (adjustment with 3mm hex key)
  • Internal mobile profile for uniform floor pressure
  • Mono-extruded thermoplastic fire-retardant seal
  • Lateral bracket mounting system
  • Fire resistance rating: 120 minutes (BS EN 1634-1:2000)
  • Maximum shortening: 150mm

Usage

When the door is closed, the push-button presses against the frame or a stop, activating the internal mechanism. The mobile profile descends with a guillotine motion, first on the push-button side then the opposite, sealing the door-finished length against the floor to block drafts, noise, and smoke.

FAQ

  1. What type of doors is this baseboard compatible with? Designed for PVC, aluminum, and armored doors.

  2. How is the baseboard installed? Mounted with lateral brackets using standard fasteners; adjustment via a 3mm hex key.

  3. How does the sealing mechanism work? The push-button, when pressed by a closed door or external stop, triggers the internal linkages to lower a seal that contacts the floor evenly.

  4. What is the fire resistance capability? Certified for up to 120 minutes fire resistance according to BS EN 1634-1:2000.

  5. Can the length be adjusted if necessary? The unit allows shortening by up to 150mm for custom fit.

mvm-dt-2025-07-20

See more

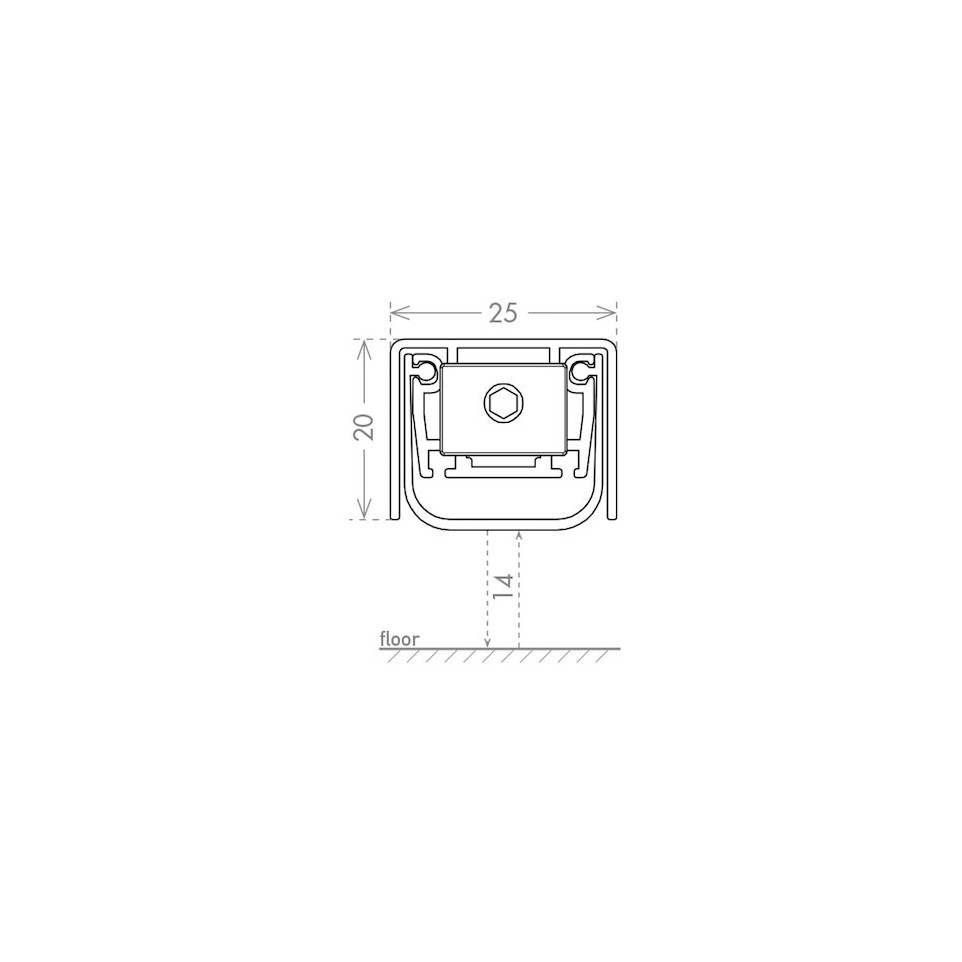

Product Details

Brand CCE
Length (in mm) 1.330
Stroke ( mm ) 14
Fire resistance (min) 120,00
Noise level (dBA) 50,00
Groove width (mm) 25,00
FGT-195413
