CCE ALU 2520 RF Automatic Skirting Board 530mm per piece

CCE ALU 2520 RF Automatic Skirting Board 530mm per piece
CCE ALU 2520 RF Automatic Skirting Board 530mm per piece
CCE ALU 2520 RF Automatic Skirting...
CCE ALU 2520 RF Automatic Skirting...

Estimated delivery date :  Friday 24 July
€39.86 HT
In stock

Ref : FGT-195405

Variantes

Automatic CCE ALU 2520 Plinth 1030mm per piece Automatic CCE ALU 2520 Plinth 1030mm per piece Automatic CCE ALU 2520 Plinth 1330mm per piece Automatic CCE ALU 2520 Plinth 1330mm per piece Automatic CCE ALU 2520 RF Plinth 1130mm per piece Automatic CCE ALU 2520 RF Plinth 1130mm per piece Automatic CCE ALU 2520 RF Plinth 1230mm per piece Automatic CCE ALU 2520 RF Plinth 1230mm per piece Automatic CCE ALU 2520 RF Plinth 1430mm / pc Automatic CCE ALU 2520 RF Plinth 1430mm / pc Automatic CCE ALU 2520 RF Plinth 430mm per piece Automatic CCE ALU 2520 RF Plinth 430mm per piece Automatic CCE ALU 2520 RF Skirting Board 930mm per piece Automatic CCE ALU 2520 RF Skirting Board 930mm per piece Automatic Drop Seal CCE ALU 2520 RF 730mm per piece Automatic Drop Seal CCE ALU 2520 RF 730mm per piece Automatic Plinth CCE ALU 2520 RF 630mm / pc Automatic Plinth CCE ALU 2520 RF 630mm / pc Automatic Skirting CCE ALU 2520 RF 830mm per piece Automatic Skirting CCE ALU 2520 RF 830mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

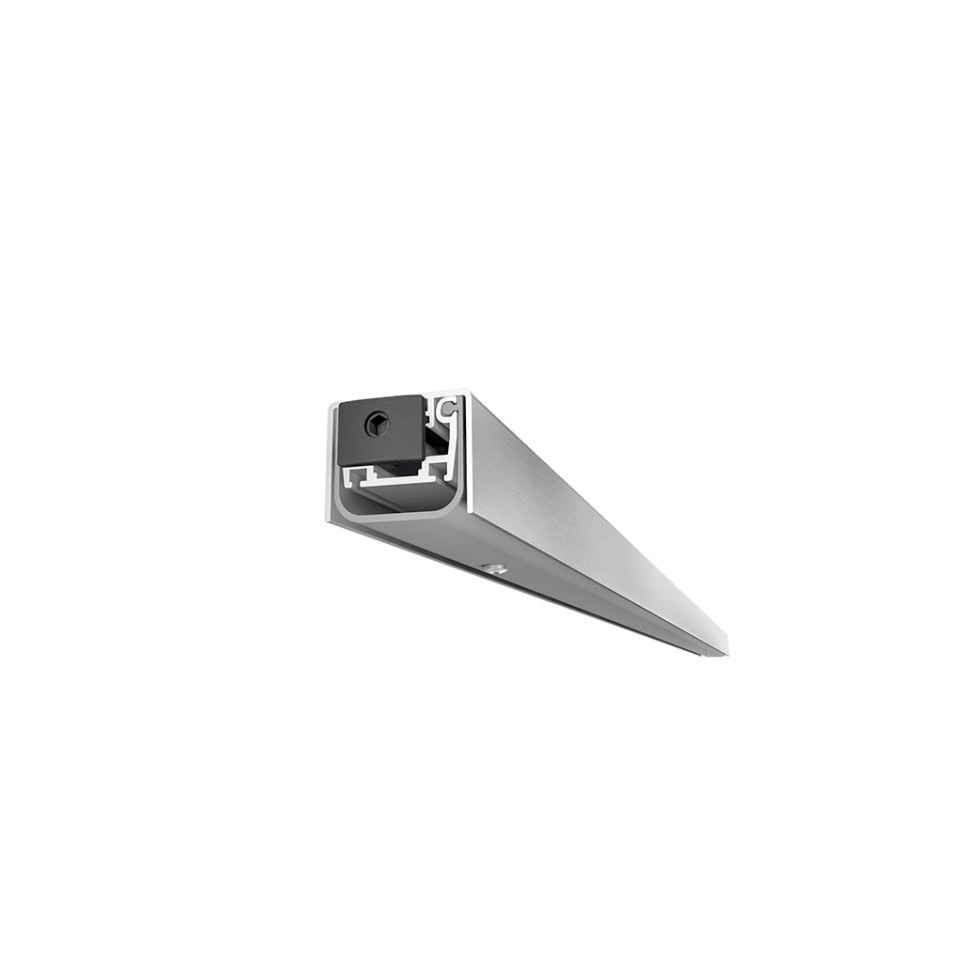

Automatic baseboard CCE ALU 2520 RF 530mm is engineered for optimal sealing between doors and floors, ensuring consistent pressure and efficiency across various flooring types. Suitable for use on PVC, aluminium, and armored doors.

Specifications

  • Constructed with rigid nylon linkages reinforced with fiberglass for maximum strength.
  • Features a mobile internal profile and thermoplastic fire-rated mono-extruded sealing strip.
  • Push button mechanism made of nylon, adjustable by 3 mm hex key.
  • Lateral mounting brackets for secure installation.
  • Fire resistance: up to 120 minutes, compliant with BS EN 1634-1:2000.
  • Maximum shortening capacity: 150 mm.

Usage

The baseboard activates automatically when the door closes, with a push button compressing against the door frame to trigger the descent of the internal profile. This guillotine-style movement ensures the sealing strip fully adheres to the entire door length for effective gap sealing.

FAQ

  1. What door materials is this baseboard compatible with?
    It is designed for PVC, aluminium, and armored doors.

  2. How is the push button adjusted?
    The push button head is adjustable using a 3 mm hex key.

  3. Does this product provide fire resistance?
    Yes, it offers up to 120 minutes of fire resistance according to BS EN 1634-1:2000.

  4. How is the baseboard installed?
    It is affixed using supplied lateral mounting brackets.

  5. Can the length of the baseboard be shortened?
    Yes, a maximum reduction of 150 mm is possible.

mvm-dt-2025-07-20

See more

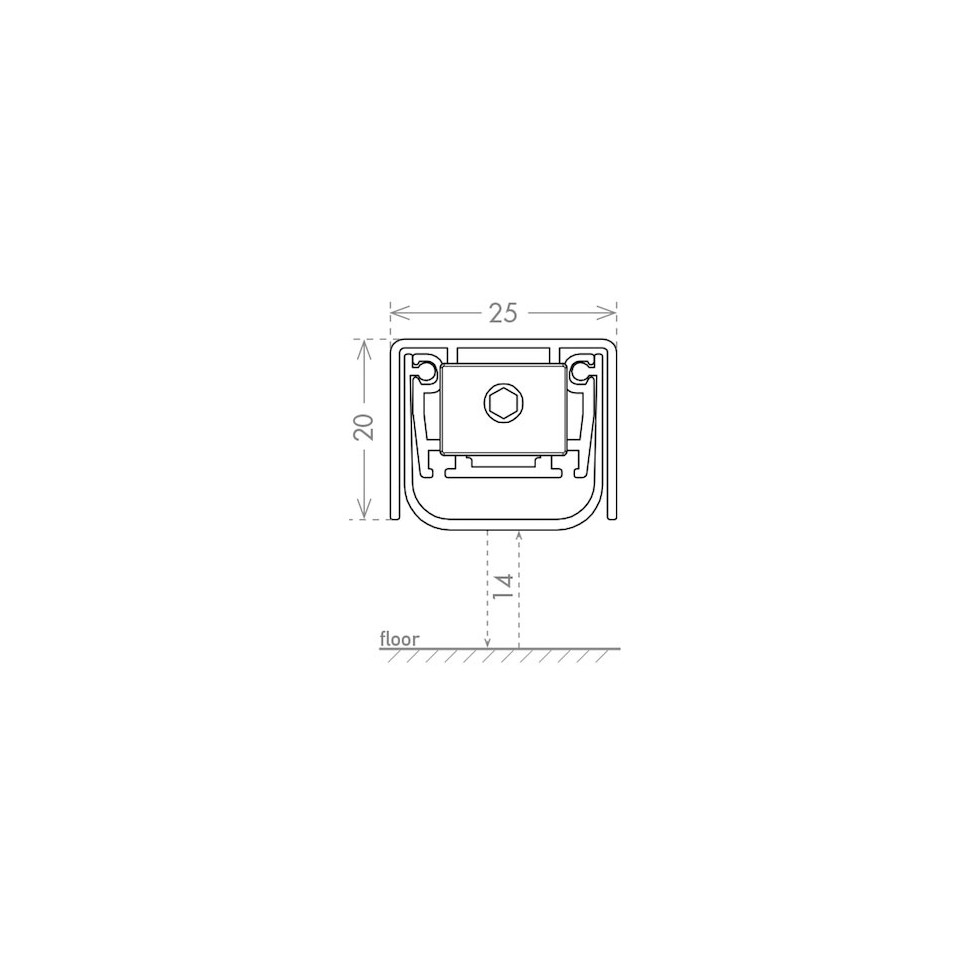

Product Details

Brand CCE
Length (in mm) 530
Stroke ( mm ) 14
Fire resistance (min) 120,00
Noise level (dBA) 50,00
Groove width (mm) 25,00
FGT-195405
