Product

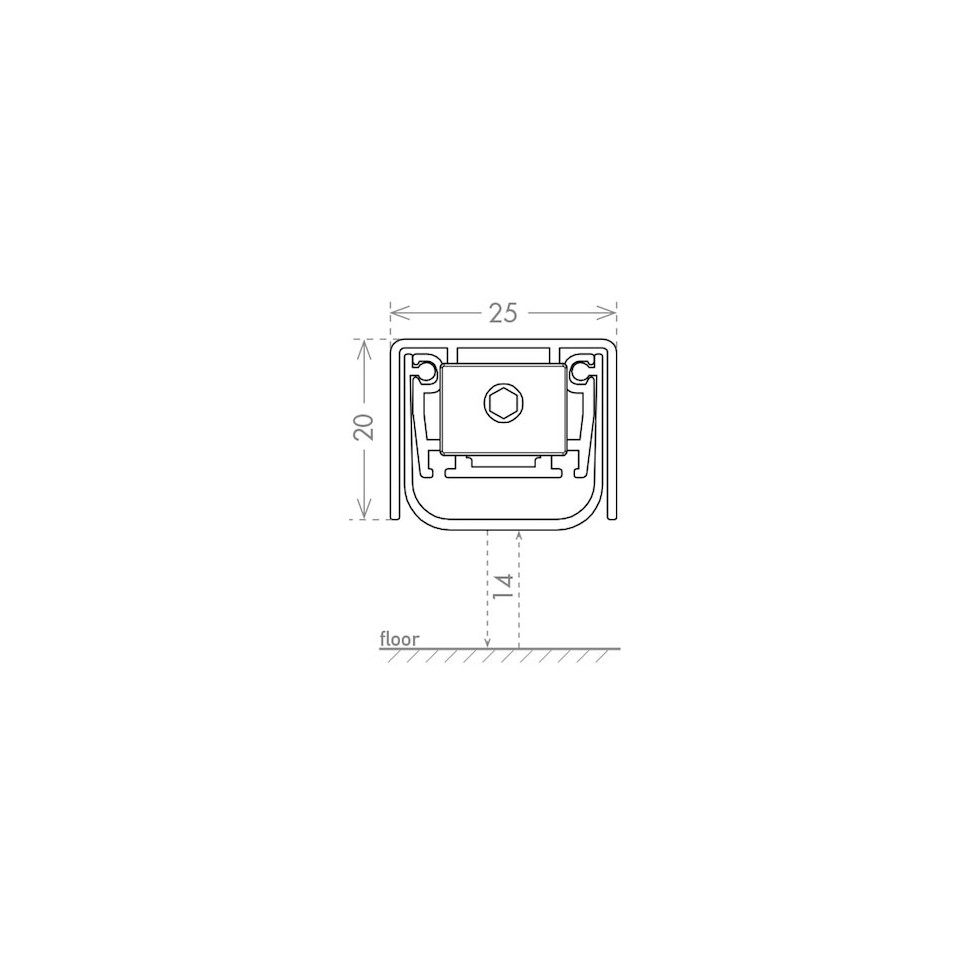

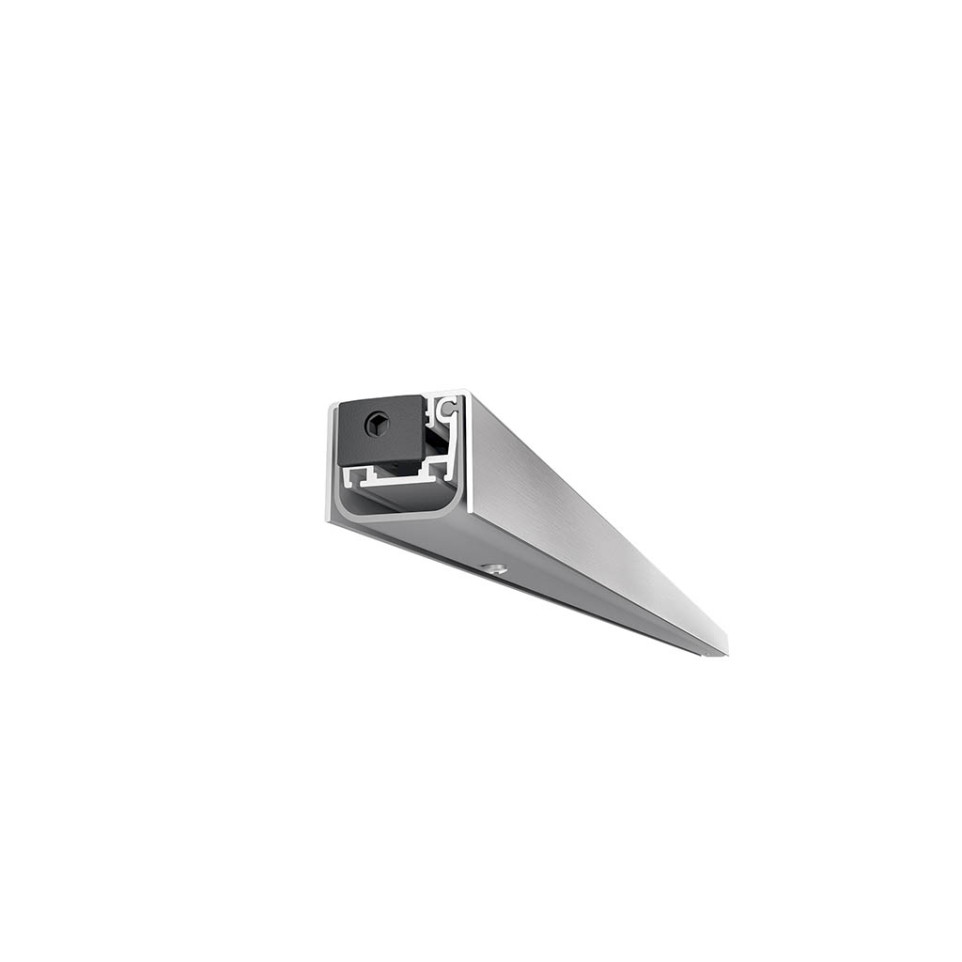

The CCE ALU 2520 RF automatic baseboard, length 1430mm, is designed for effective door-bottom sealing in residential or commercial environments. It provides airtight isolation between door and floor, adaptable for PVC, aluminum, and reinforced doors.
Specifications
- Features a rigid nylon connecting rod system reinforced with fiberglass for strong, uniform pressure on all floor types
- Integrated push-button in rounded nylon, adjustable with a 3mm hex key
- Monolithic, flame-retardant thermoplastic sealing strip
- Lateral mounting brackets for secure installation
- Fire resistance up to 120 minutes in accordance with BS EN 1634-1-:2000 standards
- Maximum trim (shortening) capability of 150mm
Usage
The automatic baseboard operates by a push-button that activates when the door closes against the frame or external stop. This releases internal rods, lowering the seal in a controlled “guillotine” movement to fully contact the floor. The seal eliminates drafts, dust, and noise by closing the gap under the door along its full length.
FAQ
-
What types of doors can this automatic baseboard be installed on?
It is suitable for PVC, aluminum, and armored (security) doors.
-
How is the seal activated and adjusted?
Activation occurs automatically when the door closes; the push-button can be adjusted using a 3mm hex key for precise fit.
-
Does the product provide fire resistance?
Yes, it offers certified fire resistance for up to 120 minutes according to BS EN 1634-1-:2000.
-
What is the maximum amount that the baseboard can be shortened?
It can be trimmed by up to 150mm to fit different door widths.
-
How is the seal attached to the door?
Attachment uses robust lateral brackets for secure and reliable mounting.
