Set of 2 White DM Furniture Suspension Brackets max.65kg / pc
€4.32
In stock
Product
The Hettich RV 7 D rear panel connector is a robust hardware solution for securely attaching cabinet rear panels of varying thicknesses. Designed for interior installation, it simplifies cabinet assembly, allowing construction directly from the wall.
Specifications
- Nickel-plated die-cast zinc for corrosion resistance and durability
- Suitable for System 32 installation with 5 mm drilling diameter
- Height adjustable by ±1 mm via oblong hole

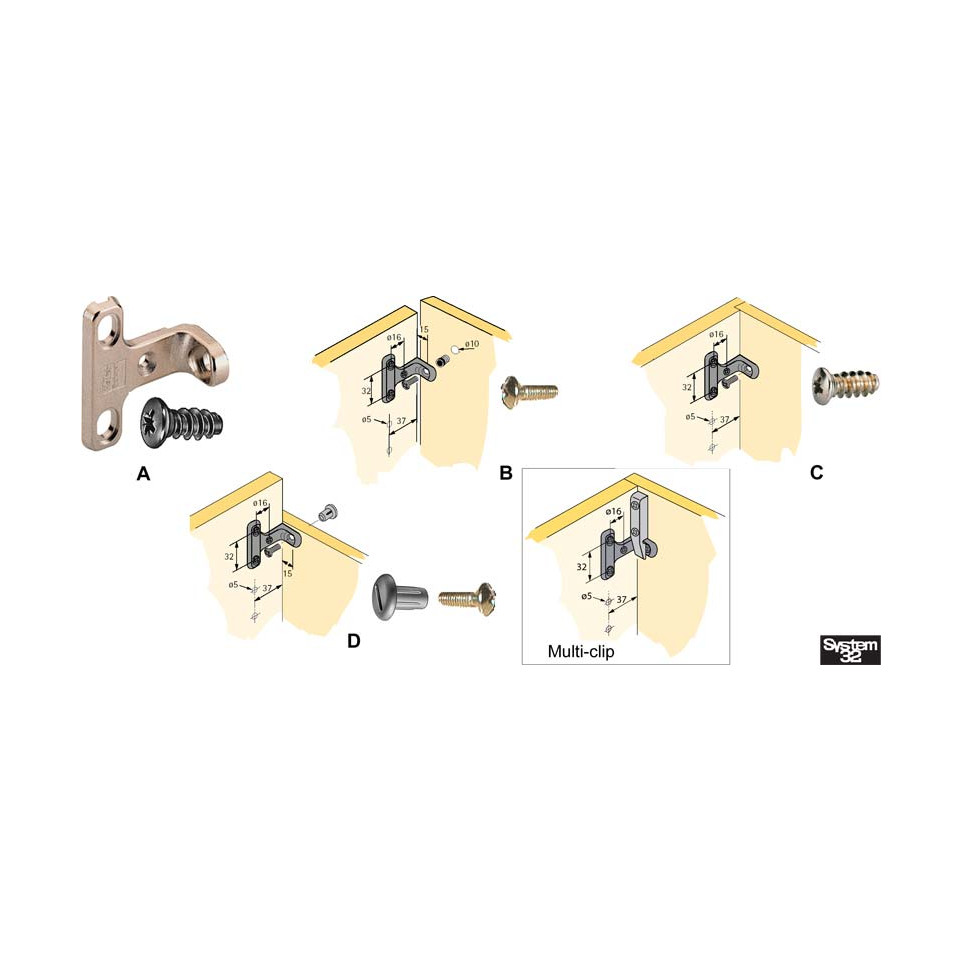

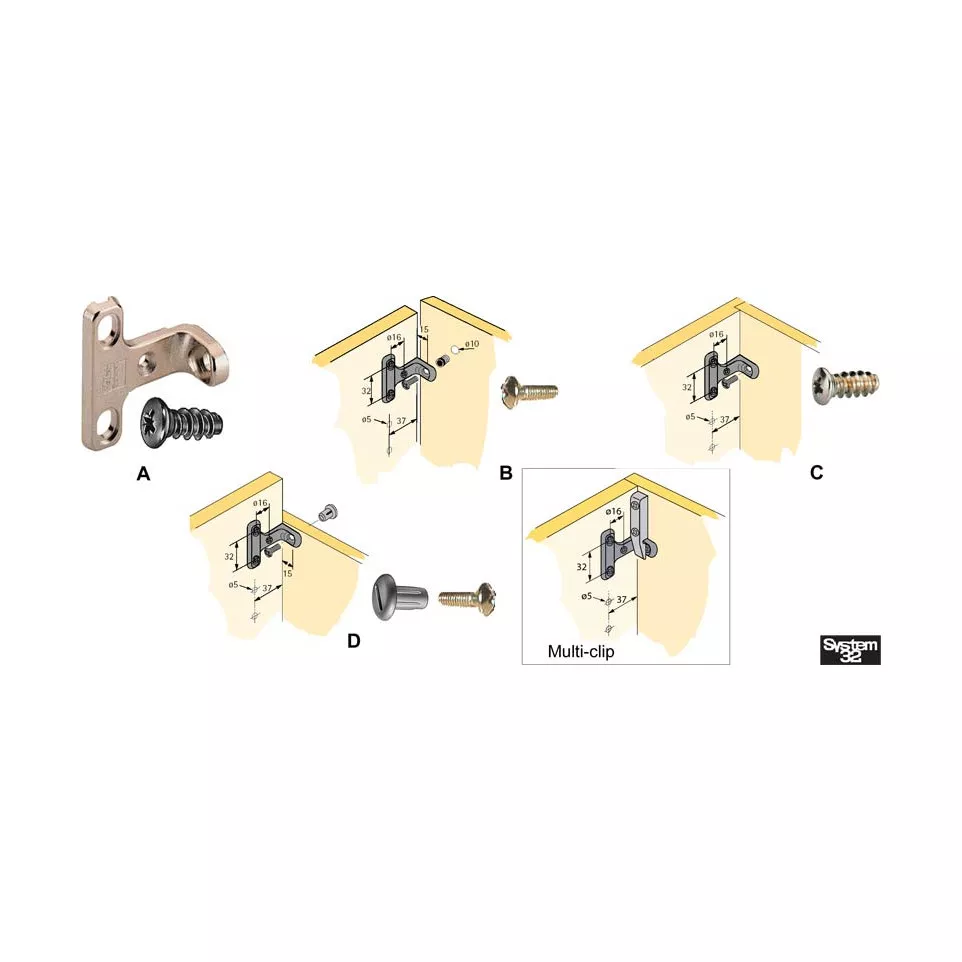

- Compatible with multiple fastening methods: countersunk screws, M6 x 12 panhead screws (DIN 7985), threaded cap or socket, direct-fixing screws, or Multi-Clip
- Designed only for indoor use under typical room conditions
Usage
The RV 7 D rear panel connector is mounted from inside the cabinet, securing the rear panel with chosen fasteners. Height adjustment is possible for optimal alignment. Its design supports versatile installation methods and enables quick, wall-based cabinet assembly.
FAQ
-
What panel thicknesses can the RV 7 D accommodate?
It is suitable for all common rear panel thicknesses used in cabinetry. -
What fasteners are compatible with this connector?
It supports countersunk screws, M6 x 12 panhead screws (DIN 7985) with threaded caps or sockets, direct-fixing screws, and the Multi-Clip system. -
Is height adjustment possible after installation?
Yes, height can be adjusted by ±1 mm using the oblong hole. -
Can this connector be used for wall-mounted cabinets?
Yes, its design facilitates off-the-wall and direct mounting, streamlining cabinet installation against walls. -
Is the RV 7 D suitable for outdoor or high-humidity environments?
No, the connector is intended solely for indoor use in standard conditions.
