Argenta Magnetic Catch for Pivotica Trim / pc
€52.18
In stock
Product

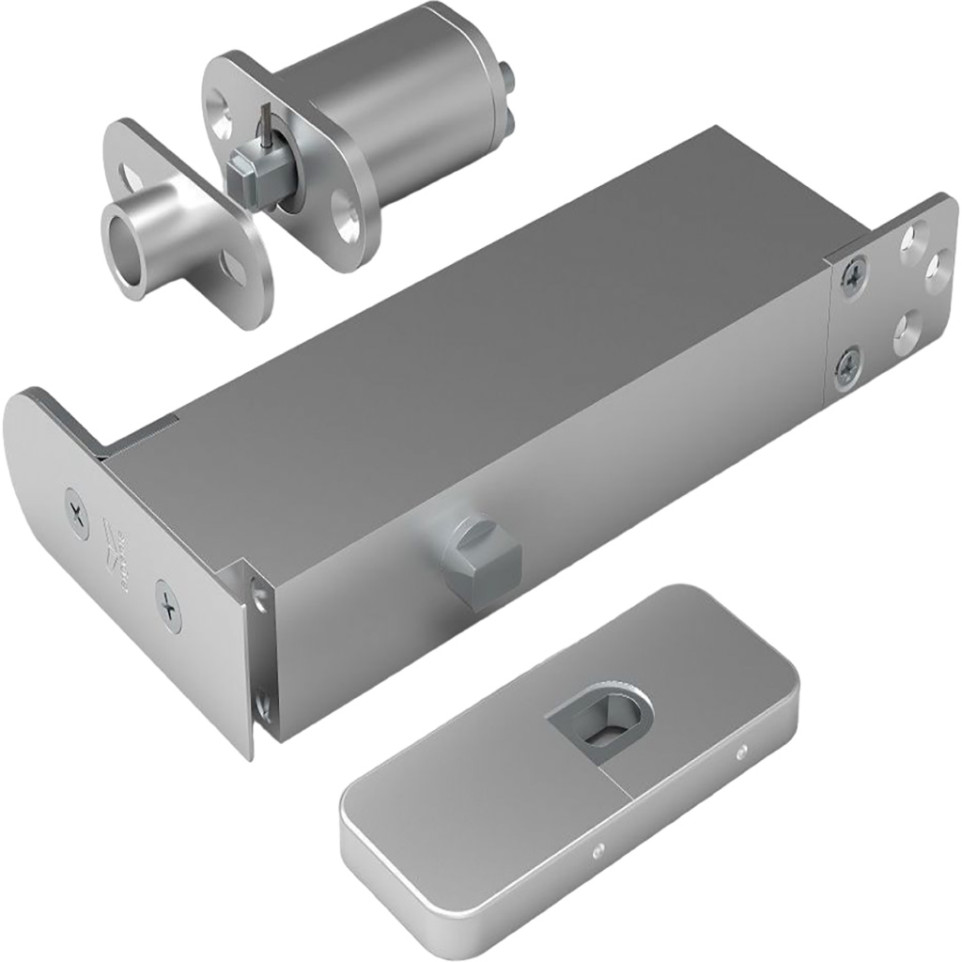

The Argenta Pivotica Pro 100 Kg with 90° hold is a concealed pivot door closer designed for interior doors up to 100 kg and 3 meters high. Perfect for modern homes, public buildings, or offices, it enables minimalist, flush-to-wall door designs without visible frames.
Specifications
- Invisible pivot hinge made from rust-resistant materials, with a compact, built-in design for seamless integration.
- Complies with EN 1154 standards; suitable for floor-to-ceiling doors and compatible with underfloor heating.
- Supports doors up to 100 kg and 3000 mm in height; maximum width 1000 mm from the pivot axis, or up to 2000 mm with central axis placement.
- Minimum door thickness: 40 mm.
- Door opens up to 150° in either direction; fixed hold positions at +90°/-90°.
- Adjustable bottom plate: width -3/+3 mm, depth -3/+3 mm, and alignment -4/+4°.
- Active damper with two-speed closing control for smooth, automatic return to zero position.
- Choice of left or right hold open; free selection of pivot (rotation) point.
- Not suitable for revolving door functions (no 360° rotation).
Usage
Install the Pivotica Pro either at the edge or center of the door, using the supplied mounting brackets or fixing plate. The pivot allows doors to open up to 150°, with an automatic, damped return to the closed position and manual hold at 90°. Its concealed system aligns the door flush with the wall, ideal for contemporary interior aesthetics.
FAQ
-
What door sizes are compatible with the Pivotica Pro 100 Kg?
It supports doors up to 100 kg, 3000 mm high, and 1000 mm wide from the axis, or 2000 mm wide with central axis placement. -
Is the Pivotica Pro suitable for floor-to-ceiling doors?
Yes, it is designed for floor-to-ceiling installations and works with underfloor heating systems. -
Can the door remain open at a fixed angle?
Yes, the Pivotica Pro provides fixed hold positions at +90° and -90° in both directions. -
Does this pivot hinge require a door frame?
No frame is needed; the mechanism is fully concealed and aligns the door with the wall for a frameless finish. -
Is the system adjustable after installation?
Yes, the base plate allows for width, depth, and alignment adjustments to fine-tune the door’s position.
