Insulating Mass 2300 0.5 kg for Floor Door Closer per Piece
€46.58
In stock
Usage

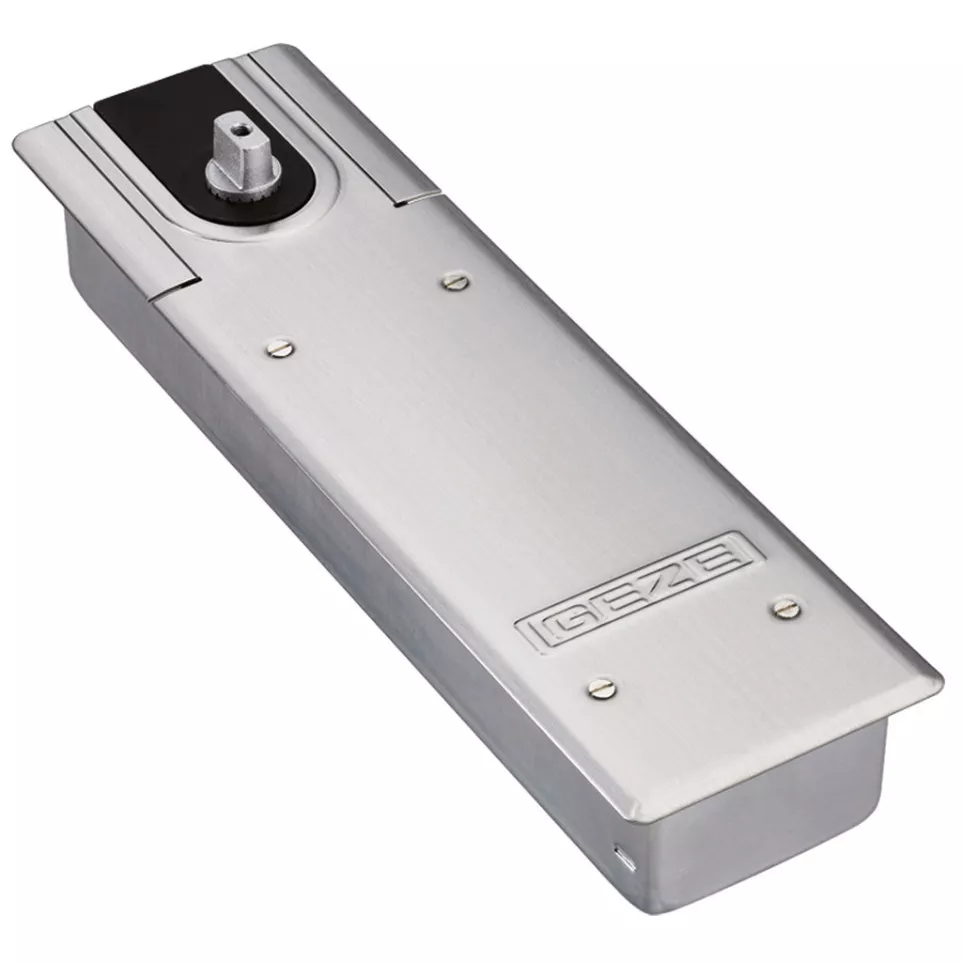

The Pivot de sol Geze TS 550 NV-F EN 3-6 droit DIN L is designed for concealed floor mounting on right-handed single-action doors, providing controlled and adjustable closing in commercial and public buildings.
Advantages
- Continuously adjustable closing force EN 3-6, suitable for various door sizes and weights
- Compatible with heavy doors up to 300 kg and leaf widths up to 1400 mm
- All adjustments—closing speed, back check, delayed action—accessible from the top after installation
- Integrated back check protects against forceful opening, enhancing safety
- No visible hardware due to concealed floor installation; supplied without finishing plate (ordered separately)
Specifications
- Robust construction; floor-mounted closer body without hold-open function; dimensions: approximately 82 x 342 x 54 mm[1][7]
- Carries CE certification; conforms to EN1154 standard for fire protection door closers[1][7]
- Suits door leaves up to max. width of 1400 mm and weight up to max. of 300 kg; closing force continuously adjustable EN size range: EN3–EN6[1][4][7]
- Latching action, delayed closing speed, opening angle limit (max.170°) all individually adjustable from the top after installation[1][5][9]
- Suits right-hand (DIN L) single-action doors; delivered without cover plate[1]
How it works
The closer installs concealed in the floor beneath a right-handed single-action door. As the door is opened or closed, hydraulic mechanisms regulate its movement—speed and latching can be finely tuned—to ensure secure automatic closure while protecting against slamming or abrupt motion.[5][7]
