GEZE Compas Arm for TS 2000-4000 Silver / pc
€21.86
In stock
Usage
The Geze TS 4000 E door closer is designed for overhead installation on single-leaf fire and smoke protection doors in public, commercial, or industrial buildings. It ensures controlled automatic door closing with an integrated electric hold-open function for added convenience.
Advantages
- Suitable for left and right hand doors without conversion
- Variable adjustable closing force (EN1-6) adapts to different door weights and widths up to 1400 mm
- Electrohydraulic hold-open device allows flexible hold-open angles between 80°-175°
- Visual display aids quick verification of the selected closing force setting
- All main adjustments accessible from the front; requires electrical supply (24 V DC) for hold-open function, which may limit use in locations without power availability
Specifications

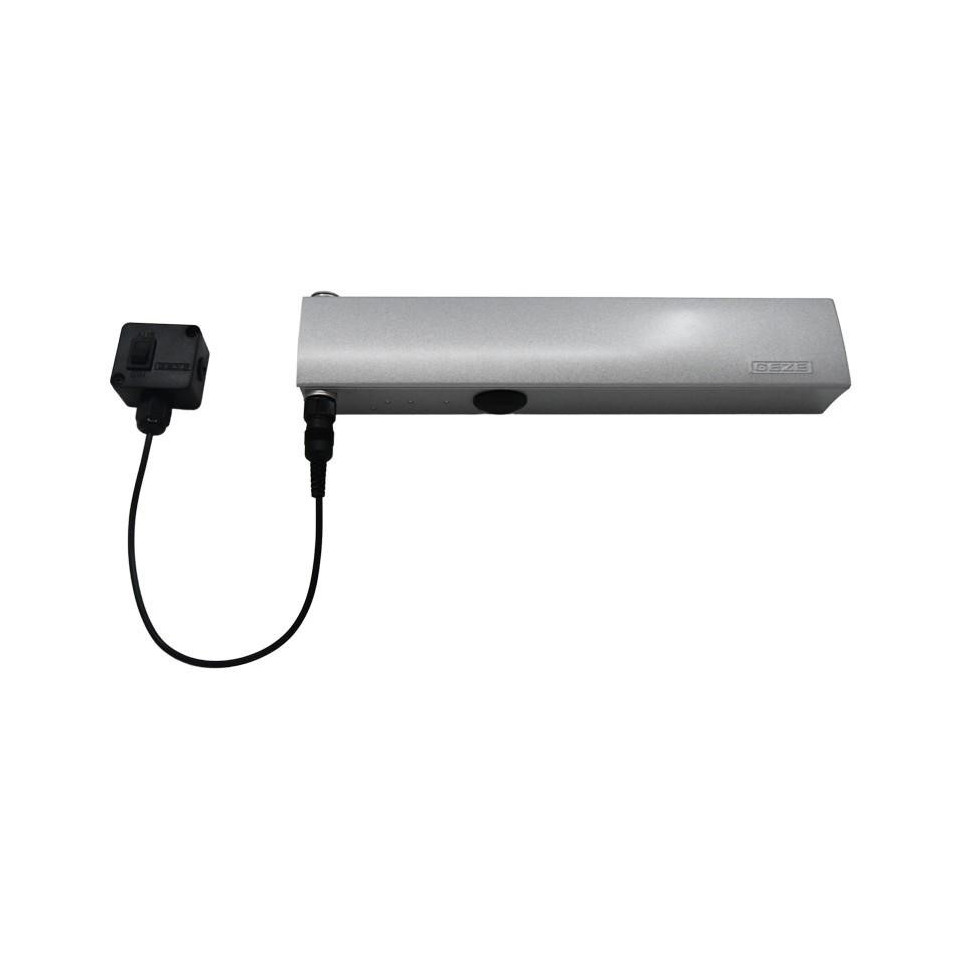

- The body features a robust silver finish; utilises rack-and-pinion technology with electrohydraulic actuation for precise control[1][3][9]. Includes a visual size indicator and an easily accessible adjustment valve.
- Suits fire and smoke doors (certified to BS EN1154 / EN1155), IP43 rated for interior applications[7]. Meets accessibility standards up to leaf width of max.1400 mm.

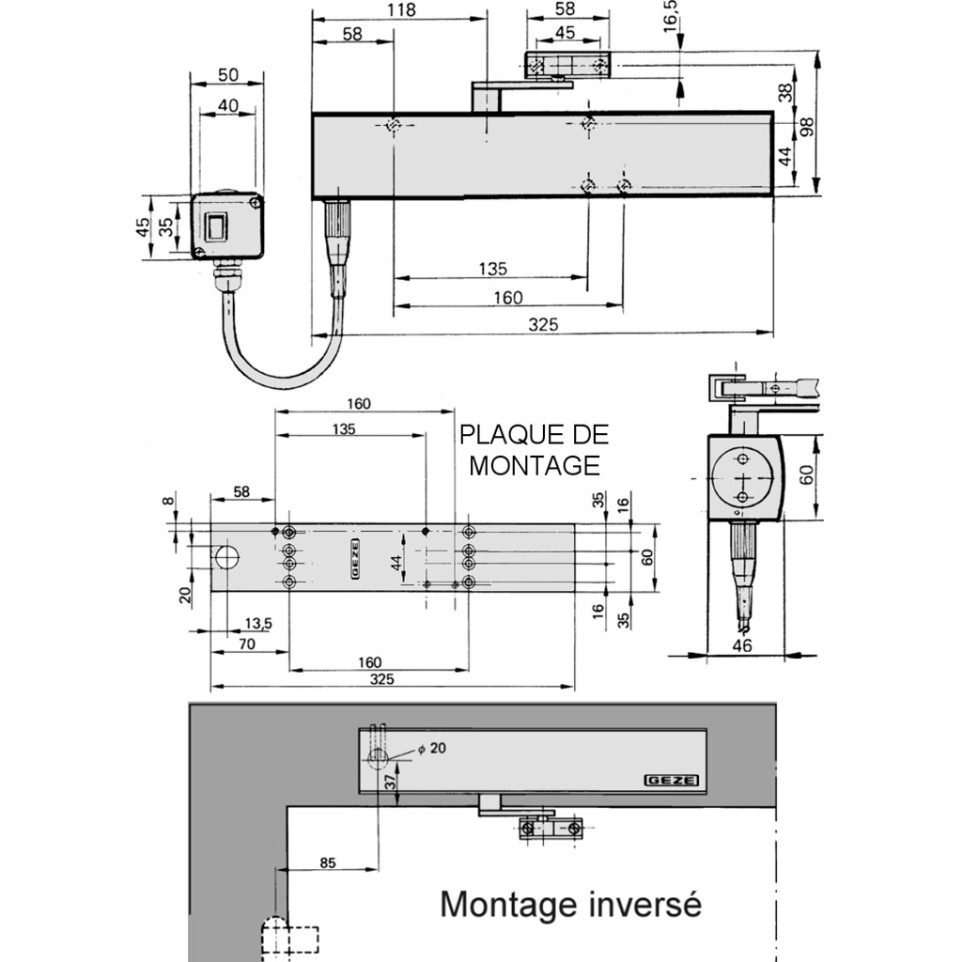

- Covers doors up to max. width: 1400 mm; supports weights up to approx.120 kg; adjustable closing speed and latching action; operating voltage:24 V DC ±10%; power consumption ca.1W[3][7][9]. Hold-open range is infinitely variable from80°to175°. Dimensions:325 x60 x46 mm.
- Differentiator: mechanical latching accelerates just before closed position, ensuring reliable closure even against air resistance or seal pressure[1][9]. Visual indicators simplify maintenance checks.
How it works
The TS4000 E uses an overhead arm mechanism that closes the door smoothly after every opening, thanks to its hydraulically controlled system. The built-in electric hold-open keeps the door open at a set angle while powered. In case of fire alarm or power failure, it automatically releases—ensuring safe closure as required by regulations[3][9].
