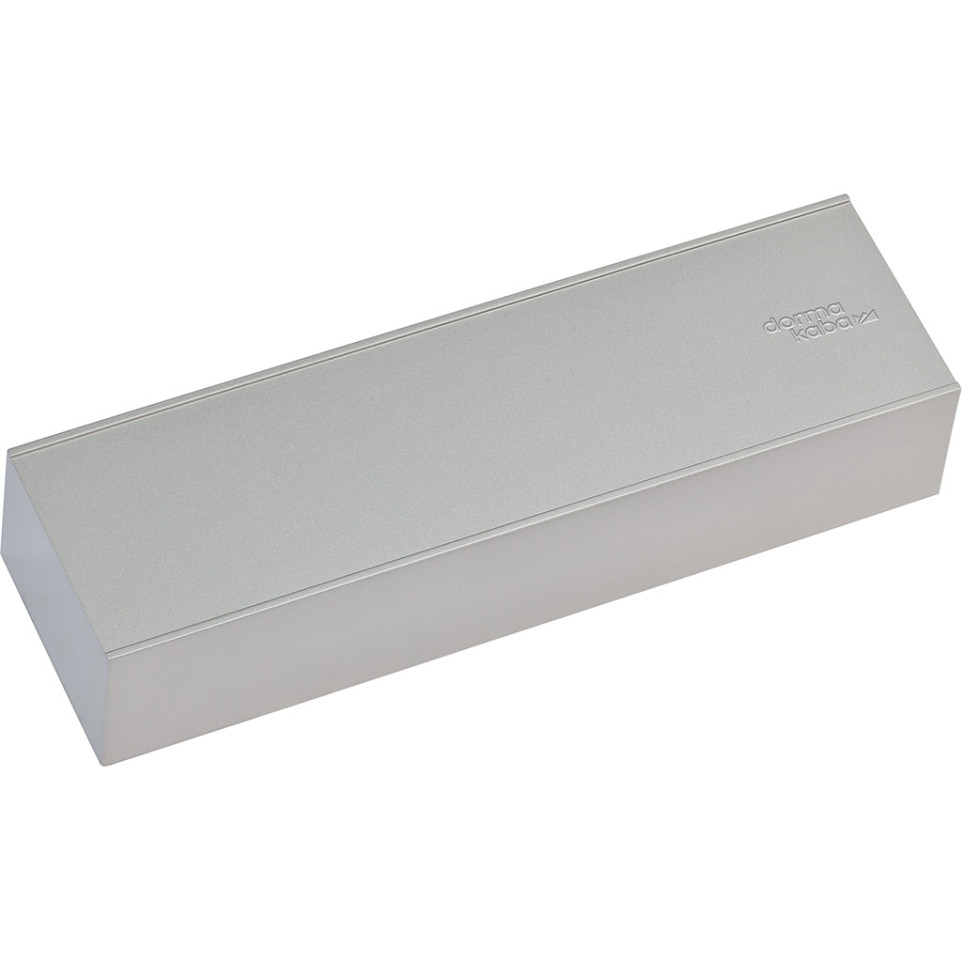

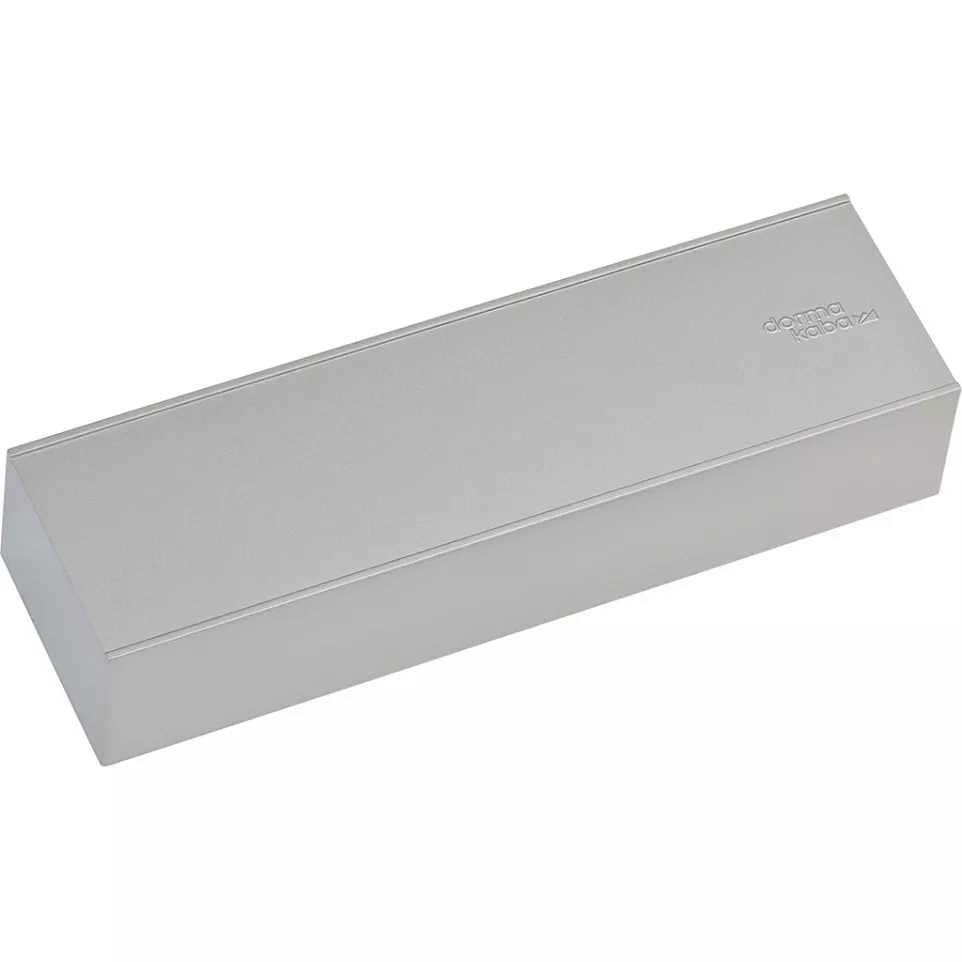

The Dorma TS 71 door closer is designed for controlled, automatic closing of internal single or double leaf doors in public, residential, or commercial buildings.
The Dorma TS 71 uses a rack-and-pinion system that stores energy as the door opens and then automatically guides it closed at an adjustable speed. The unit’s settings enable precise adaptation for various door weights and widths using accessible adjustment points on the closer body.
| Brand | Dorma |
|---|---|
| Finishing | argent |
| Product Dimensions | 68 x 232 x 45 mm |
| With last stroke | oui |
| Firewall | oui |
| Strength (selon EN1154) | EN 3-4 |
| Leaf width (mm) | 1100 |
| Max. weight of leaf (kg) | 80 Kg |
| For interior door | oui |
| Operation technology | à pignon et crémaillère |
| For door ext. opening outwards. | non |
| Opening brake | non |
| Max. opening angle on hinges | 180° |
| Late Close | non |
| Max. opposite opening angle hinges | 180° |
| Type of opening function | simple action |
| Adjustable closing speed | oui |
