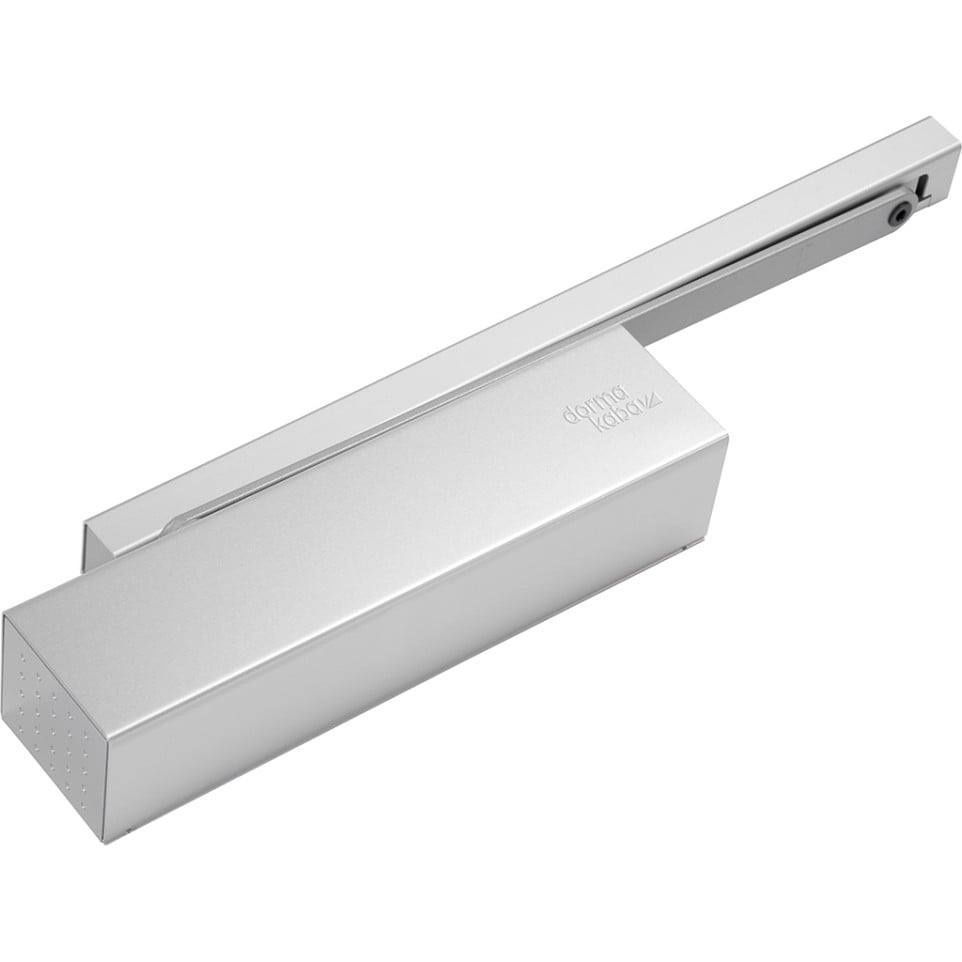

Dorma TS 93 B Basic Door Closer EN 2-5 with Arm Silver per piece

Dorma TS 93 B Basic Door Closer EN...

Estimated delivery date :  Tuesday 4 August
€405.26 HT
In stock

Ref : FGT-135618

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma TS 93 B Basic EN 2-5 door closer with silver arm is designed for controlled and adjustable closing of single-leaf interior or exterior doors up to 1,250 mm wide in commercial, public, or residential buildings.

Advantages

  • EASY OPEN cam action technology reduces resistance for effortless door opening, enhancing accessibility for all users.
  • Continuously adjustable closing force (EN 2-5) ensures compatibility with various door types and weights.
  • Integrated backcheck prevents uncontrolled opening and protects walls and doors from damage.
  • Adjustable closing speed, latching speed, delayed action, and soft opening function provide optimal customization for each application.
  • Simplified installation with a universal mounting plate and non-handed design; minor drawback: hold-open function requires additional components if needed.

Specifications

  • Sleek Contur design with concealed fixings; supplied in an anodized silver finish. Cam-action mechanism uses robust materials engineered for long-term performance.
  • Certified to EN 1154 standards; suitable for fire and smoke check doors up to specified dimensions. Manufacturing quality assured under ISO 9001 processes[7][3].
  • For door widths up to 1,250 mm; variable spring strength EN 2–5. Dimensions: length 275 mm × depth 53 mm × height 60 mm. Weight approx. 3.5 kg[5][7].
  • Differentiating features include EASY OPEN technology for reduced opening effort; non-handed configuration allows use on left- or right-hinged doors; compatible with both pull-side (door leaf fixing) or push-side (transom fixing) installations[1][3].

How it works

The TS 93 B Basic uses a heart-shaped cam mechanism that quickly reduces the force required during the initial opening phase while ensuring reliable hydraulic control as the door closes. Settings such as closing force, backcheck, latch speed, and delay are adjusted on-site using accessible controls on the body to suit each specific installation scenario[1][3][7].

See more

Product Details

Brand Dorma
Finishing argent
Product Dimensions 60 x 275 x 53 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-5
Leaf width (mm) 1250
Max. weight of leaf (kg) 100 Kg
For interior door oui
Operation technology à came en forme de coeur
For door ext. opening outwards. oui
Max. opening angle on hinges 180°
Type of opening function simple action
Adjustable closing speed oui
