GEZE mounting plate for TS 4000 E / TS 5000 E silver per piece
€35.92
In stock
Usage

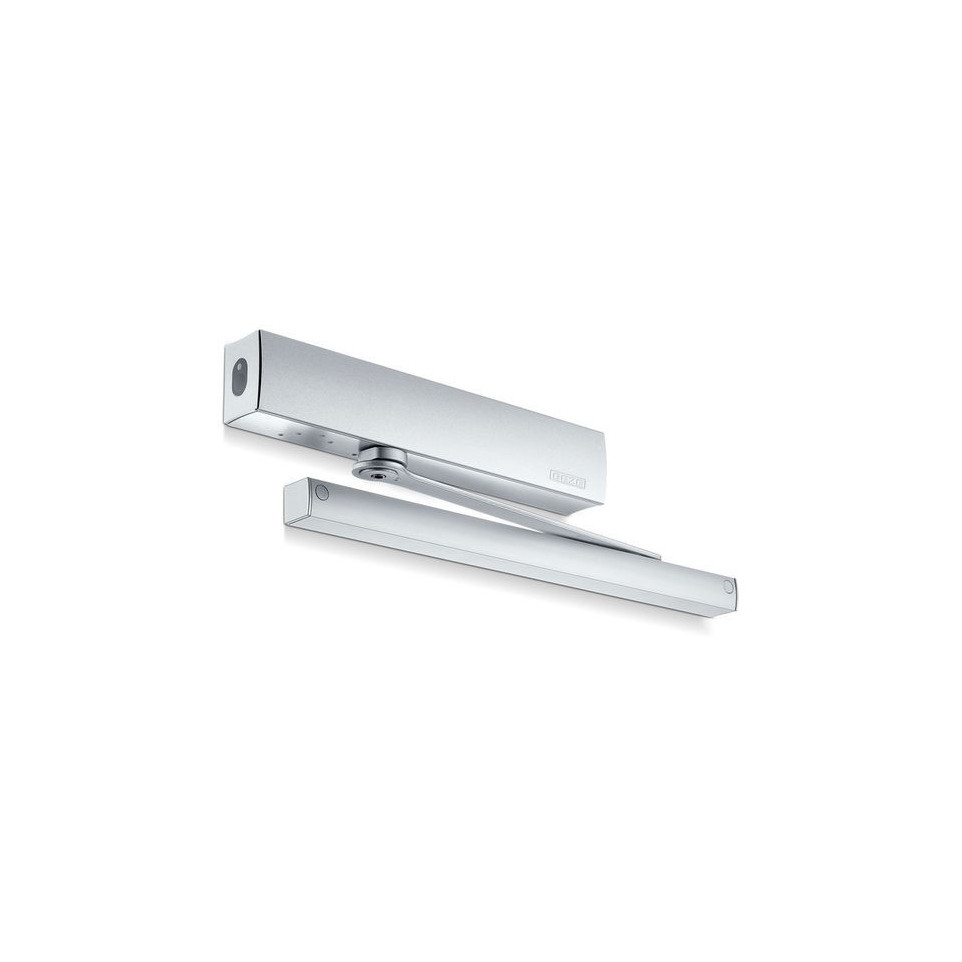

The Geze TS 5000 E-FS with Freeswing arm is designed for controlled and reliable closing of swing doors, especially where accessibility and fire protection are required. Suitable for commercial and public buildings using inverse mounting.
Advantages
- Allows doors to be used with little opening resistance thanks to Freeswing technology.
- Integrated smoke detector enables automatic closing in case of fire or smoke detection.
- Adjustable power size EN 2-6 supports door leaf widths from approximately 850 mm to 1400 mm, ensuring installation flexibility[1][4].
- Complies with EN1154/EN1155 standards for fire and smoke protection[1][4].
- Sleek silver finish offers a contemporary appearance suitable for modern interiors.
Specifications
- Surface-mounted cam action closer constructed from durable aluminium; supplied in silver (argent) finish. Suitable for both right- and left-hand doors (non-handed design)[4].
- Cyclic tested beyond industry norms; certified according to EN1154/EN1155, suitable for use on fire/smoke doors[1][4].
- Power size adjustable from EN2 to EN6 covers door weights between approx. 40 kg –120 kg, width up to approx.1400 mm; maximum opening angle typically up to about120°–180°, subject to installation constraints[1][4].
- Differentiators include integrated Freeswing function (door moves freely when not activated), electromagnetic holding in open position, modular design compatible with various mounting types including inverse installation.
How it works
The door closer mounts at the top of the door frame. Under normal conditions, the Freeswing arm allows easy manual operation without noticeable resistance. In an emergency—such as smoke or alarm trigger—the integrated mechanism automatically closes the door securely using pre-set force parameters.
