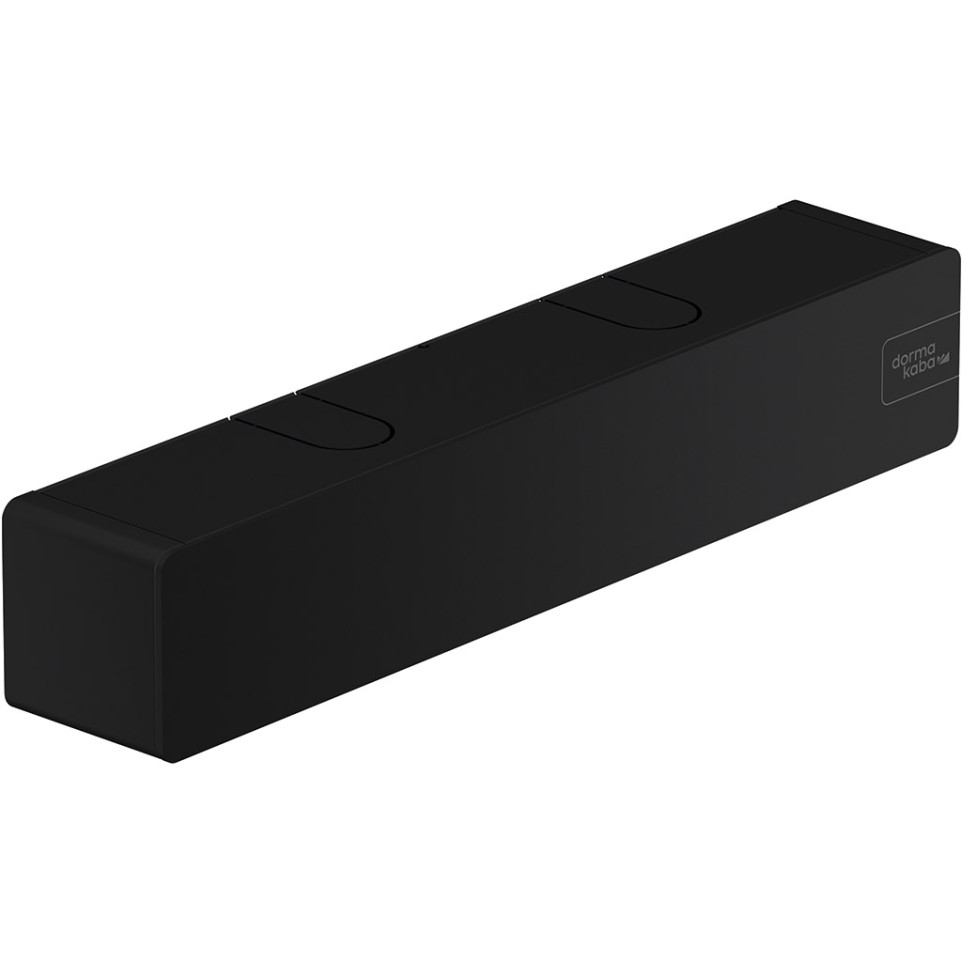

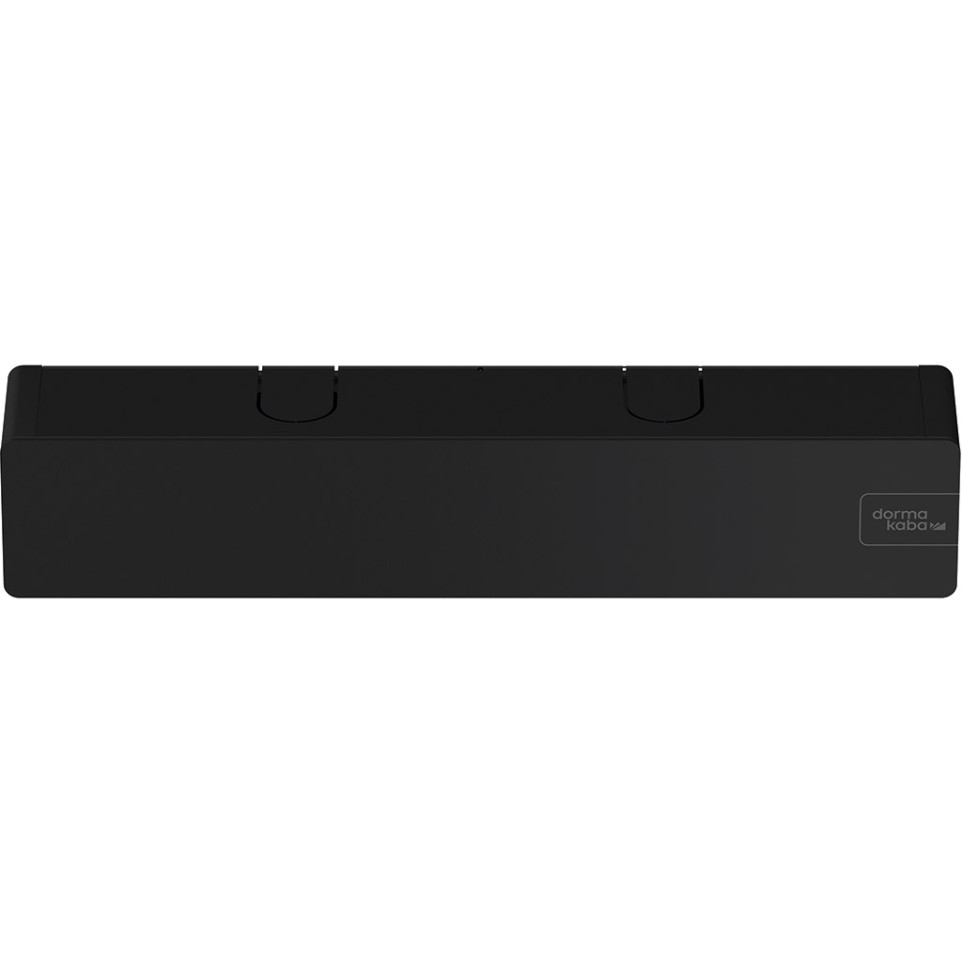

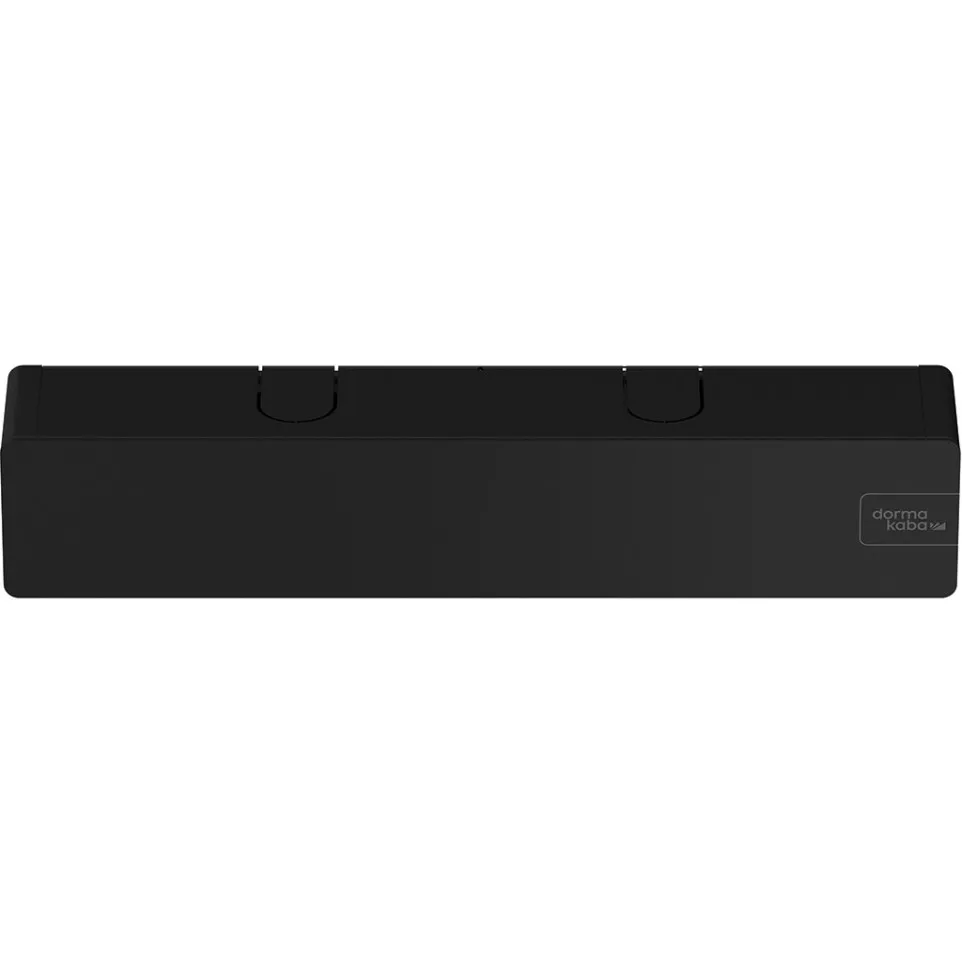

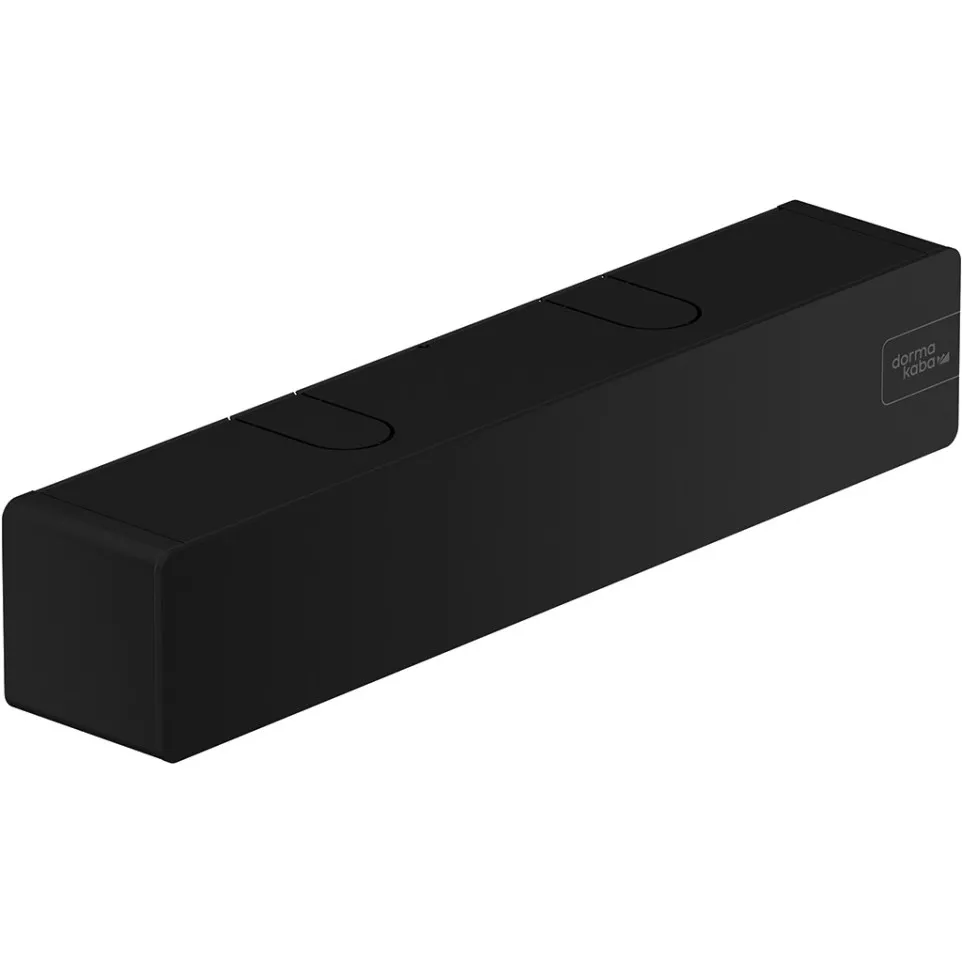

Dorma TS 98 XEA black slide channel arm for door closer per piece
€43.60
Usage
The Dorma TS 98 XEA EN 1-6 door closer is designed for controlled closing of single and double-leaf doors in commercial or public buildings. Suitable for internal and external swing doors without an arm, finished in black RAL 9005.
Advantages
- Adjustable closing force from EN 1 to EN 6 to suit different door sizes and weights
- Sleek, modern design with a discreet surface-mounted body in black finish
- Smooth operation enabled by cam action technology for reduced opening resistance
- Certified according to EN 1154 for performance and durability standards
- Non-handed installation allows mounting on left or right opening doors; compatibility with various mounting positions (arm not included)
Specifications
- Surface-mounted aluminium construction with corrosion-resistant finish (RAL 9005 black)
- Cyclic tested beyond industry standard, often rated at over one million cycles[3]
- Covers adjustable power range EN size 1–6; supports door widths up to approximately 1400 mm and weights up to 120 kg[1]
- Cam action mechanism ensures easy opening effort while maintaining reliable closing control; features include adjustable sweep speed, latching speed, and backcheck functions when paired with the correct arm kit[5]
How it works
This surface-mounted door closer uses precision hydraulic controls to close the door smoothly after manual opening. The adjustable cam action ensures minimal resistance when opening while maintaining reliable closure—settings are fine-tuned via accessible valves (arm required for full function).
