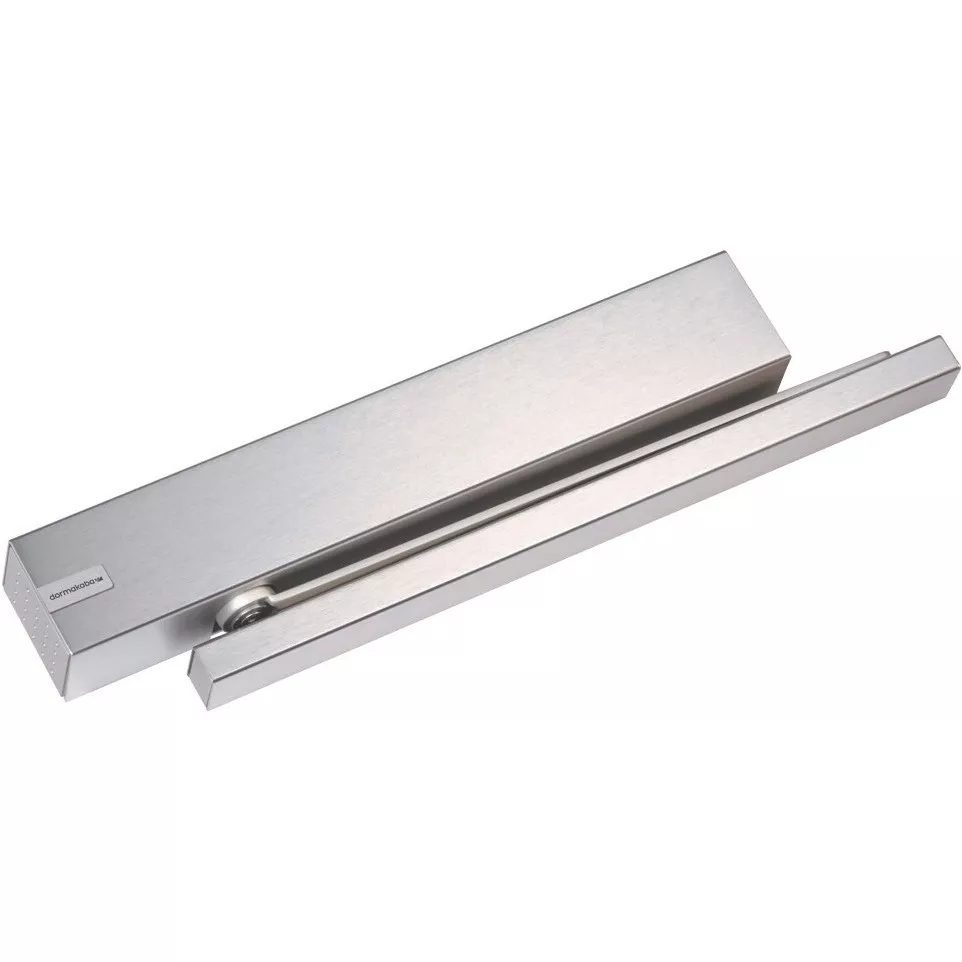

Dorma TS 99 FL Electromagnetic Swing Free Door Closer EN 2-5 Silver Reverse Mounting / piece

Dorma TS 99 FL Electromagnetic Swing...

Estimated delivery date :  Friday 24 July
€526.58 HT
In stock

Ref : FGT-135653

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma TS 99 FL EN 2-5 door closer is designed for controlled closing of doors in commercial and institutional buildings, particularly where inverted mounting is required for functional or aesthetic reasons.

Advantages

  • Adjustable closing force from EN 2 to EN 5, suitable for a wide range of door weights and sizes.
  • Reliable performance with consistent operation, ideal for high-traffic environments.
  • Complies with recognized standards such as EN 1154 for safety and durability.
  • Sleek silver finish blends seamlessly with modern architectural designs.
  • Requires precise installation due to the inverted mounting configuration.

Specifications

  • Design: Surface-mounted door closer with robust construction; finished in silver. Designed specifically for inverted (push-side) installation on the door or frame.
  • Durability/Certifications: Certified according to EN 1154; long lifespan tested to withstand hundreds of thousands of cycles.
  • Performance: Power adjustment from size EN 2–5 allows adaptation to doors from approximately 850 mm up to1250 mm wide and weights from approximately 40 kg up to100 kg[1][3][5].
  • Differentiator: Inverted mounting offers installation flexibility when standard mountings are not possible or desired. Includes features like adjustable latching speed, backcheck function, and reliable closing control[1][5].

How it works

This surface-mounted closer installs on the push side using an inverted configuration. Its adjustable mechanism controls the speed at which the door closes after opening, providing smooth movement while ensuring safety and compliance in busy settings[1][3].[5]

See more

Product Details

Brand Dorma
Finishing argent
Voltage (V) 24 V DC
Product Dimensions 71 x 413 x 52 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-5
Leaf width (mm) 1250
Max. weight of leaf (kg) 100 Kg
For interior door oui
Operation technology à came en forme de coeur
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 120°
Late Close non
Type of opening function simple action
Adjustable closing speed non
FGT-135653
