Assa Abloy DCG 461 Silver Selector Arm per piece
€237.76
In stock
Product

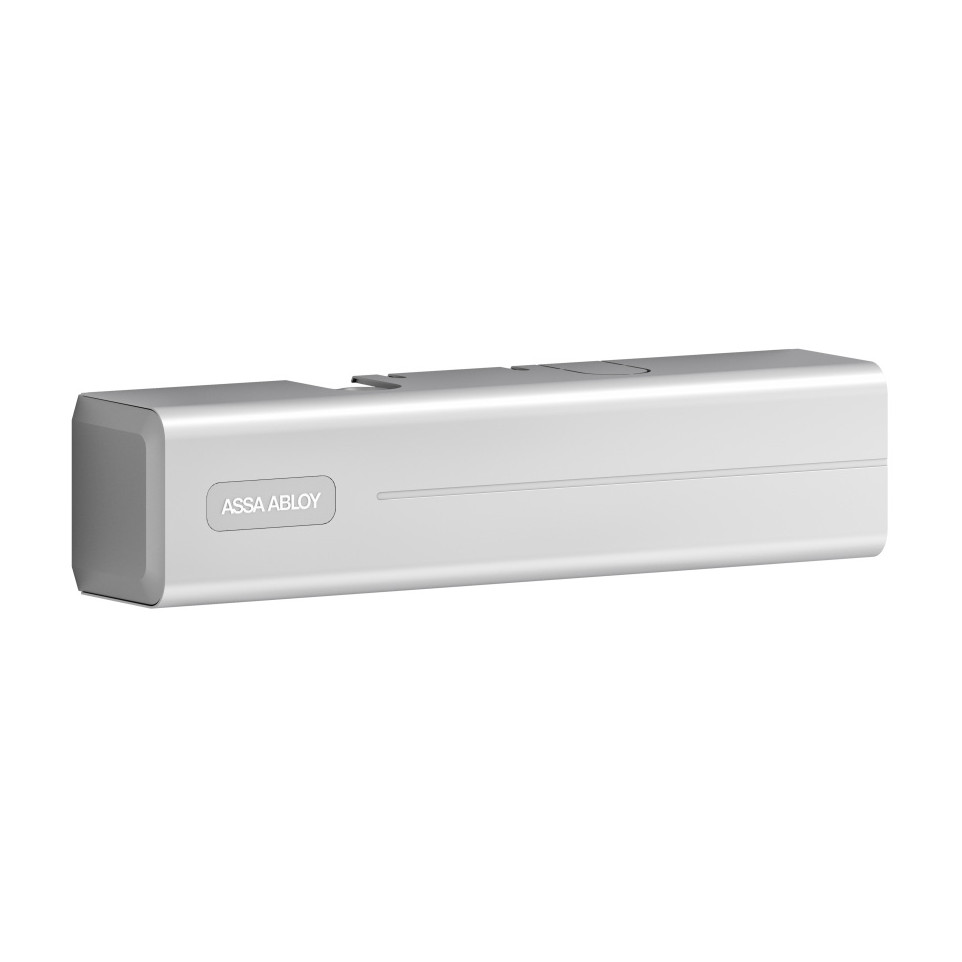

The Assa Abloy DC700 EN 3-6 is a silver cam-motion door closer with a slide arm, designed for surface application on single-leaf doors up to 1400 mm wide. Suitable for environments requiring fire or smoke protection, it meets rigorous safety and installation demands.
Specifications
- Cam-motion technology with height-adjustable slide arm (up to 14 mm)
- Durable aluminium lacquered housing with concealed mounting plate
- Certified EN 1154, size EN 3-6 adjustable force
- For left or right-handed doors; fits hinge and non-hinge side installations
- Suitable for smoke and fire-resistant doors
- Adjustment screws hidden behind the decorative cover
- Adjustable closing speed (170°–0°), final latching (15°–0°), and opening backcheck (beyond 75°)
- Continuous closing force regulation
Usage
This door closer is installed on the door or the frame, working with both left and right outward or inward opening doors. Closing speed, end latching, and backcheck can be finely adjusted to fit the door’s requirements, helping ensure safe, controlled, and reliable automatic closure in high-traffic or regulated environments.
FAQ
-
Is the DC700 suitable for fire and smoke doors?
Yes, it is certified for use on fire- and smoke-resistant doors. -
Can it be installed on both left- and right-handed doors?
Yes, installation is possible on both left and right opening doors. -
What is the maximum door width it supports?
It is suitable for doors up to 1400 mm wide. -
Are closing force and speed adjustable?
Yes, both force and speeds can be continuously adjusted for specific application needs. -
Does it require a specific mounting plate?
It is compatible with a concealed, flat mounting plate for an invisible appearance.
