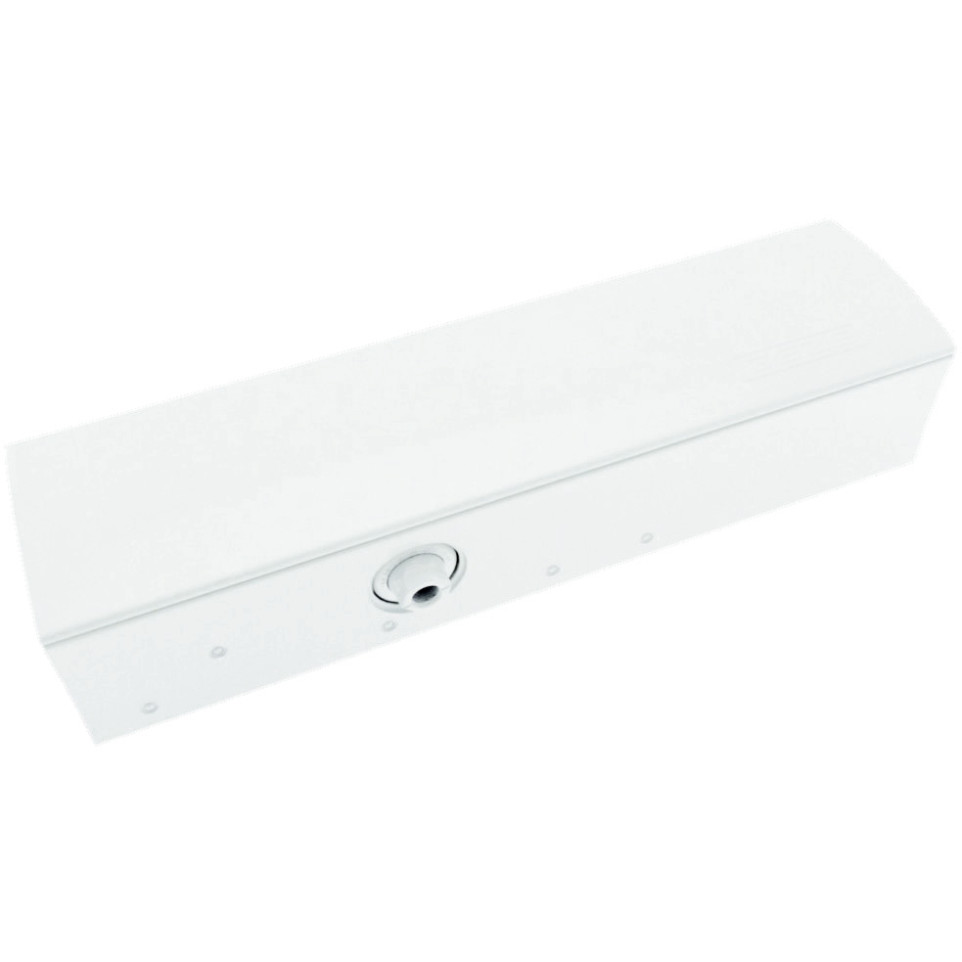

GEZE TS 3000 V Overhead Door Closer Without Arm White 9016 / pc

GEZE TS 3000 V Overhead Door Closer...

Estimated delivery date :  Friday 24 July
€146.67 HT
In stock (1)

Ref : FGT-136252

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Geze TS 3000 V door closer provides controlled and adjustable closing for single-leaf interior or exterior doors, including fire and smoke protection doors, with a maximum leaf width of 1100 mm. Suitable for commercial, public, and residential entrances.

Advantages

  • Variable closing force (EN 1-4) adjusts to door size and conditions
  • Compatible with right- or left-hinged doors without modification
  • Smooth hydraulic latching action ensures gentle closing near the final position
  • Front-accessible controls for easy adjustment of speed and latching action
  • Minimal installation effort due to a low number of parts; quick setup possible

Specifications

  • Design & Materials: Surface-mounted overhead door closer in white (RAL9016), supplied as a compact main body; requires guide rail arm (not included)
  • Durability & Standards: Certified per EN1154; suitable for fire/smoke protection doors with mounting plate; DIN left/right compatible without conversion
  • Main Performance Data:
    – Adjustable closing force EN1-4
    – For door leaf widths up to max. 1100 mm
    – Dimensions: approx. length 226 mm × height 60 mm × depth 44–46 mm
    – Installation: Door leaf or transom mounting on hinge/opp. hinge side
  • Differentiating Features:
    – All major functions adjustable from front except force
    – Hydraulic thermo-control valves stabilize performance under temperature changes
    – Integrated safety valve protects against overload

How it works

The Geze TS 3000 V uses hydraulic dampening to automatically close opened doors at a controlled speed. Install the device above the door; adjust settings via accessible front valves to achieve desired closing speed and latching action suited for the specific application.

See more

Product Details

Brand Geze
Finishing blanc
Product Dimensions 60 x 226 x 46 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-4
Leaf width (mm) 1100
Max. weight of leaf (kg) 100 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 180°
Type of opening function simple action
Adjustable closing speed oui
