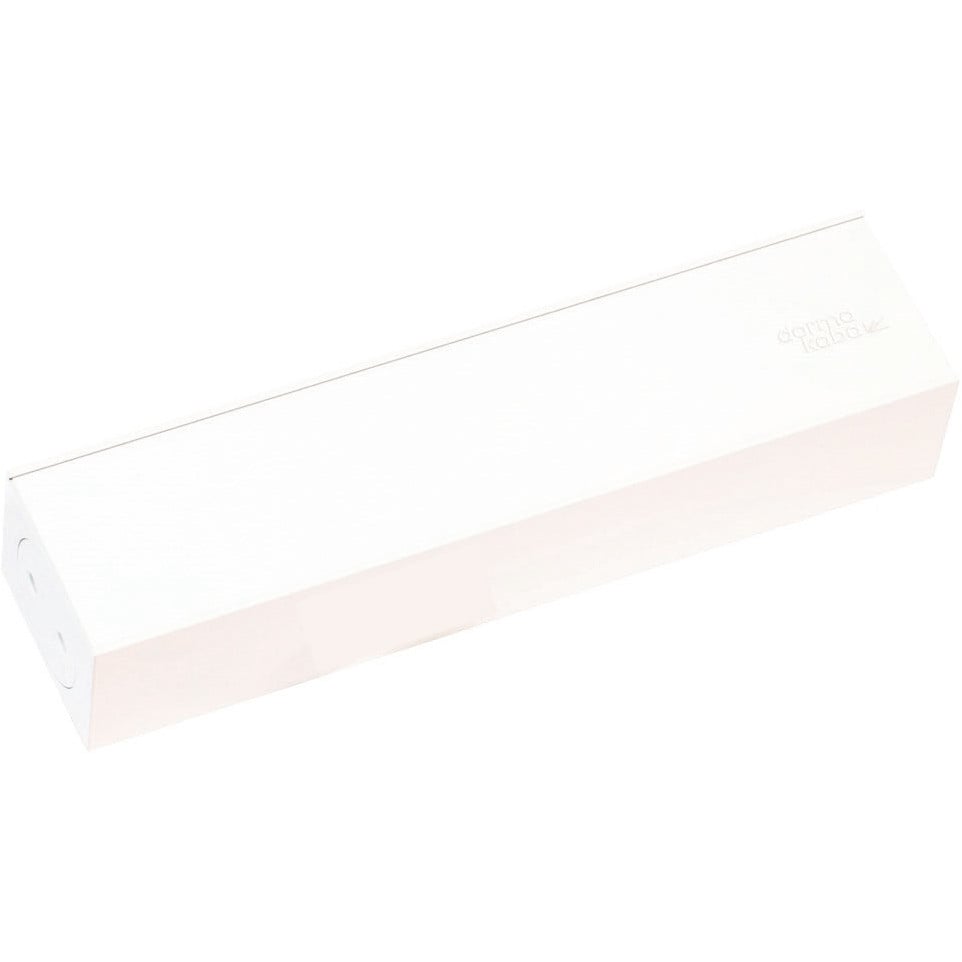

Dorma TS 72 Door Closer without Arm EN 2-4 - White 9016 / pc

Dorma TS 72 Door Closer without Arm EN 2-4 - White 9016 / pc
Dorma TS 72 Door Closer without Arm EN 2-4 - White 9016 / pc
Dorma TS 72 Door Closer without Arm...
Dorma TS 72 Door Closer without Arm...

Estimated delivery date :  Monday 28 September
€83.15 HT
In stock

Ref : FGT-135008

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma TS 72 door closer is designed for controlled closing of standard interior doors up to 1,100 mm wide in commercial and residential settings. Suitable for single- and double-leaf doors.

Advantages

  • Continuously adjustable closing force from EN 2 to EN 4 via a simple adjustment screw
  • Compatible with both DIN left- and right-handed doors (non-handed)
  • Compact construction simplifies installation without the need for a mounting plate
  • Latching action and closing speed can be independently adjusted for optimal performance
  • Smooth operation largely unaffected by temperature fluctuations; not intended for outward-opening exterior doors or fire/smoke doors in this configuration

Specifications

  • Rack-and-pinion mechanism with ClassicLine design; powder-coated finish in RAL White (9016)
  • Casing made of durable materials; ISO 9001 certified production; tested according to EN 1154 standard
  • Covers door widths up to 1,100 mm; continuously adjustable spring strength (EN size 2–4); weighs approximately 1.2 kg; dimensions: length: ~232 mm, depth: ~45 mm, height: ~68 mm
  • Latching action and two-stage closing speed adjustable via separate valves; suitable for parallel or regular arm installation using available accessories (arm not included)

How it works

The Dorma TS 72 uses an internal adjustable spring mechanism to control the door’s closing force. After opening, the closer regulates the return movement by hydraulic damping, letting you set both speed and latching tension independently using accessible adjustment screws.

See more

Product Details

Brand Dorma
Finishing blanc
Product Dimensions 68 x 232 x 45 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-4
Leaf width (mm) 1100
Max. weight of leaf (kg) 80 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 180°
Late Close non
Max. opposite opening angle hinges 180°
Type of opening function simple action
Adjustable closing speed oui
