ASSA ABLOY A126 Mounting Plate for DC340 and DC350 Door Closers per piece
€23.31
Usage

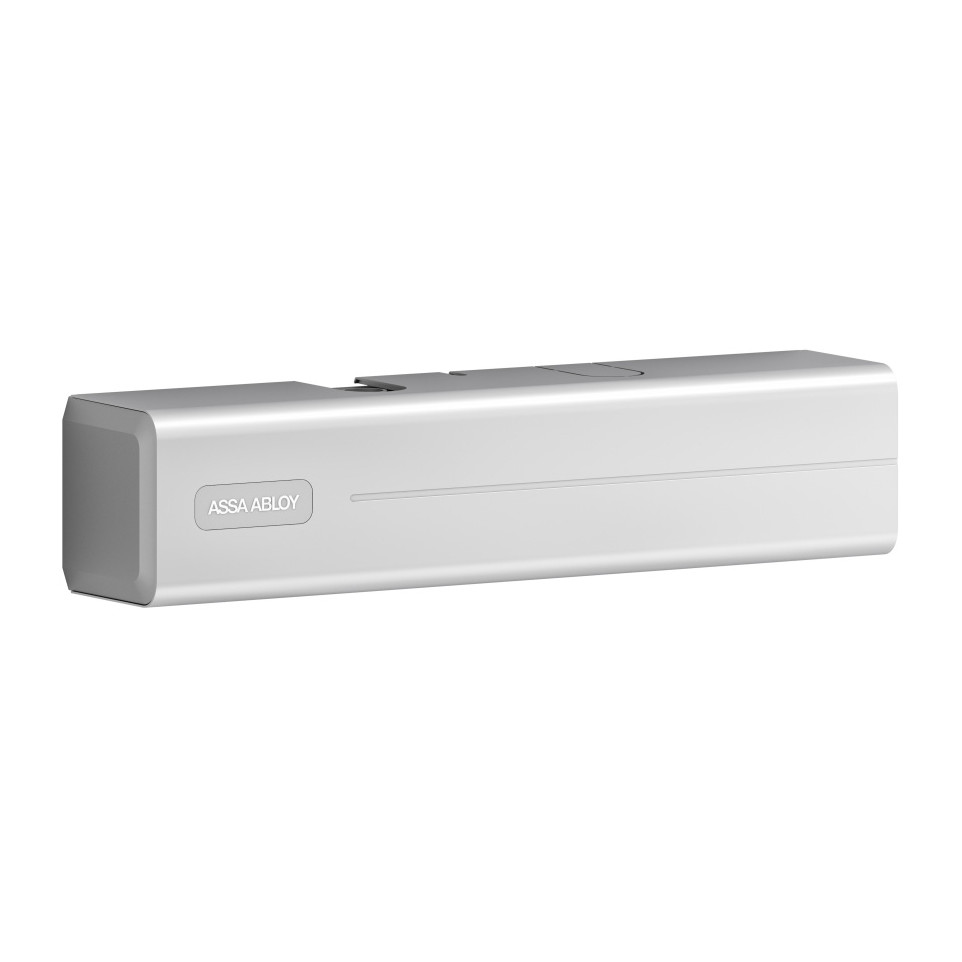

The Assa Abloy DC340 EN 1-4 door closer is designed for seamless, controlled closing of internal and external doors in commercial and public buildings. It ensures security, comfort, and compliance with accessibility requirements.
Advantages
- Adjustable power size from EN 1 to 4 to suit various door weights and widths
- Compatible with doors up to 1100 mm wide and weighing between approximately 20 kg and 80 kg
- Non-handed design allows installation on left or right opening doors
- Slim, surface-mounted form factor for easy retrofit or new installations; supplied without arm for flexible configuration
- Durable cast aluminum body provides long-term performance in demanding environments
Specifications
- Slimline surface-mounted design in silver finish; constructed from robust cast aluminum for longevity[2]
- Cyclically tested beyond industry standards (over ten million cycles); compliant with EN1154 performance standard[2]
- Power adjustment mechanism covers EN sizes from 1 to 4: suitable for door widths of approximately up to 1100 mm and weights from around 20–80 kg[1][2]
- Latching speed control valve ensures secure closure; independent adjustment for sweep/latching speeds; overpressure relief valve integrated as standard[2]
How it works
The DC340 is installed at the top of a door. Its adjustable spring mechanism controls the closing motion, slowing the door smoothly after opening. The latching action secures the final closure, reducing noise while ensuring security.
