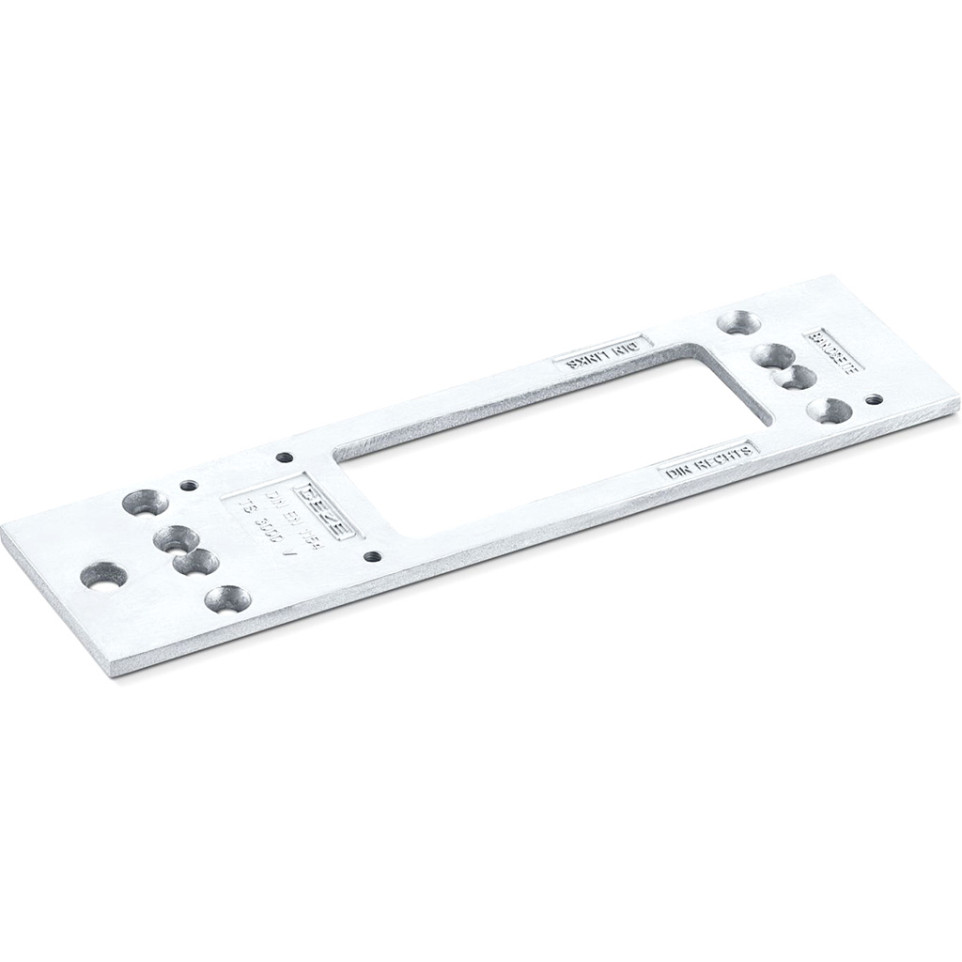

The Geze mounting plate is designed for the TS 3000 door closer, in a durable silver finish. It serves as an accessory to facilitate the secure installation of the door closer on doors where direct mounting is not possible, especially in environments requiring fire and smoke protection.
Simply attach the mounting plate to the door where direct fixing of the TS 3000 closer is not feasible. The standardized hole pattern and supplied screws make installation straightforward, ensuring compatibility with both left-handed and right-handed doors requiring fire or smoke protection.
Is this mounting plate compatible with the TS 3000 door closer?
Yes, it is specifically designed for use with the Geze TS 3000 model.
Can it be used on fire or smoke protection doors?
Yes, the mounting plate is approved for installation on fire and smoke protection doors.
Are the necessary screws included in the package?
Yes, all required fixing screws are supplied for installation.
Does the plate fit both left and right opening doors?

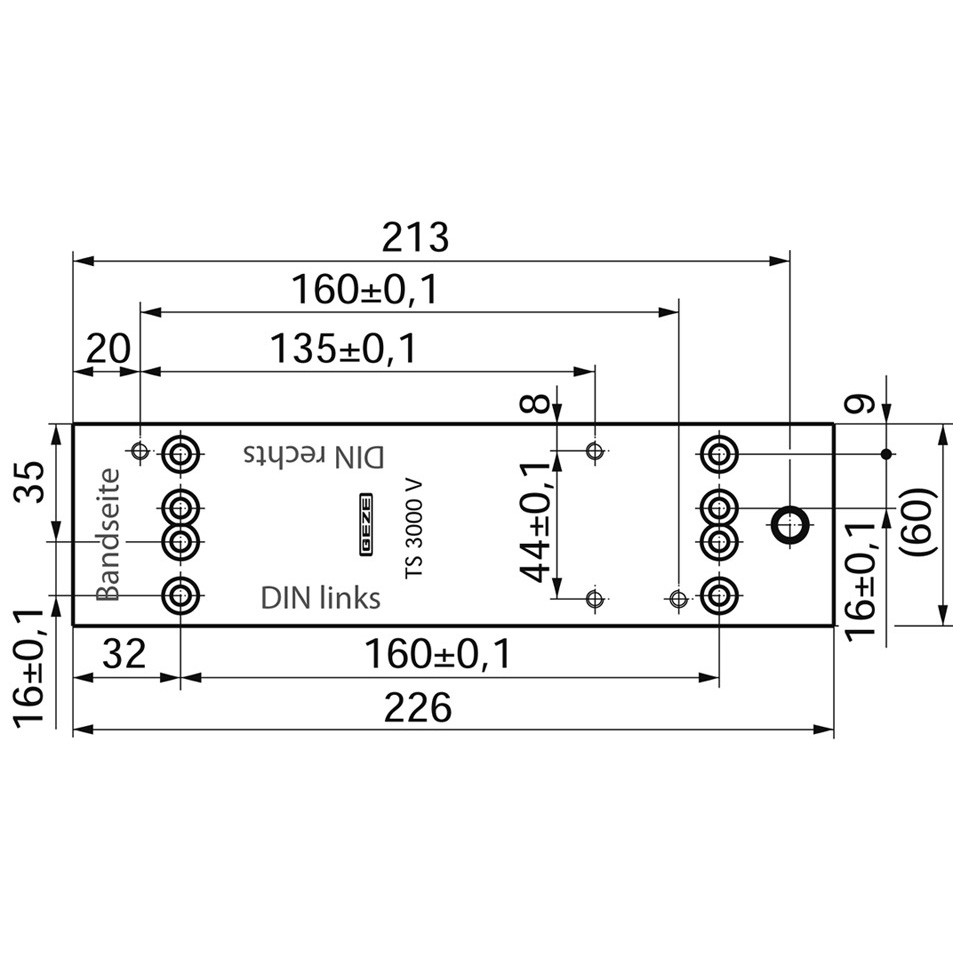

Yes, the hole pattern is standardized for both DIN left and DIN right installations.
What material is the mounting plate made of?
It is constructed from sturdy metal with a silver finish for added durability.
mvm-dt-2025-07-07
| Brand | Geze |
|---|---|
| Finishing | argent |
| Product Dimensions | 60 x 226 x 5 mm |
| Firewall | oui |
