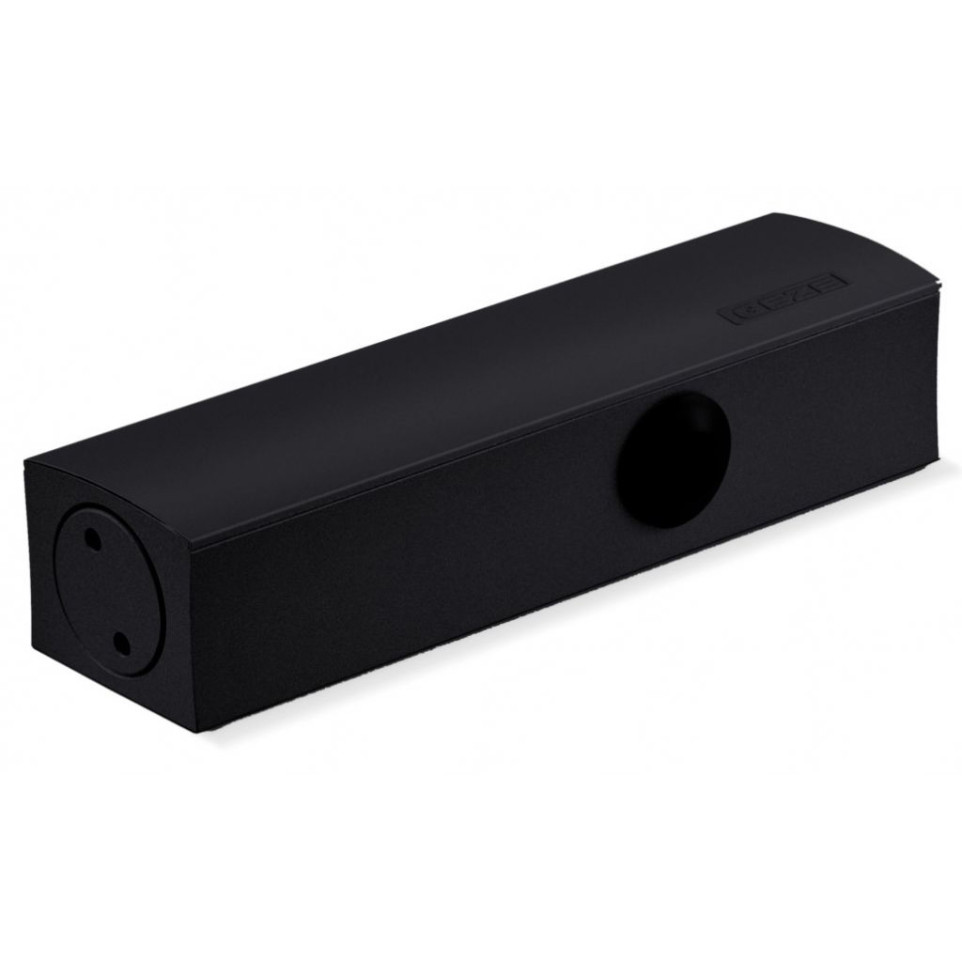

Geze Link Arm for TS 2000-4000 Door Closer Black 9005 per piece
€49.47
In stock
Usage
The Geze TS 2000 NV overhead door closer, without arm, is designed for controlled closing of single-leaf doors in commercial or residential settings. Suitable for fire and smoke protection doors up to 1100 mm wide.
Advantages
- Variable closing force (EN 2–4) for flexible adaptation to different door sizes and weights.
- Compatible with both right- and left-hand single-action doors, without need for conversion.
- Individually adjustable closing speed and hydraulic latching action enhance safety and user comfort.
- Suits fire-resistant installations when used with an appropriate mounting plate.
- No sliding arm included; ensures flexibility in arm selection based on project requirements.
Specifications
- Design: Surface-mounted rack-and-pinion mechanism; black finish (RAL 9005).
- Durability: Tested in accordance with EN1154; suitable for barrier-free access as per DIN18040 up to specific leaf width; supports fire/smoke protection standards when correctly installed.

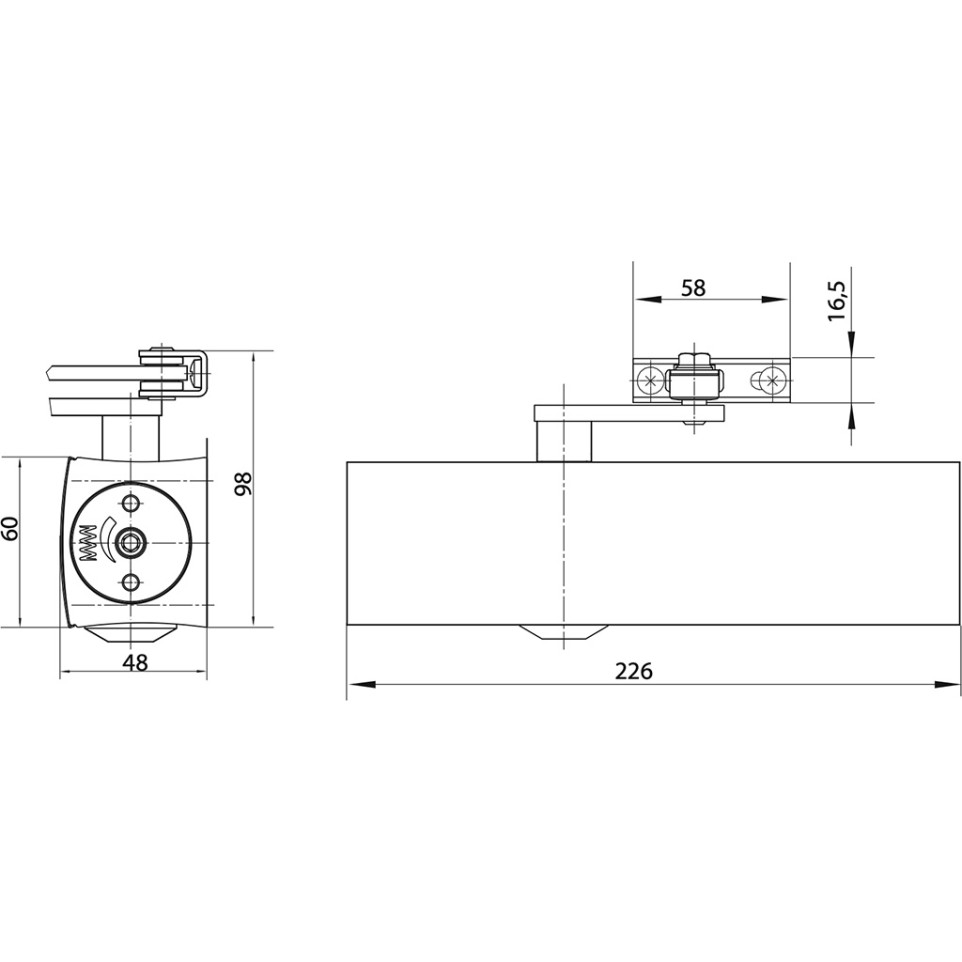

- Performance: Variable closing force adjustable from EN size 2 (for doors up to approx. 40 kg/850 mm width) to size 4 (up to approx. 80 kg/1100 mm width); dimensions: length 226 mm, height 60 mm, installation depth 48 mm[1][3][7][9].
- Differentiators: All adjustments accessible from the front or side; can be installed on either pull or push sides of the door leaf or transom as required by layout[1][3][7].
How it works
This door closer uses a hydraulic mechanism with adjustable valves that control the speed and force at which a single-leaf door closes. It ensures gentle yet secure closure after opening, minimizing noise while supporting safety requirements in various environments[1][3].
