Full Extension Stainless Steel Ball Bearing Drawer Slides 250mm H45 45kg per piece

Usage

This full-extension stainless steel ball bearing runner is designed for smooth, reliable movement of drawers in furniture, industrial equipment, or machine construction. Ideal for environments where high load capacity and corrosion resistance are essential.

Advantages

• Made from genuine SS304 stainless steel for enhanced corrosion resistance in humid or chemically aggressive environments.
• Total extension design allows complete access to drawer contents.
• Supports dynamic loads up to 45 kg per pair when mounted vertically on the major axis.
• Non-magnetic rails prevent interference with sensitive electronic components (ball bearings themselves are magnetic for added hardness).
• If mounted flat (longitudinal), load capacity reduces to approximately 25% of rated value—a consideration for specialized installations.

Specifications

• Material: Stainless steel grade SS304 (EN 1.4301 / X5CrNi18-10)
• Suits demanding applications with high moisture or potential for chemical contact; not suitable at very high temperatures or vertical use as a “guillotine.”
• Total length: 250 mm; profile height: H45 mm; maximum supported load: up to 45 kg per pair (vertical installation)

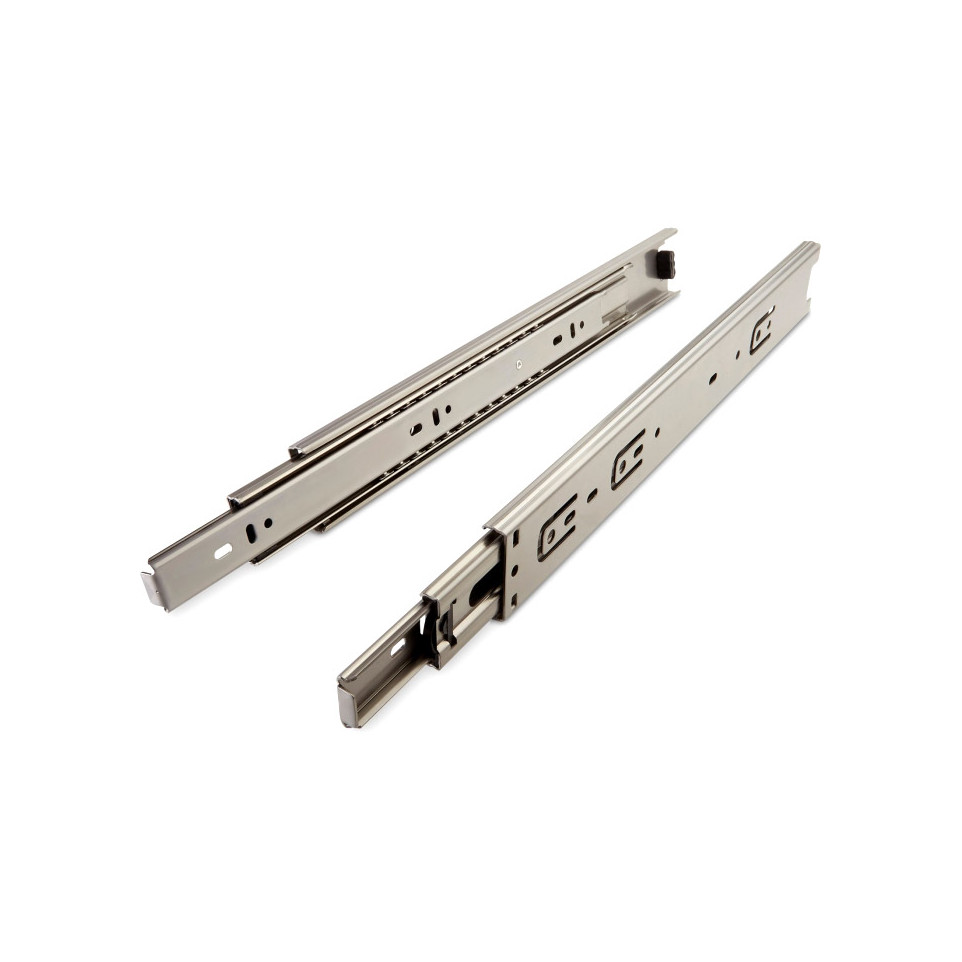

• The set includes one left and one right runner, providing full-extension functionality. Ball bearing tracks ensure smooth operation under daily use.

How it works

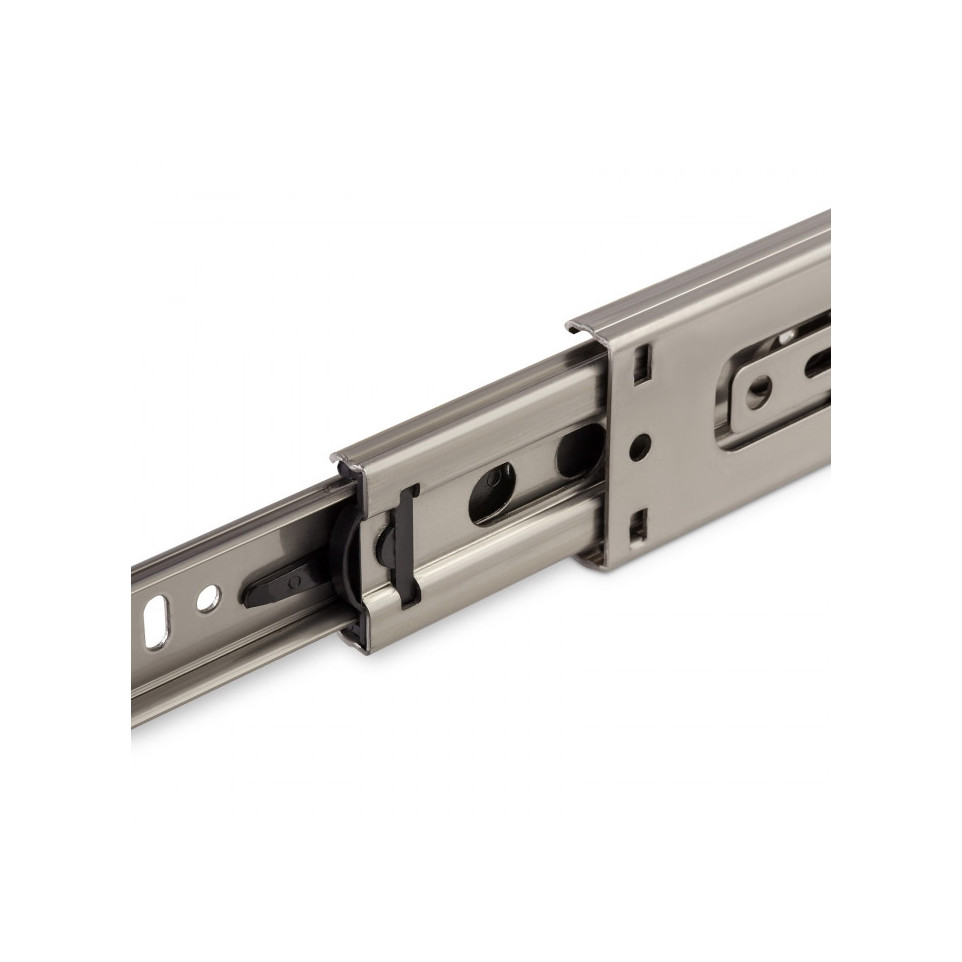

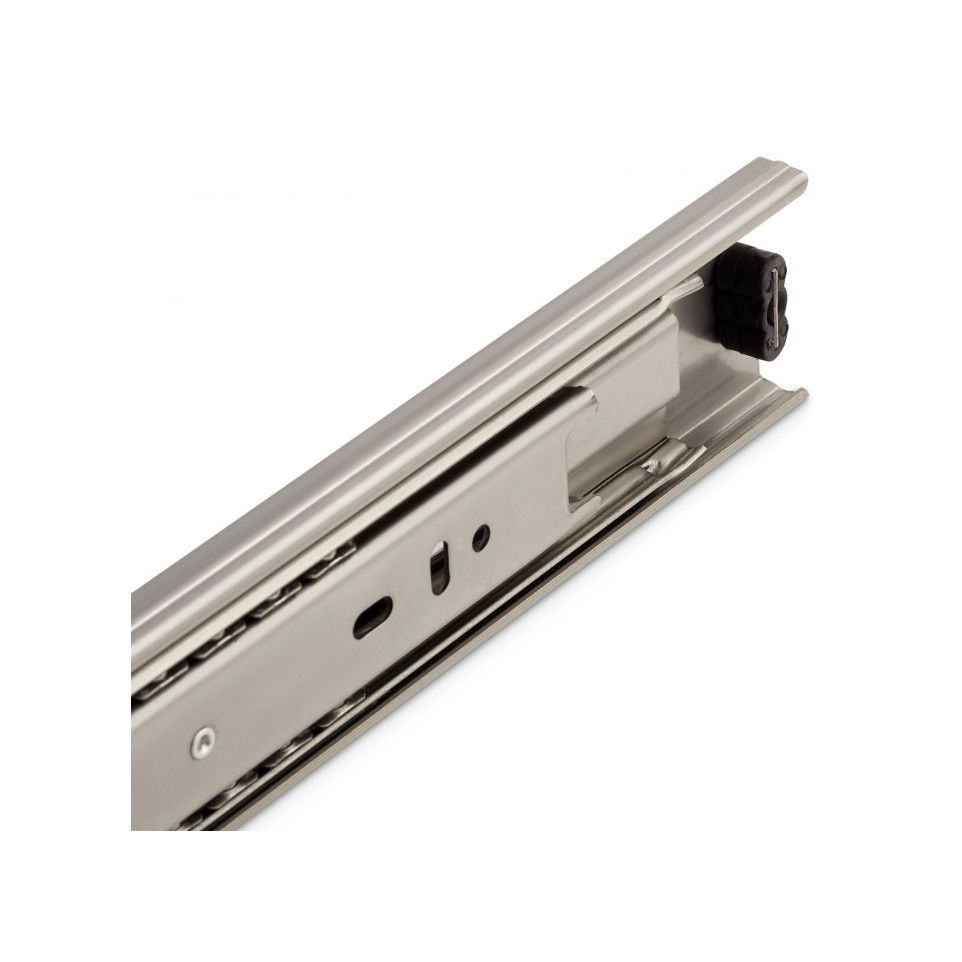

The pair of runners is secured laterally along the drawer sides. Ball bearings inside guide the telescopic slide outwards until fully extended, enabling easy access and stable support even when loaded near maximum capacity.
