Product

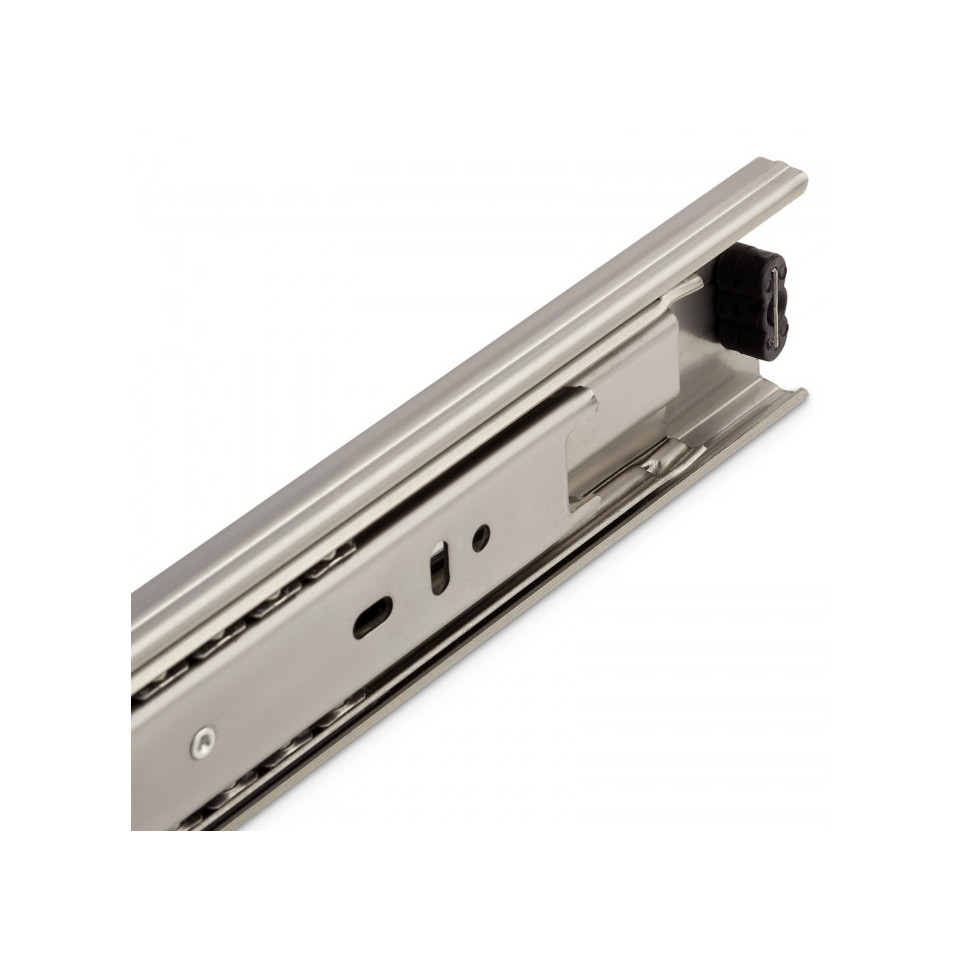

Full-extension stainless steel ball bearing runners, 700mm length and 45mm height, designed for heavy-duty drawers in environments with high corrosion risk such as marine, industrial, or outdoor applications.
Specifications
- Made from genuine SS304 stainless steel (EN 1.4301, X5CrNi18-10) for robust corrosion resistance
- All rail components, ball raceways, and balls are stainless steel; balls are magnetic due to hardness, while rails and guides are non-magnetic
- Load capacity per pair up to 45 kg in standard installation; reduced to 25% if mounted flat

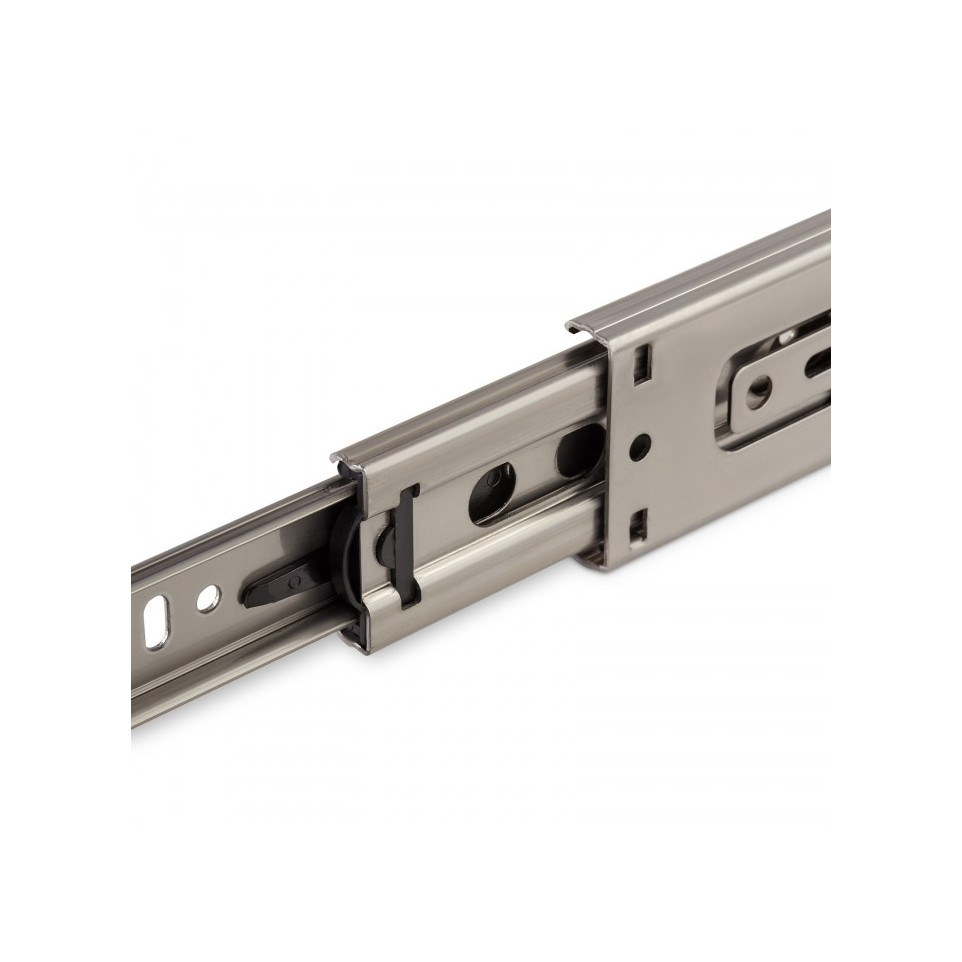

- Features a quick-release function for easy drawer removal
- Suitable for side or flat mounting
- Sea water resistant for outdoor and aggressive environments

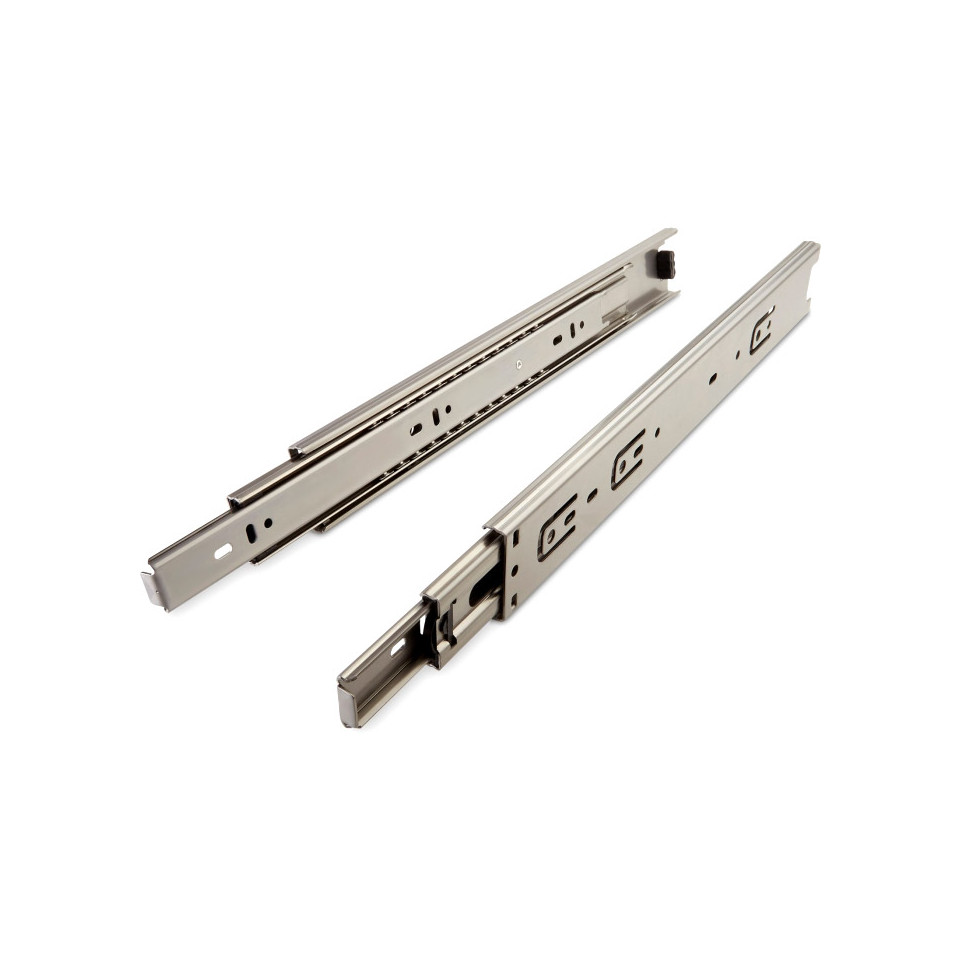

- Delivered as one left and one right runner per pair
Usage
Install these runners on either side or the base of the drawer cabinet. Full-extension design allows drawers to open completely, giving full access to the contents. The quick-release latch enables fast removal of the drawer for maintenance or rearrangement. For optimal load rating, mount vertically on the sides; flat mounting reduces weight capacity.
FAQ
- What is the maximum load capacity?
The maximum load is 45 kg per pair when mounted sidewise; flat mounting reduces it to approximately 11 kg per pair.
- Are these runners fully resistant to corrosion?
Yes, they are constructed from marine-grade SS304 stainless steel, making them suitable for high-corrosion and outdoor environments.
- Can the runners be installed flat/longitudinally?
Yes, but note the load capacity will drop to about 25% of the rated value.
- Do the runners allow the drawer to be completely removed?
Yes, the integrated quick-release function enables full drawer removal.
- Are the runners magnetic?
Rails and slides are non-magnetic, but the ball bearings are magnetic due to the hardness requirements.
