Usage

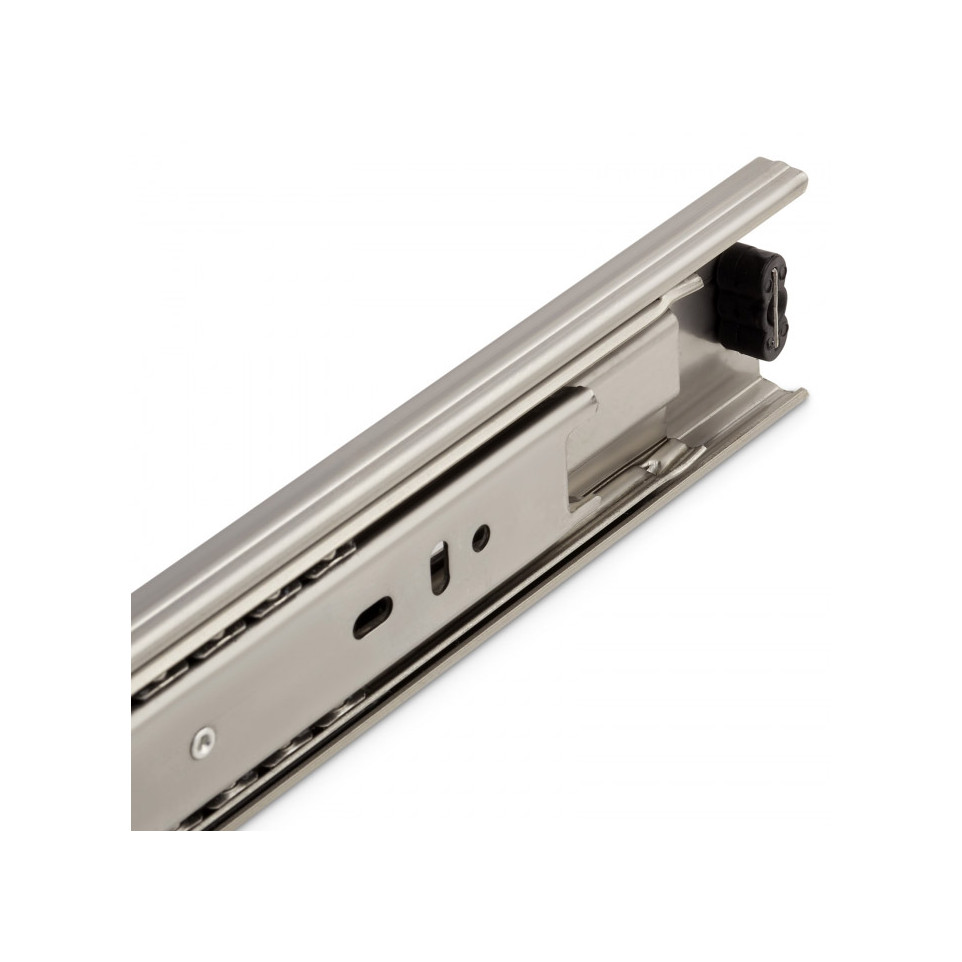

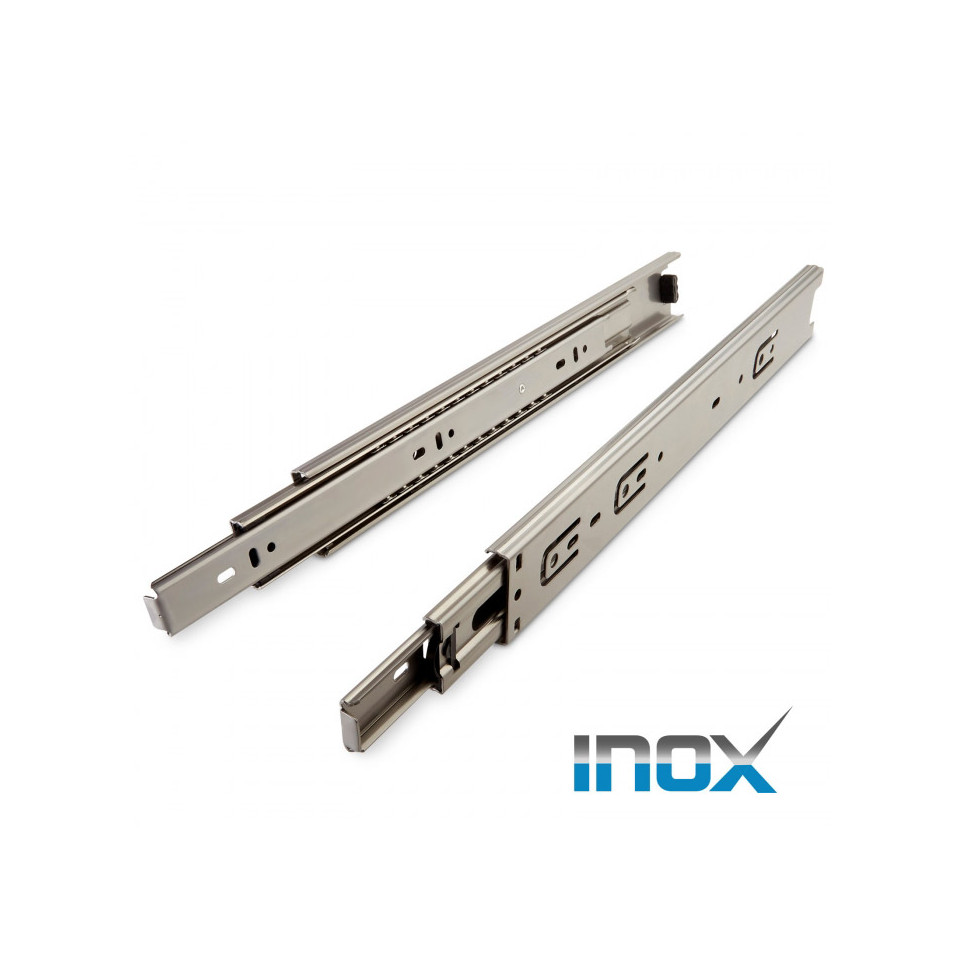

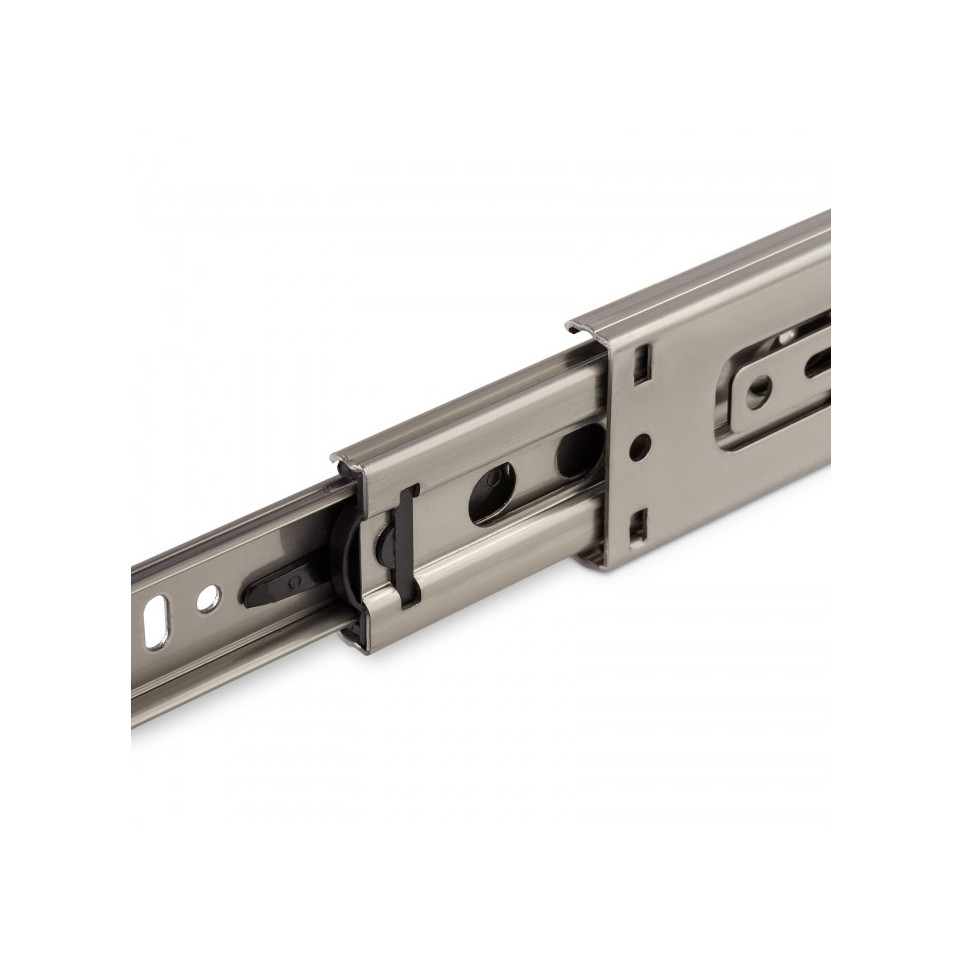

This pair of full-extension stainless steel ball bearing runners is designed for the smooth and durable support of drawers up to 400 mm long, commonly used in cabinetry, industrial equipment, and machine construction.
Advantages
- Constructed from corrosion-resistant SS304 stainless steel for long-term use in demanding environments
- Supports loads up to 45 kg per pair when mounted laterally
- Smooth sliding motion with ball bearing mechanism ensures quiet operation
- Total extension design provides complete access to drawer contents
- Magnetic balls increase hardness; rails themselves are not magnetic, which may suit specific technical needs or pose a minor limitation in some applications
Specifications
- Main rails and slide elements made from SS304 (EN 1.4301 / X5CrNi18-10), offering excellent resistance to moisture and corrosion[1][5]
- Engineered for high durability; suitable for areas exposed to humidity or corrosive agents[1][5]
- Bearing load capacity: up to 45 kg per pair (reduced to ~11 kg when mounted flat); runner length: nominally 400 mm; height: approx. 45 mm; width: approx.12.7 mm[4][5]
- Total extension allows the drawer to be fully opened along its entire depth[3][4]
How it works
The runners mount laterally on each side of a drawer, enabling it to slide smoothly outward on precision ball bearings until fully extended. This design ensures stability and ease of access even under heavy loads.
