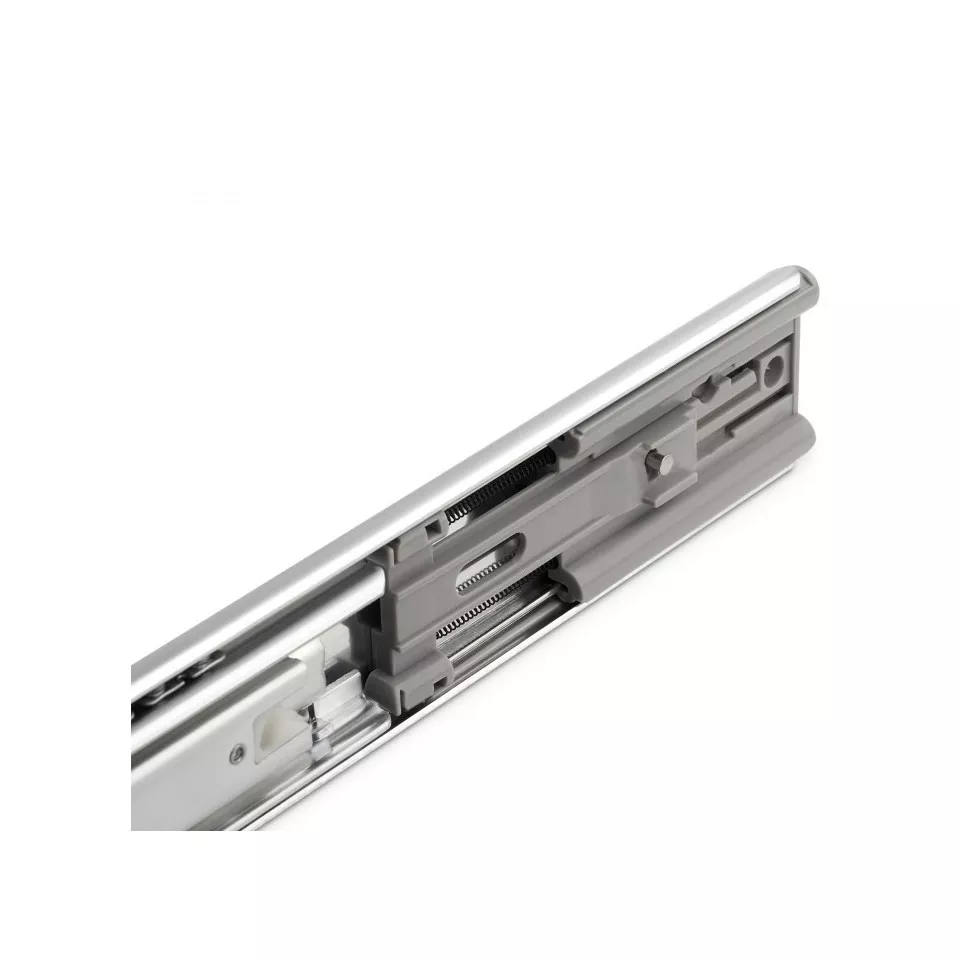

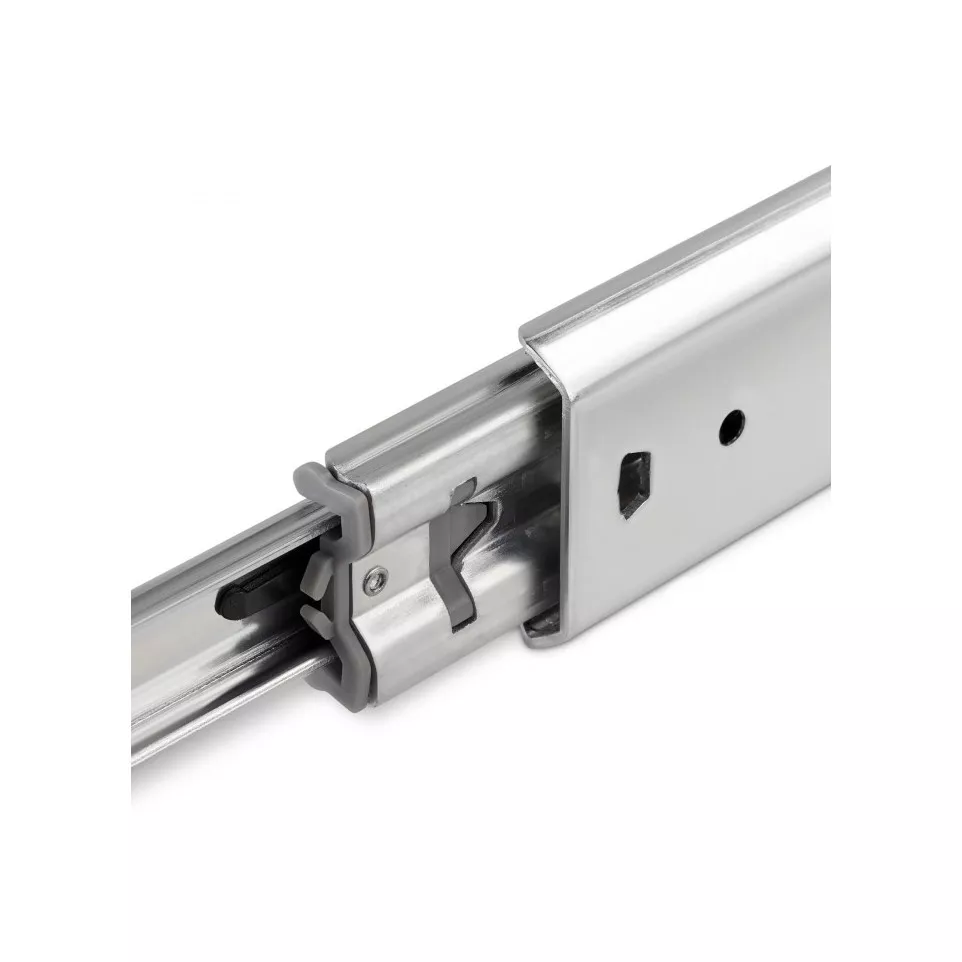

Full extension ball bearing drawer slide 250mm soft close H53 80kg per piece

Usage

This full-extension ball bearing slide is designed for drawers in furniture, cabinetry, or industrial applications where smooth operation and high load capacity are required. The integrated soft-close mechanism ensures quiet and controlled closing.

Advantages

• Soft-close technology minimizes noise and prevents slamming for safer use in home and commercial settings.
• Full extension enables complete access to the entire drawer contents, improving functionality.
• High load capacity supports up to 80 kg per piece, suitable for heavy-duty storage needs.
• Smooth ball bearing system provides effortless sliding action even under maximum load.
• The robust steel construction resists wear over repeated use; installation requires proper alignment due to precision design.

Specifications

• Constructed from galvanized or coated steel with hardened steel ball bearings for durability and corrosion resistance.
• Designed to withstand frequent opening/closing cycles; comparable models are tested beyond 100,000 cycles at rated loads[3][1].
• Total length: 250 mm; height: approximately 53 mm; maximum static load: up to 80 kg per piece (when properly mounted vertically).
• Differentiated by the integrated soft-close damper system, which uses hydraulic or pneumatic technology to ensure a controlled closure[6][9]. Full-extension design allows complete access to drawer interior[6][10].

How it works

The runner set installs on the sides of a drawer and its cabinet. When closing the drawer, an internal damping mechanism slows movement during the last segment, gently pulling it closed—reducing noise and protecting both fingers and contents from impact[6][7][9].
