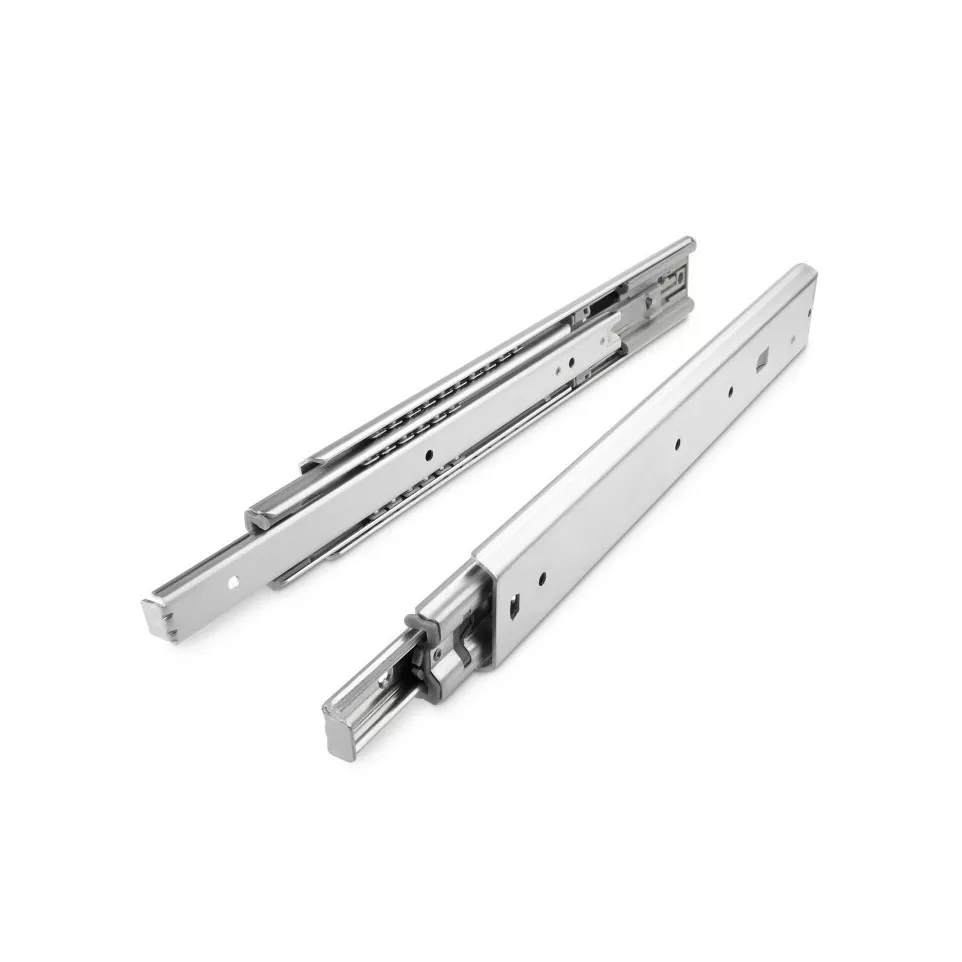

Full Extension Ball Bearing Drawer Slides 1050mm Soft Close H53 80kg per piece

Full Extension Ball Bearing Drawer Slides 1050mm Soft Close H53 80kg per piece
Full Extension Ball Bearing Drawer Slides 1050mm Soft Close H53 80kg per piece
Full Extension Ball Bearing Drawer Slides 1050mm Soft Close H53 80kg per piece
Full Extension Ball Bearing Drawer...
Full Extension Ball Bearing Drawer...
Full Extension Ball Bearing Drawer...

Estimated delivery date :  Monday 27 July
€107.22 HT
In stock (2)

Ref : FGT-248256

Variantes

Full Extension Ball Bearing Drawer Runners 1150mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Runners 1150mm Soft Close H53 80kg per piece Full extension ball bearing drawer slide 250mm soft close H53 80kg per piece Full extension ball bearing drawer slide 250mm soft close H53 80kg per piece Full extension ball bearing drawer slides 1000mm soft close H53 80kg per piece Full extension ball bearing drawer slides 1000mm soft close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 1200mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 1200mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 300mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 300mm Soft Close H53 80kg per piece Full extension ball bearing drawer slides 350mm soft close H53 80kg per piece Full extension ball bearing drawer slides 350mm soft close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 400mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 400mm Soft Close H53 80kg per piece Full extension ball bearing drawer slides 450mm soft close H53 80kg per piece Full extension ball bearing drawer slides 450mm soft close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 500mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 500mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 550mm Soft Close H53 80kg / pc Full Extension Ball Bearing Drawer Slides 550mm Soft Close H53 80kg / pc Full extension ball bearing drawer slides 600mm soft close H53 80kg per piece Full extension ball bearing drawer slides 600mm soft close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 650mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 650mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 700mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 700mm Soft Close H53 80kg per piece Full extension ball bearing drawer slides 800mm soft close H53 80kg per piece Full extension ball bearing drawer slides 800mm soft close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 850mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 850mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 950mm Soft Close H53 80kg per piece Full Extension Ball Bearing Drawer Slides 950mm Soft Close H53 80kg per piece Full Extension Soft Close Ball Bearing Drawer Slide 900mm H53 80kg per piece Full Extension Soft Close Ball Bearing Drawer Slide 900mm H53 80kg per piece Full Extension Soft Close Ball Bearing Drawer Slides 1100mm H53 80kg per piece Full Extension Soft Close Ball Bearing Drawer Slides 1100mm H53 80kg per piece Full Extension Soft Close Ball Bearing Drawer Slides 750mm H53 80kg per piece Full Extension Soft Close Ball Bearing Drawer Slides 750mm H53 80kg per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

This full-extension ball bearing runner is designed for heavy-duty drawers in furniture, industrial settings, or machine construction where smooth, silent operation and high load capacity are required.

Advantages

  • Smooth and quiet drawer movement thanks to integrated soft-close technology.
  • Full extension allows complete access to the entire drawer length of 1050 mm.
  • Robust construction supports up to 80 kg per piece for heavy-duty applications.
  • Total height of 53 mm enables installation in a wide variety of drawer types and sizes.
  • If installed flat (horizontally), the load capacity decreases to approximately 25% of the maximum value—plan accordingly for your application.[1][3]

Specifications

  • Design: Side-mount ball bearing runner system with steel galvanization for rust resistance and durability.[1][4]
  • Bearing Material: Hardened steel ball bearings ensure smooth sliding under significant loads.[1]
  • Total length: 1050 mm  •  Height: 53 mm  •  Maximum load per unit: up to 80 kg (vertical installation).

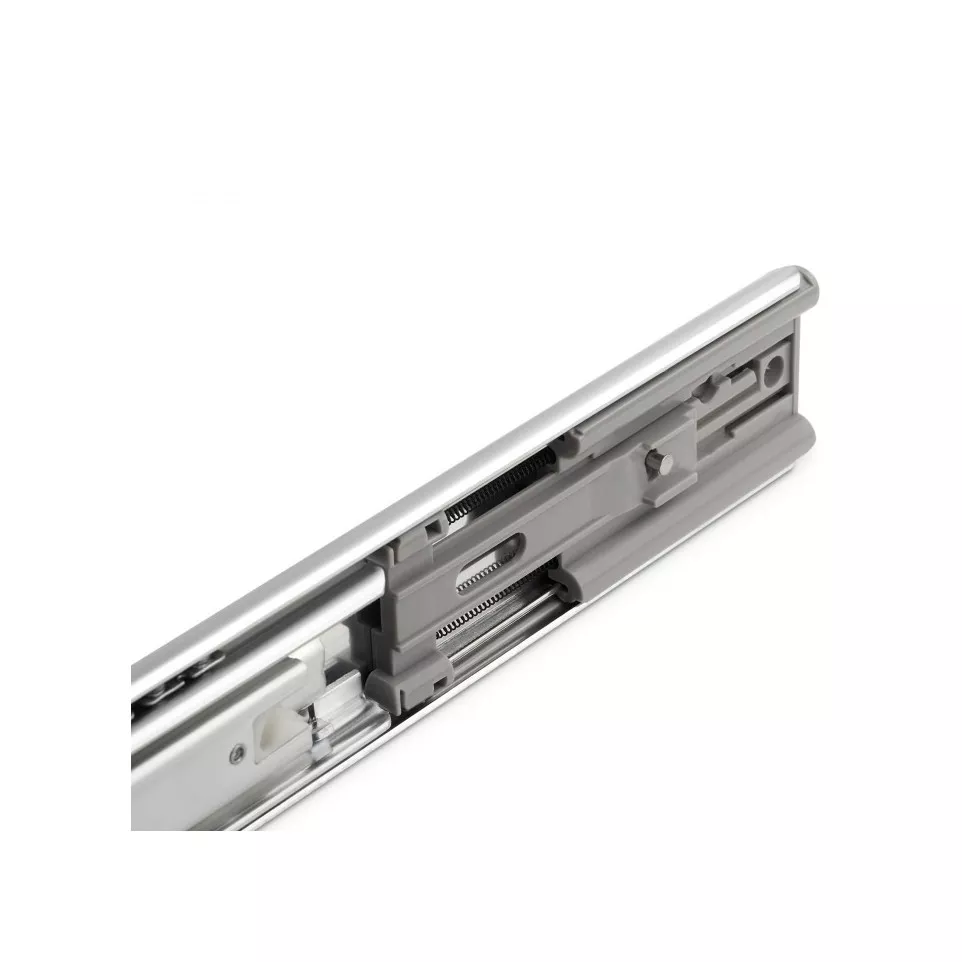

  • Soft-close mechanism prevents slamming by gently pulling drawers closed over the last centimeters of travel.[6][7]

How it works

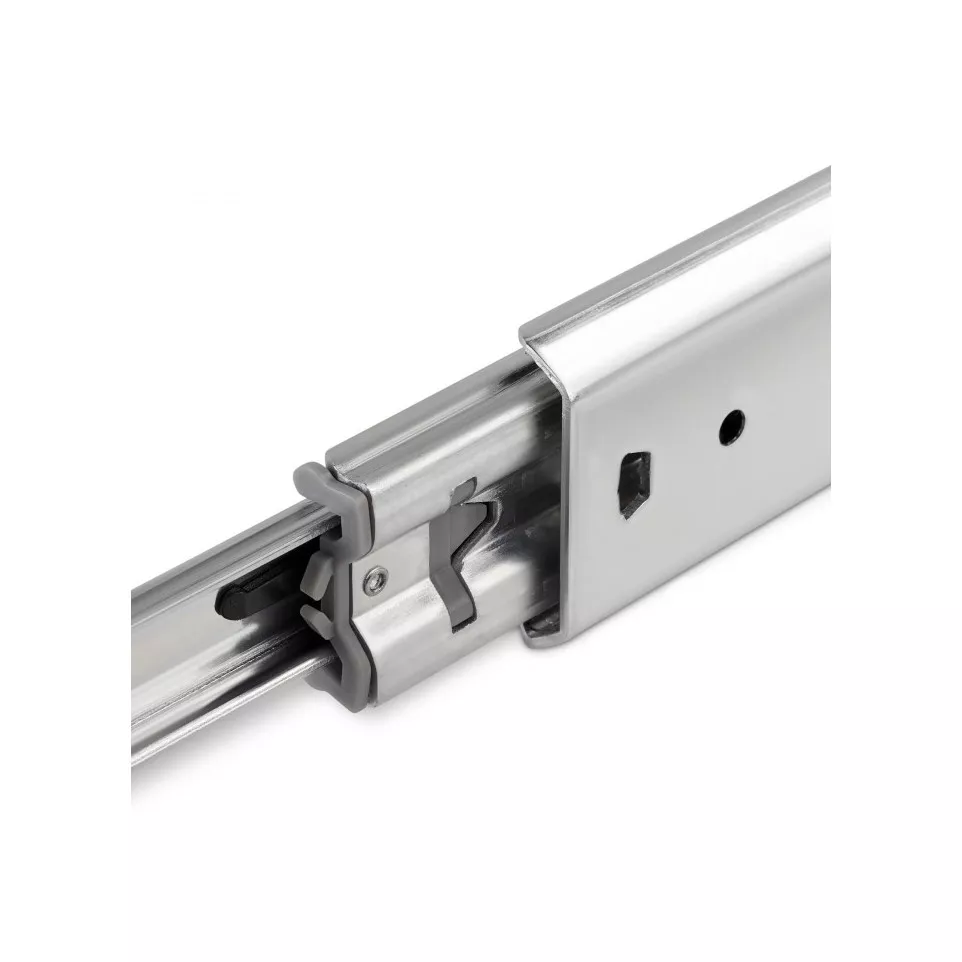

The slide consists of telescopic rails with hardened steel bearings that provide full extension. The built-in soft-close system slows the closing motion using a dampened mechanism, automatically drawing the drawer shut for quiet and safe operation without slamming or accidental finger pinching.[6][9][10]

See more

Product Details

Brand Autre
Thickness (mm) 19,50
Height (mm) 53,40
Load capacity (kg) 80
Nominal length (mm) 1.050
Output type totale
