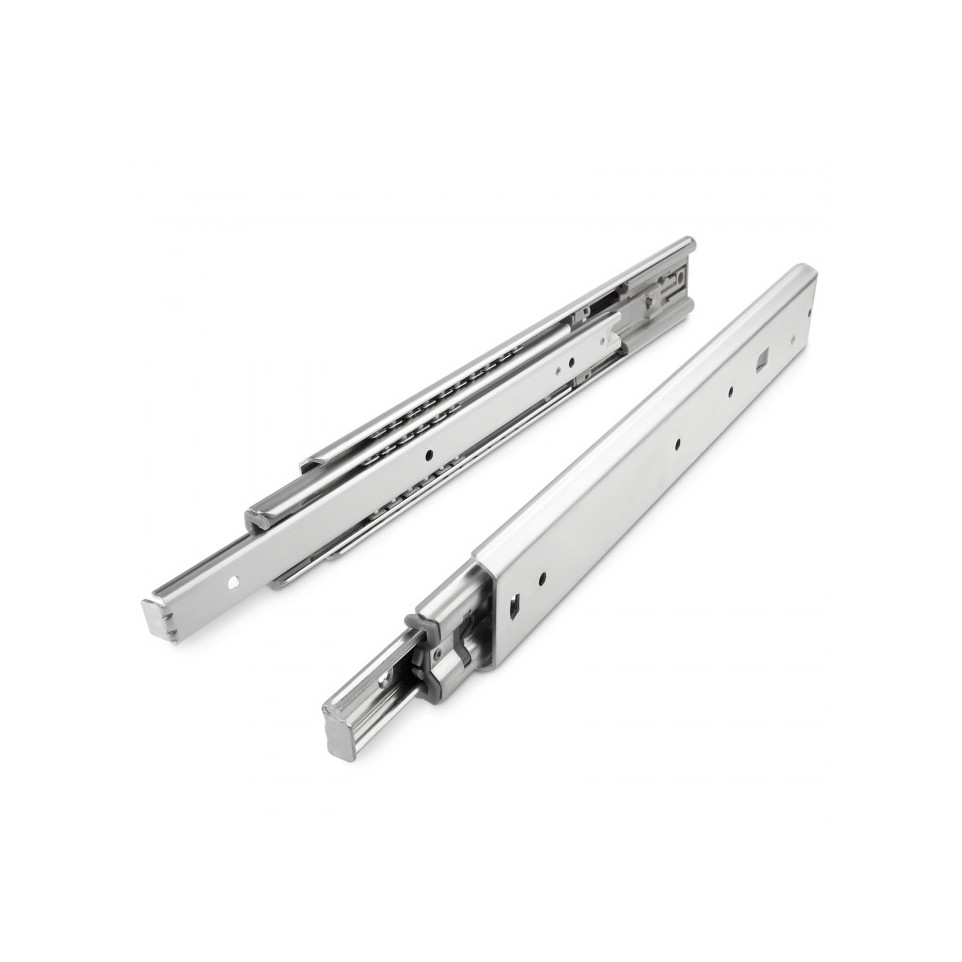

Full extension ball bearing drawer slides 600mm soft close H53 80kg per piece

Usage

The 600mm full-extension ball bearing runners with soft-close are designed for heavy-duty drawers in kitchen, industrial, workshop, or office furniture, ensuring smooth and silent closure even under substantial loads.

Advantages

• Supports loads up to 80 kg per pair for robust storage solutions.
• Soft-close mechanism prevents slamming and reduces noise during use.
• Total extension allows complete access to drawer contents.
• Toughened steel construction ensures durability and lasting performance.
• If installed horizontally (flat), load capacity decreases to approximately 25% of vertical mounting value.

Specifications

• Manufactured from galvanized steel with hardened steel ball bearings for smooth glide and corrosion resistance[4].
• Engineered for high-duty cycles; tested beyond tens of thousands of open/close actions[3][4].

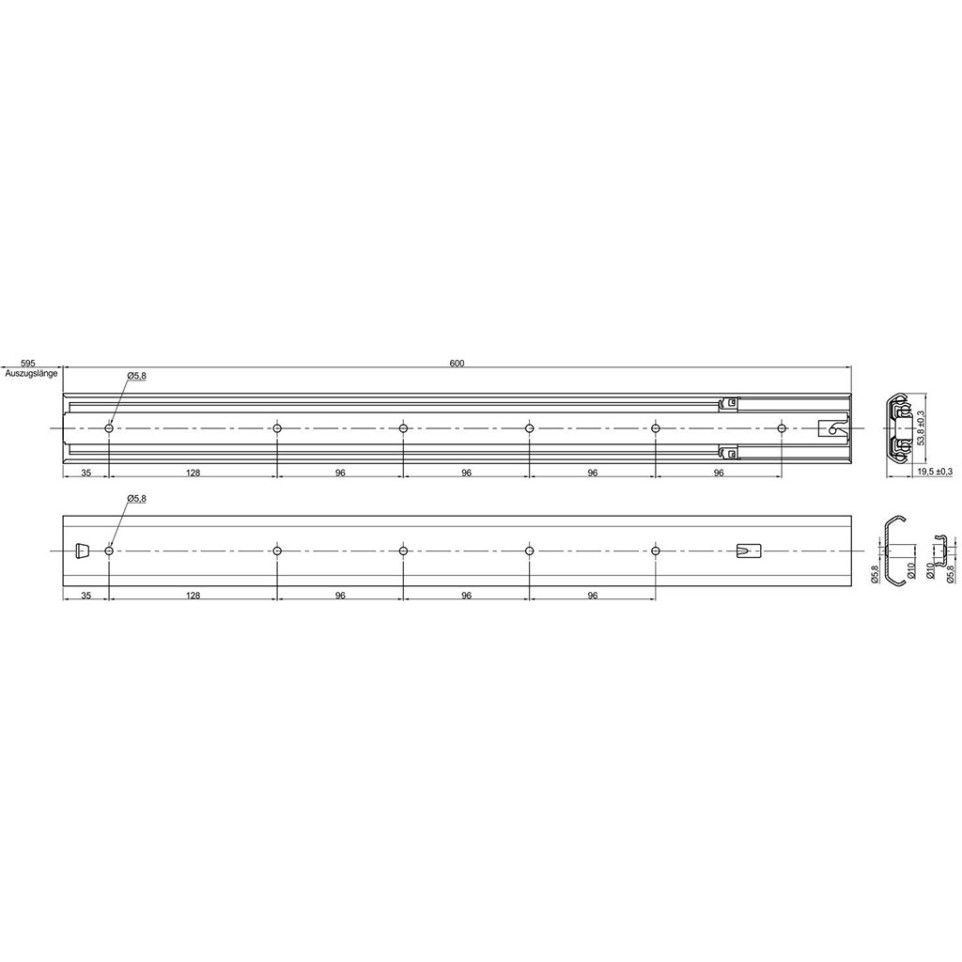

• Total length: 600 mm; Height: typically around H53 mm; Load capacity: up to 80 kg per pair when mounted vertically[4].

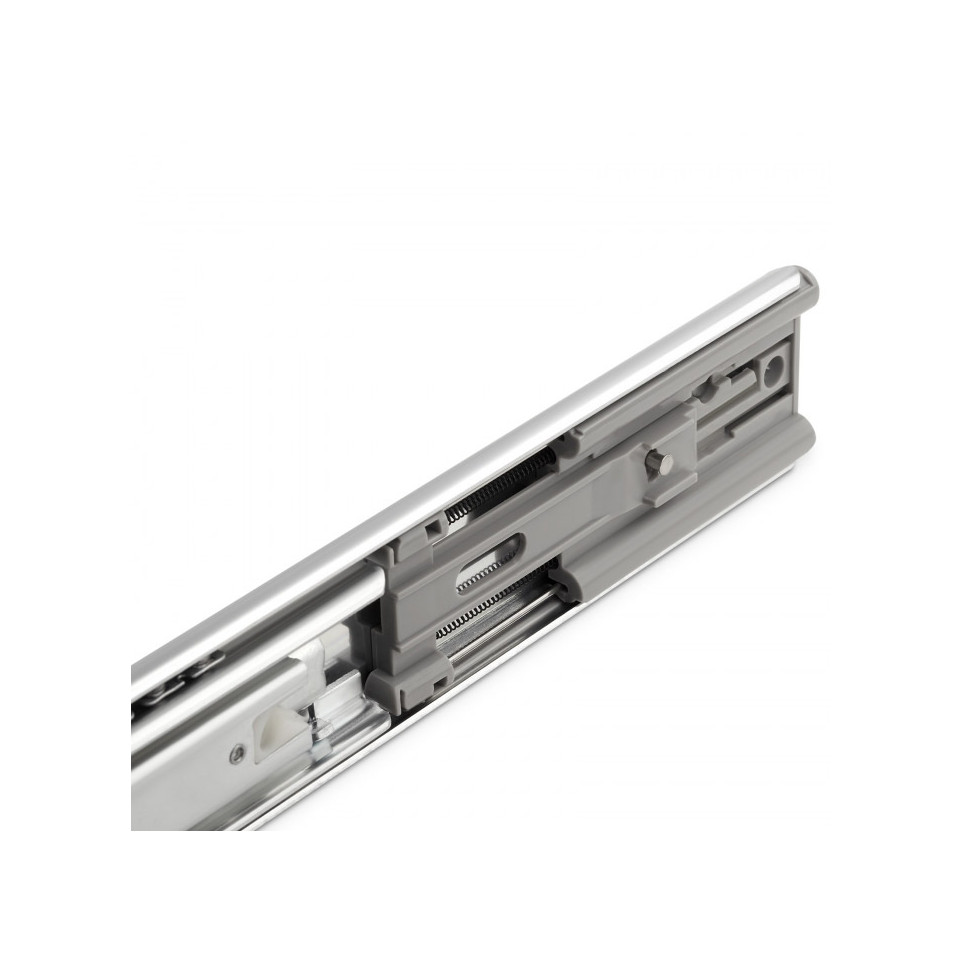

• Dampening system integrated within runner housing delivers controlled, gentle closing action—distinguishing it from standard or self-closing slides[6][7]. Full extension design maximizes practical drawer space and accessibility[6]. Soft-close function uses hydraulic or pneumatic dampers concealed within the slide assembly for a seamless appearance and operation[6][9]
.

How it works

This runner set operates on ball bearings for stable drawer movement. As the drawer closes, an internal soft-close damper activates automatically, slowing the motion with hydraulic assistance so the drawer closes quietly without slamming—even when fully loaded or closed forcefully[6][9]. Installation is side-mounting, suitable for new furniture builds or retrofits in demanding environments.
