Usage

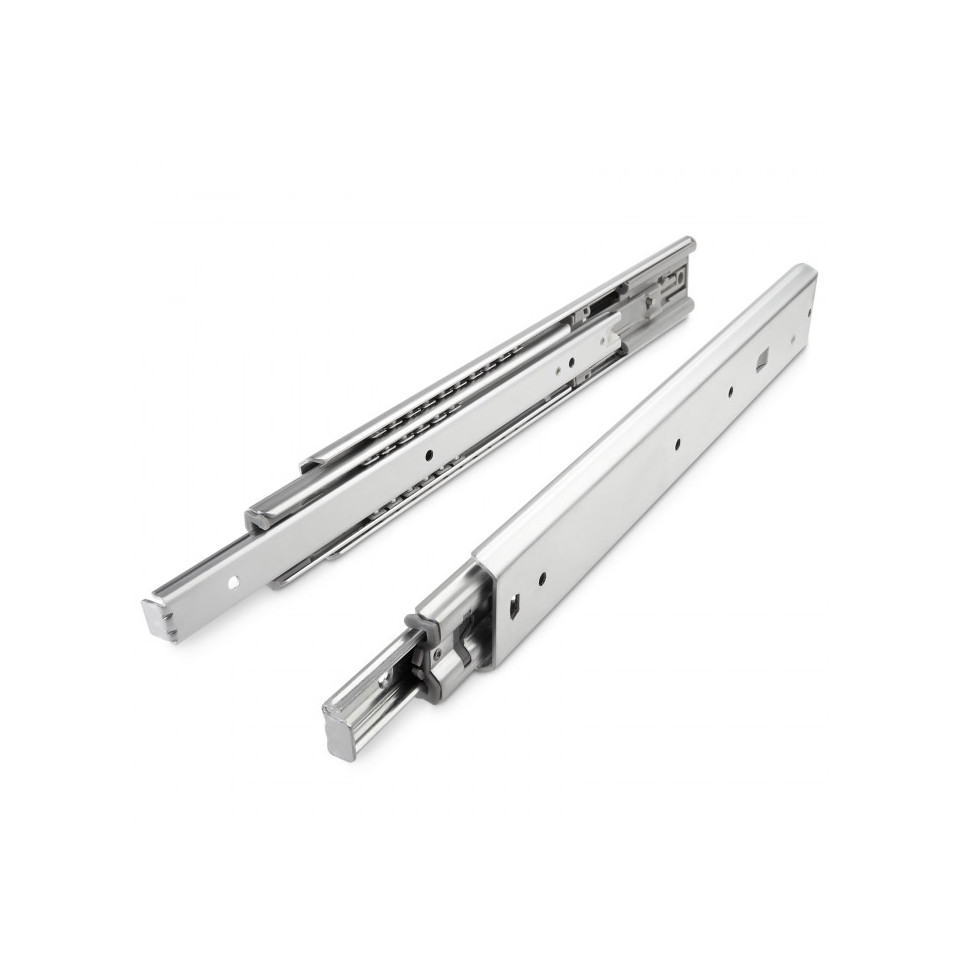

This full-extension soft-close ball bearing runner is designed for heavy-duty drawers up to 850mm in length, commonly used in furniture manufacturing, industrial applications, and machine construction where smooth and controlled drawer movement is essential.
Advantages
- Soft-close mechanism ensures silent and gentle drawer closure, preventing slamming.
- Total extension allows complete access to the entire drawer space for optimal usability.
- High load capacity of up to 80 kg per piece supports heavy contents securely.
- Industrial-grade steel with corrosion-resistant finish increases durability in demanding environments.
- If mounted horizontally (flat), the load capacity reduces to approximately 25% of its nominal value.
Specifications
- Constructed from galvanized steel with hardened steel ball bearings for reliable sliding action.[3]
- Cyclic tested for longevity; designed to withstand repeated use over thousands of open/close cycles.[1][3]
- Total slide length: 850mm; height: approximately H53mm; supports up to an 80kg dynamic load when installed vertically.[3]
- Differentiating features include a full-extension design and integrated soft-close dampening system ensuring smooth operation under high loads.[6][7]
How it works

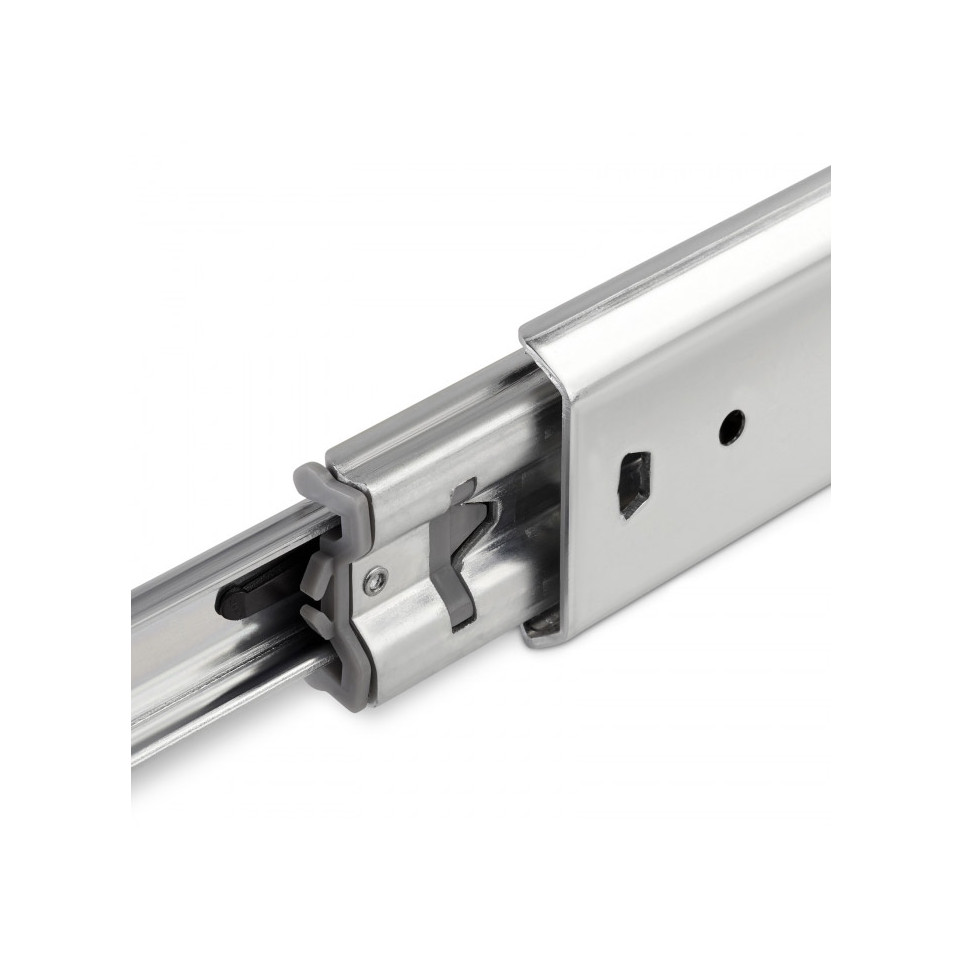

The ball bearing runners utilize a three-part telescopic rail system with an integrated soft-close hydraulic damper. When the drawer is pushed closed, the mechanism slows its speed toward the end of travel, pulling it gently shut without noise or impact. The full extension provides unobstructed access throughout the entire depth of your storage space.[6][7]
