Usage

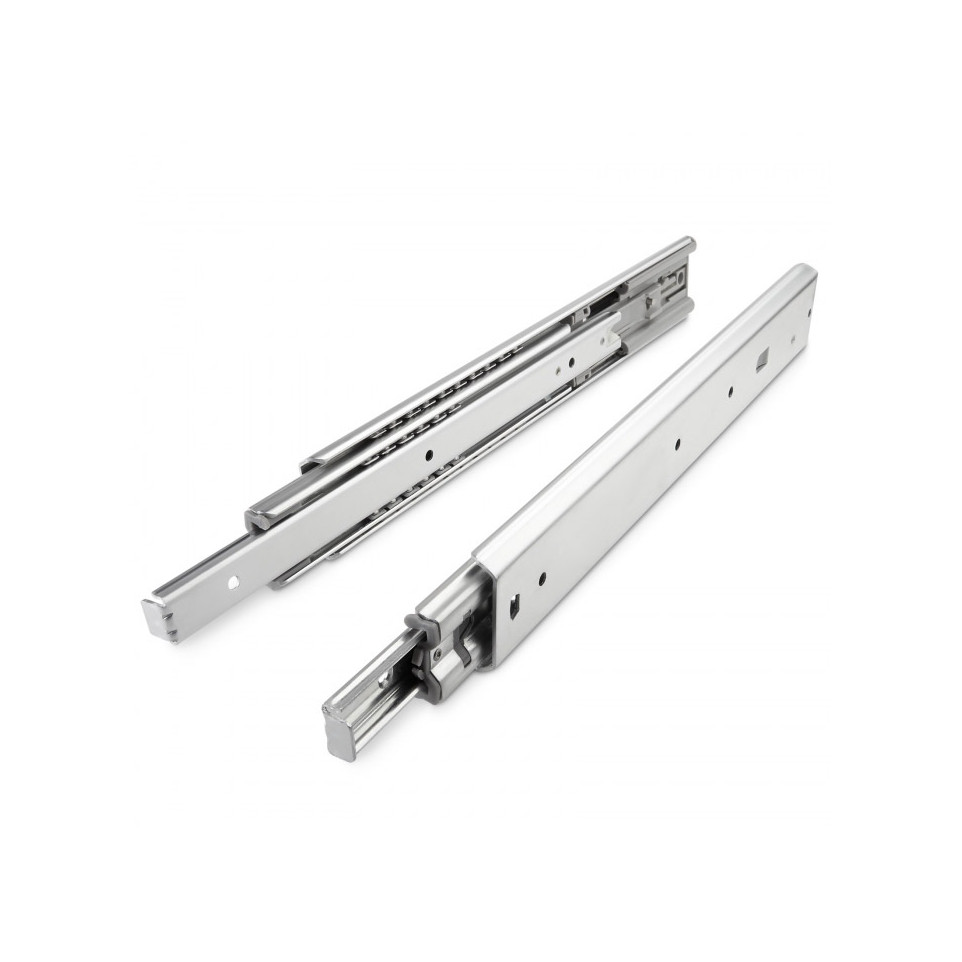

This pair of 950mm full-extension soft close ball bearing slides is designed for heavy-duty drawers in furniture, cabinetry, or industrial storage. It supports large drawers that require smooth operation and reliable closure.
Advantages
- Soft-close mechanism ensures gentle, quiet closing and prevents slamming.
- Full-extension design allows complete access to the drawer contents.
- Bearing system provides smooth glide even under heavy loads up to 80 kg per pair.
- Durable construction with galvanized steel and hardened steel ball bearings resists wear and corrosion.
- If installed flat (horizontally), load capacity reduces to approximately 20 kg per slide due to support geometry limitations.
Specifications
- Made from galvanized steel with precision-hardened ball bearings for longevity and reliability.
- Smooth operation tested for up to 100,000 open/close cycles at maximum rated load; commonly used in demanding environments such as industrial workshops or commercial furniture production.[4][1][2]
- Total length: 950 mm; height: approximately 53 mm; each slide supports up to an impressive load of about 80 kg when mounted vertically.[2]

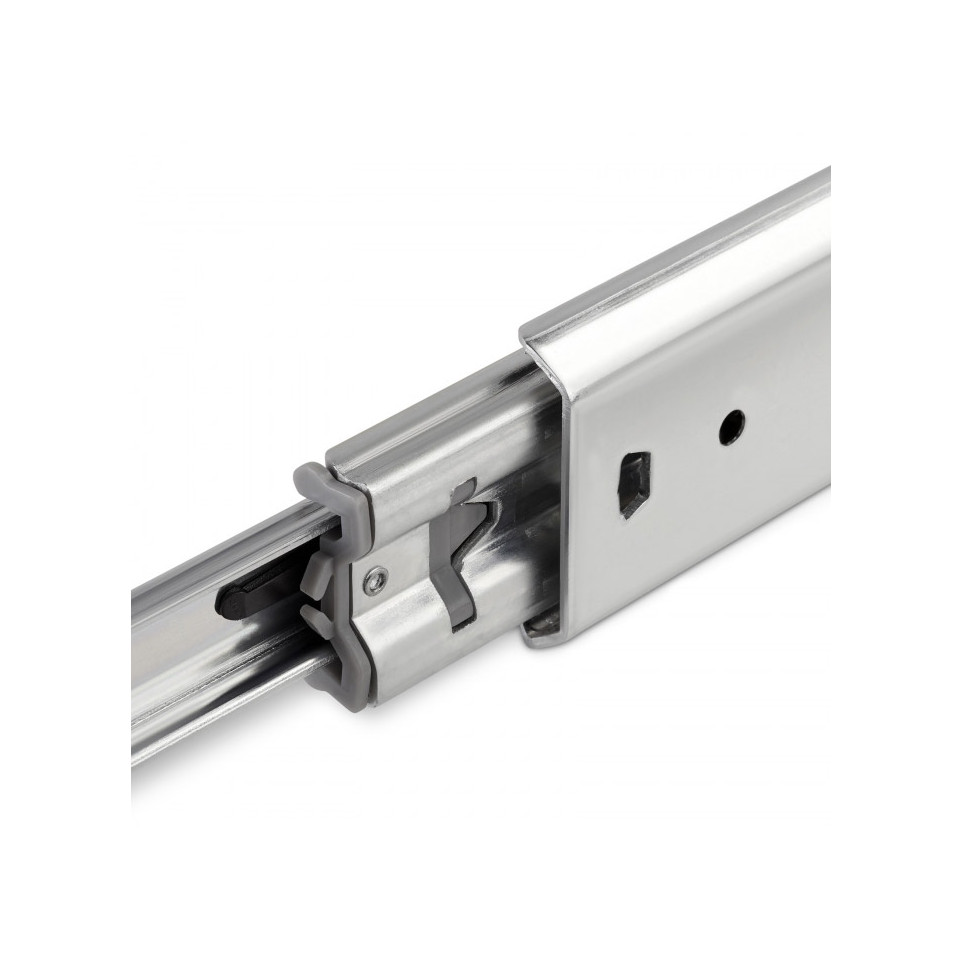

- Dampened soft-close system integrated for enhanced user comfort and protection against drawer impact damage.[6][7]
How it works
The slides mount on each side of the drawer using pre-drilled holes. As the drawer is pushed shut, a hydraulic dampening mechanism slows movement over the final centimeters before two springs pull it gently closed, preventing both noise and rapid impact. The full extension feature allows every part of the drawer interior to be accessed when opened fully.[6][7]
