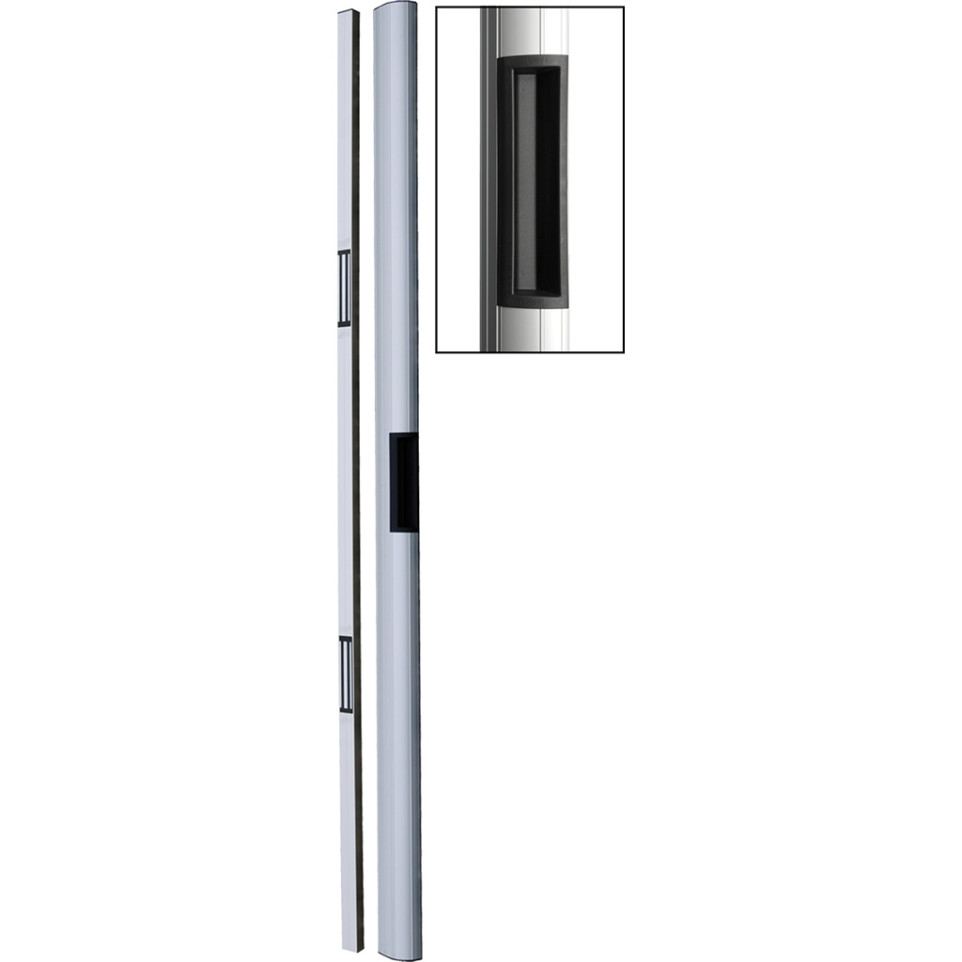

DIAX BO600RP3M Electromagnetic Locking Strip with Integrated Suction Cups and Signage 300kg 3m

Product

This profile strip with integrated DIAX BO600RP3M suction cups is a 3-meter, aluminum and polymer unit designed for secure access control on metal, wood, or glass doors. It is ideal for renovation projects requiring robust electromagnetic holding force and straightforward installation.

Specifications

• Constructed from anodized aluminum with a polymer handle, available in custom RAL colors on request
• Retention force: 300 kg per suction cup (600 kg total for two), suitable for high-security needs
• Pre-drilled, adjustable profiles for versatile mounting across different door types
• Equipped with pre-installed terminal blocks on the technical post for quick electrical connections
• Temperature range: -20°C to +70°C for reliable operation in varied environments
• Power requirements: 12/24 V DC; 550 mA per suction cup at 12 V, 278 mA at 24 V
• Covers previous installations with a wide profile and includes HRV clip-on screw covers and end caps for a clean finish
• Technical post features a two-part structure: wall support with suction cups and a clip-on cover

Usage

Install the profile strip on metal, wood, or glass doors for secure electromagnetic locking. The wide, pre-drilled profile conceals past installation marks, while integrated suction cups and terminal blocks streamline setup. Optionally, adapt for glass doors or height differences with accessory kits; cable routing is made discreet with supplied covers.

FAQ

1. Can this product be installed on any type of door?
   Yes, it is compatible with metal, wood, and glass doors using the appropriate optional profile or kit.

2. What is the total holding force of the two integrated suction cups?
   The combined holding force is 600 kg (300 kg per suction cup), suitable for demanding security applications.

3. Is the product suitable for outdoor installation?
   The anodized aluminum build and wide operating temperature range allow use in varied environments, including exteriors, provided the installation is protected from direct weather exposure.

4. How is the product powered?
   It operates on 12 or 24 V DC; each suction cup requires 550 mA at 12 V or 278 mA at 24 V.

5. Are there accessories to adapt this profile to specific installation challenges?
   Yes, optional profiles allow mounting on glass doors, and the REOMA kit compensates for height differences or provides an aesthetic cable passage solution.
