Timer for Diax Electromagnetic Lock / pc
€67.87
In stock
Usage
The DIAX BO900RP 3V profile handle with integrated suction cups is designed for secure access control on doors, ideally suited for public buildings, schools, and other environments requiring robust electromagnetic locking.
Advantages
- High holding force ensures superior security for demanding applications.
- Three integrated monitored electromagnetic locks enable reliable and tamper-detecting locking.
- Sleek architectural handle combines form and function for modern installations.
- Can be installed on new or existing doors and used externally or internally.
- The unit can be cut to size to fit various door widths if required.
Specifications
- Aluminium profile housing fitted with three monitored electromagnetic magnets (300 kg each) for a total holding force of up to 900 kg.[1][2]

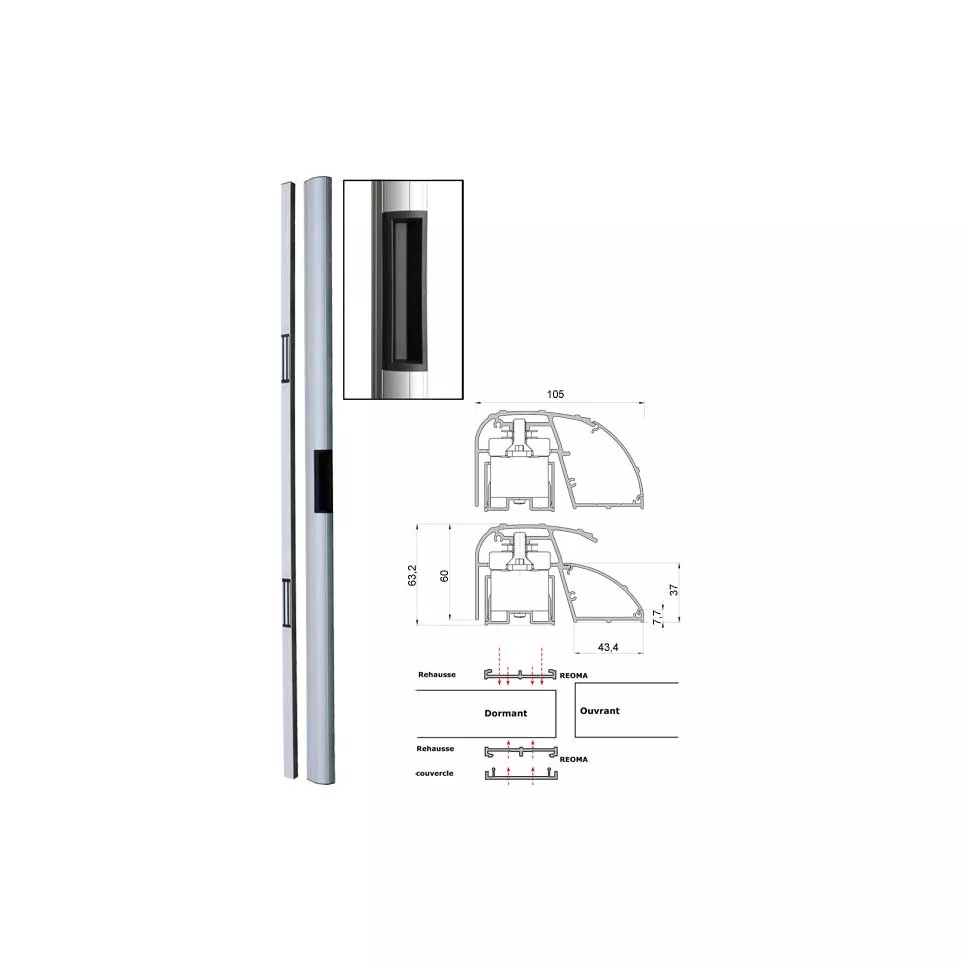

- Dimensions: 2500 mm (length) x 105 mm (width) x 43 mm (depth). Finish can be customized in different RAL colors.[1][5]
- Suitable for external installation; vandal-resistant design enhances durability.[1][4]
- Differentiating feature: integrated monitoring of lock status offers increased security control.[1]
How it works
The handle mounts directly onto the door frame. When powered, its three internal electromagnets secure the door by attracting corresponding armature plates. The system releases instantly when power is cut or authorized access is granted, allowing seamless entry or exit.[1][2]
