Timer for Diax Electromagnetic Lock / pc
€67.87
In stock
Usage

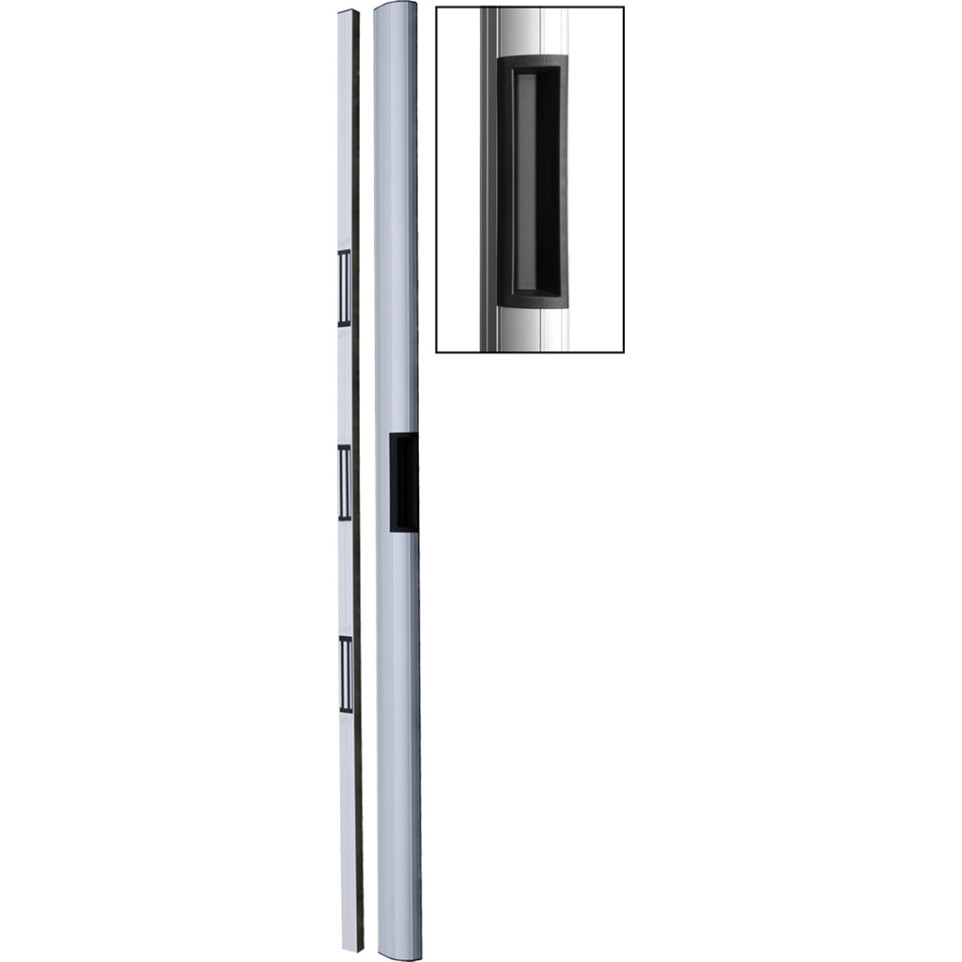

The DIAX BO900RP3M profile with integrated electromagnetic suction cups enables secure door locking and access control for renovations or new installations on metal, wood, or glass doors.
Advantages
- Covers previous installations thanks to wide profile design.
- Supports versatile mounting on metal, wood, and glass doors.
- Integrates three pre-installed suction cups for a total retention force of 900 kg.
- Features built-in signalisation contact (RR) for status monitoring.
- Simplifies wiring through pre-installed terminal blocks and adjustable pre-drilled profiles.
Specifications
- Anodized aluminum body with snap-on covers and polymer handle (custom RAL colors available by order).
- Operating temperature from -20 °C to +70 °C. Adjustable profile ensures compatibility with various installation needs.
- Total retention force: up to 900 kg across three suction cups. Power supply: selectable between 12/24 V DC. Consumption per cup: up to 550 mA at 12 VDC / 278 mA at 24 VDC. Profile length: 3 meters. Handle coverage width: 60 mm.
- Differentiating features include technical post with snap-on wall bracket/cap, discreet cable routing option using accessory kit, and dedicated glass door mounting profiles available separately.
How it works
The anodized aluminum profile mounts above or along the door frame. When powered (12/24V DC), the integrated electromagnets lock the door by attracting counterplates in the handle bar section, ensuring strong holding force until released via authorized access control or power-off event.
