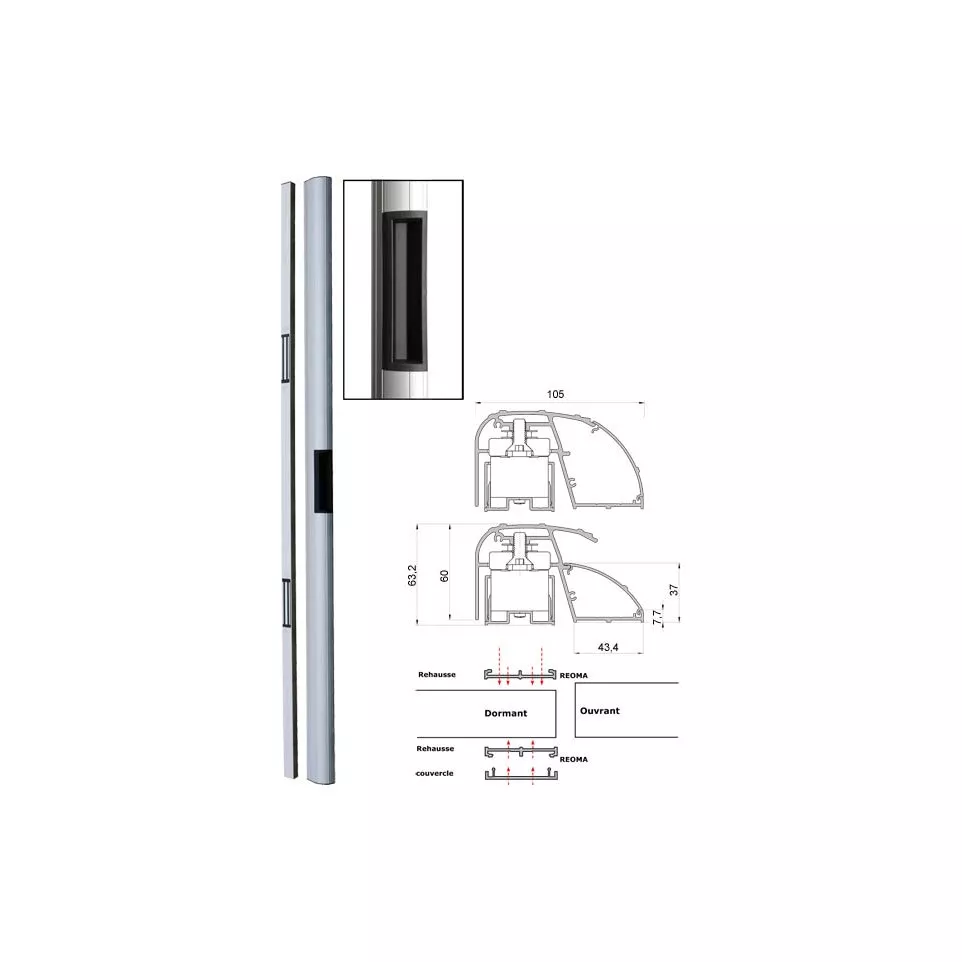

CDVI DIAX BO600RP Profile Handle with 2 Suction Mounts per piece

CDVI DIAX BO600RP Profile Handle with...

Estimated delivery date :  Tuesday 9 June
€497.22 HT
In stock

Ref : FGT-806151

Variantes

2500 mm Extension Kit for BO600RP and BO900RP Panels / pc 2500 mm Extension Kit for BO600RP and BO900RP Panels / pc 600 mm Height Extension Kit for P300RP and P600RP Handle Bar / pc 600 mm Height Extension Kit for P300RP and P600RP Handle Bar / pc CDVI Diax BO600RP Magnetic Architectural Pull Handle with Two 300kg Magnets per piece CDVI Diax BO600RP Magnetic Architectural Pull Handle with Two 300kg Magnets per piece CDVI DIAX BO900RP Profile Handle with 3 Suction Magnets per Piece CDVI DIAX BO900RP Profile Handle with 3 Suction Magnets per Piece DIAX BO600RP3M Electromagnetic Locking Strip with Integrated Suction Cups and Signage 300kg 3m DIAX BO600RP3M Electromagnetic Locking Strip with Integrated Suction Cups and Signage 300kg 3m DIAX Magnetic Bar Profile with Integrated Suction Pads and Signaling 3 Suction Pads 300kg per 3m DIAX Magnetic Bar Profile with Integrated Suction Pads and Signaling 3 Suction Pads 300kg per 3m DIAX PBO300RP profile strip with integrated suction cups (1 suction cup) / pc DIAX PBO300RP profile strip with integrated suction cups (1 suction cup) / pc
Quantity

Add to your shopping List

You must be logged


Related Products

Description

Product

The DIAX PBO600RP profile with integrated suction cups is an aluminium and polymer handle rail solution for electromagnetic locking on doors. Designed for metal, wood, or glass frames, this product is ideal for renovation projects needing secure and seamless integration.

Specifications

  • Constructed with an anodized aluminium rail and polymer handle, available in custom RAL colours upon request.
  • Durable, supports electromagnetic retention force up to 600 kg per profile.
  • Compatible with 12/24 Vdc power supply; each suction cup uses 550 mA (12 Vdc) or 278 mA (24 Vdc).
  • Functions in extreme temperatures from -20°C to +70°C.
  • Features pre-drilled, adjustable profiles, concealed terminal blocks, and clip-on covers for neat finishes.
  • Includes wall bracket with suction cups and cover, handle with counterplates, screw caps, and sealed ends.
  • Adaptable options, such as mounting on glass doors with UBK/U 2.5 and height adjustment kits for flush installation and cable concealment.

Usage

Install the DIAX PBO600RP on new or existing doors by securing the pre-drilled aluminium profile using the supplied hardware. Electrical connections are made through the pre-installed terminal block, powering the suction cups which activate the electromagnetic locking mechanism for secure closure. Suitable for use in both private and public buildings, especially in renovation scenarios where coverage of previous installations is required.

FAQ

  1. How much retention force does each suction cup provide?

    • Each profile supports up to 600 kg of electromagnetic holding force.

  2. Is this product suitable for glass doors?

    • Yes, installation on glass doors is possible with the compatible UBK/U 2.5 profile option.

  3. What are the electrical requirements for the suction cups?

    • Operation is possible at 12 or 24 Vdc, with current draw per suction cup at 550 mA (12 Vdc) or 278 mA (24 Vdc).

  4. Can the product be used in outdoor or harsh environments?

    • The product withstands temperatures from -20°C to +70°C, and the anodized aluminium provides resistance to weathering.

  5. Are the profiles adjustable for different installations?

    • Yes, the profiles are pre-drilled and adjustable, ensuring compatibility with various door types and renovation needs.

mvm-dt-2025-07-07

See more

Product Details

Brand Cdvi
Description PBO600RP (2 ventouses)
Height (cm) 60
Retention force (kg) 600
Signalling contact (RR) Contact de signalisation
FGT-806151
New
