Usage
The Charnière invisible réglable Argenta medium is a concealed hinge designed for doors with a minimum thickness of 37 mm, offering seamless integration and aesthetic appeal for interior door installations.
Advantages
- Completely invisible when the door is closed, enhancing minimalist design aesthetics.
- 3D adjustable for precise height, width, and depth alignment without removing the door.
- Capable of supporting doors weighing up to 40 kg (with two hinges) or up to 55 kg (with three hinges).
- Durability proven through cycle testing of at least 200,000 opening and closing movements.
- The hinge’s innovative design ensures finger protection by maintaining minimal gaps between the door and frame.
Specifications
- Material: Zamak for strength and longevity; finished in options such as matt chrome for a sleek look.

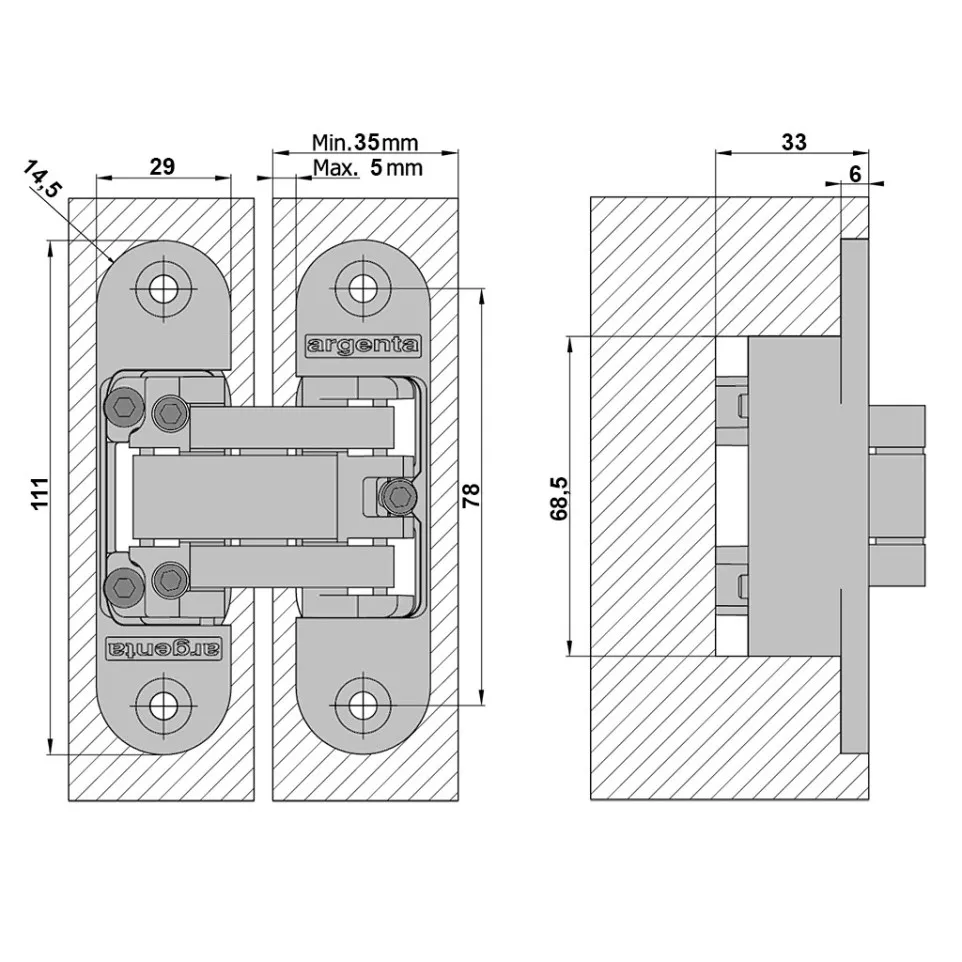

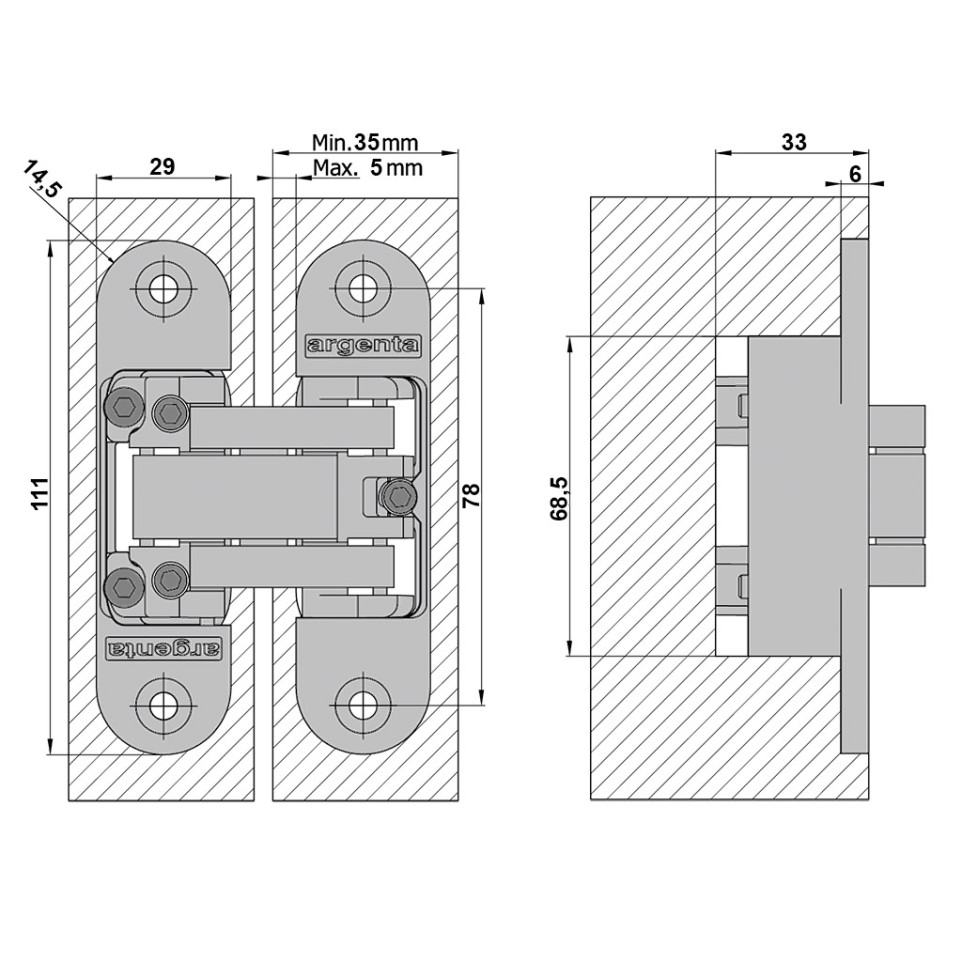

- Milling Dimensions: Door panel dimensions: length –111 mm; width –29 mm. Depth: frame –35.5 mm; door –36.5 mm.
- Aperture: Provides an impressive opening angle of up to 180° for unrestricted movement.
- Add-On Features: Fully supported on lubrication-free synthetic joints; reversible use suitable for left- or right-opening doors with compact dimensions ensuring broad compatibility across applications.
How it works
This invisible hinge features a straightforward "Easy-Hook" installation system that allows one person to mount it quickly. Its adjustable settings enable precise alignment in all three dimensions—height, width, and depth—without requiring removal of the door itself during adjustments. The result is a seamless fit where doors sit flush with walls while delivering smooth operation over years of use.
