Argenta Aluminum Hinge 80x80 mm Left Brown RAL 8022 / pc

Argenta Aluminum Hinge 80x80 mm Left Brown RAL 8022 / pc
Argenta Aluminum Hinge 80x80 mm Left Brown RAL 8022 / pc
Argenta Aluminum Hinge 80x80 mm Left...
Argenta Aluminum Hinge 80x80 mm Left...

Estimated delivery date :  Tuesday 9 June
€1.66 HT
In stock

Ref : FGT-124853

Variantes

Argenta 80x80 mm Aluminum Hinge Red RAL 3003 Right / pc Argenta 80x80 mm Aluminum Hinge Red RAL 3003 Right / pc Argenta Aluminium Hinge 80x80 Bordeaux RAL 3007 Right / pc Argenta Aluminium Hinge 80x80 Bordeaux RAL 3007 Right / pc Argenta Aluminium Hinge 80x80 mm Blue RAL 5002 Right / pc Argenta Aluminium Hinge 80x80 mm Blue RAL 5002 Right / pc Argenta Aluminium Hinge 80x80 mm Green RAL 6012 Right / pc Argenta Aluminium Hinge 80x80 mm Green RAL 6012 Right / pc Argenta Aluminum Hinge 80x80 A Blue RAL 5002 Left / pc Argenta Aluminum Hinge 80x80 A Blue RAL 5002 Left / pc Argenta Aluminum Hinge 80x80 A Green RAL 6012 Left / pc Argenta Aluminum Hinge 80x80 A Green RAL 6012 Left / pc Argenta Aluminum Hinge 80x80 A Pearl White RAL 1013 Left / pc Argenta Aluminum Hinge 80x80 A Pearl White RAL 1013 Left / pc Argenta Aluminum Hinge 80x80 A Yellow RAL 1004 Left / pcs Argenta Aluminum Hinge 80x80 A Yellow RAL 1004 Left / pcs Argenta Aluminum Hinge 80x80 A Yellow RAL 1044 Right / pc Argenta Aluminum Hinge 80x80 A Yellow RAL 1044 Right / pc Argenta Aluminum Hinge 80x80 Bordeaux RAL 3007 Left / pc Argenta Aluminum Hinge 80x80 Bordeaux RAL 3007 Left / pc Argenta Aluminum Hinge 80x80 mm Black RAL 9005 Left / piece Argenta Aluminum Hinge 80x80 mm Black RAL 9005 Left / piece Argenta Aluminum Hinge 80x80 mm Black RAL 9005 Right / pc Argenta Aluminum Hinge 80x80 mm Black RAL 9005 Right / pc Argenta Aluminum Hinge 80x80 mm Blue RAL 5013 Left / pc Argenta Aluminum Hinge 80x80 mm Blue RAL 5013 Left / pc Argenta Aluminum Hinge 80x80 mm Right-Handed Pearl White RAL 1013 / pc Argenta Aluminum Hinge 80x80 mm Right-Handed Pearl White RAL 1013 / pc Argenta Aluminum Hinge 80x80 Red RAL 3003 Left / piece Argenta Aluminum Hinge 80x80 Red RAL 3003 Left / piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

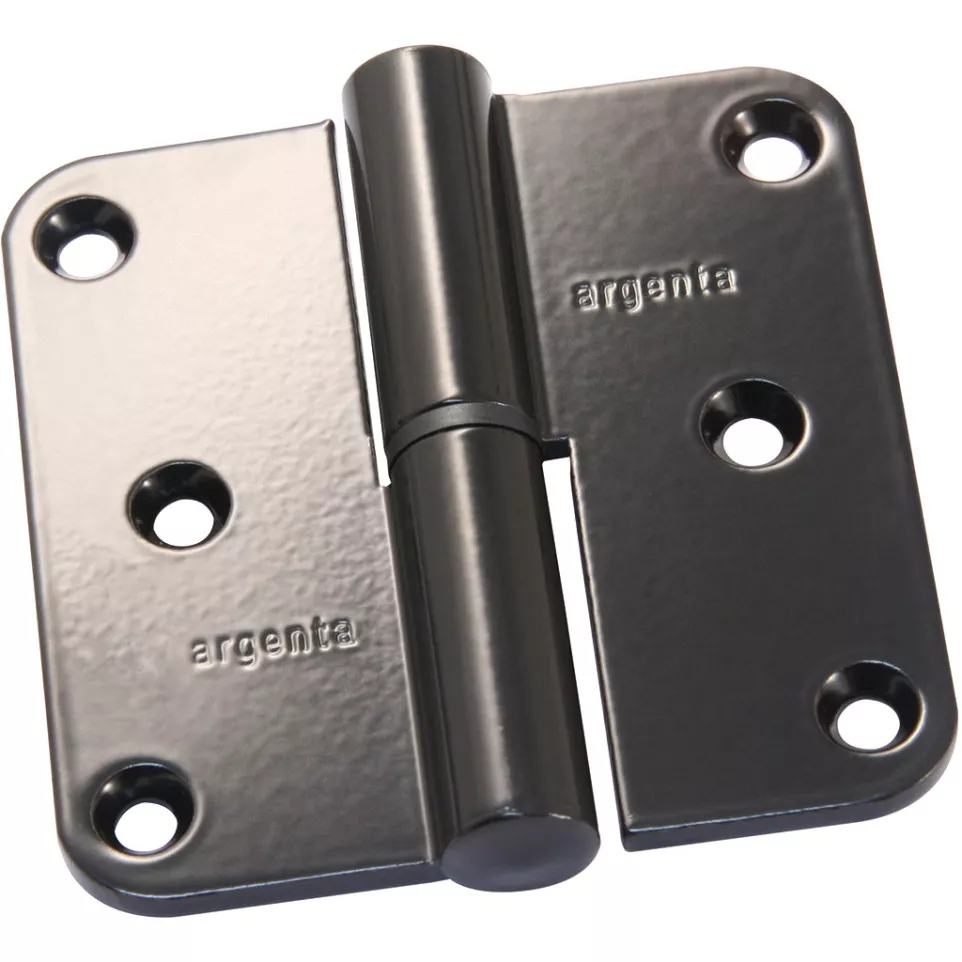

The Paumelle alu Argenta 80x80 A brun RAL 8022 gauche is designed for mounting and pivoting wooden doors in residential or commercial interiors, providing a robust and visually coordinated hinge solution for left-hand opening applications.

Advantages

  • Extruded aluminum construction ensures resistance to deformation and long-term stability.
  • Fire resistance certified RF 30 according to NBN 713.020:1968 and EN 1634-1:2000 standards.
  • Bushed steel pin with nylon anti-grip sleeve minimizes friction for smooth operation.
  • Rounded leaf corners enable safer handling and a modern aesthetic fit for various décors.
  • Easily adaptable with standard mortising templates; compatible with multiple decorative finishes.[1][2]

Specifications

  • Design: Closed-leaf hinge with rounded corners, suitable for left-hand door openings. Color: brown RAL 8022.[1][5]
  • Materials: Extruded aluminum profile (AlMgSi 0.5), hardened steel pin, wear-resistant nylon bushings.[1][5]
  • Lifespan & Certification: Fire resistance certified RF 30; conforms to established European standards.[1][5]

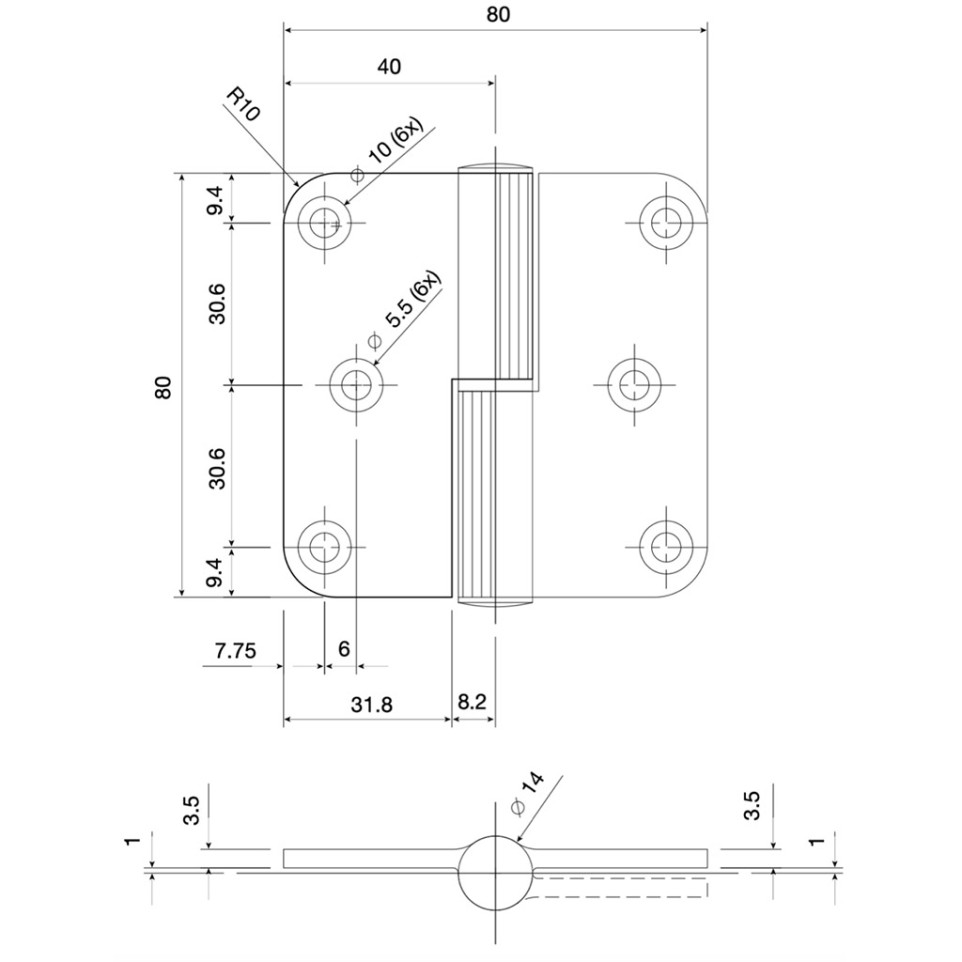

  • Main Dimensions: Leaf width: 80 mm; leaf height: 80 mm; knuckle diameter: 14 mm; leaf thickness (closed): 3.5 mm.[1][8]
  • Bearing Capacity: Supports up to approx. 10 kg per hinge when properly installed.[3][4]

How it works

This hinge is fixed onto the door frame and the edge of a wooden door using suitable screws. Its bushed steel pin ensures stable axis rotation while the nylon liner reduces operational noise and friction during repeated opening or closing cycles.[3][4]

See more

Product Details

Brand Argenta
Finishing laqué
Colour brun RAL 8022
Material used aluminium
Ø vis (mm) 4,50
Opening direction poussé gauche (DIN R)
Height (mm) 80,00
Width (in mm) 80,00
Ø noeud (mm) 14
Blade corners arrondi
FGT-124853
