Black Plastic-Coated Hinges Monin 110x80 Ø15.5 Right / pc
€6.38
In stock
Usage

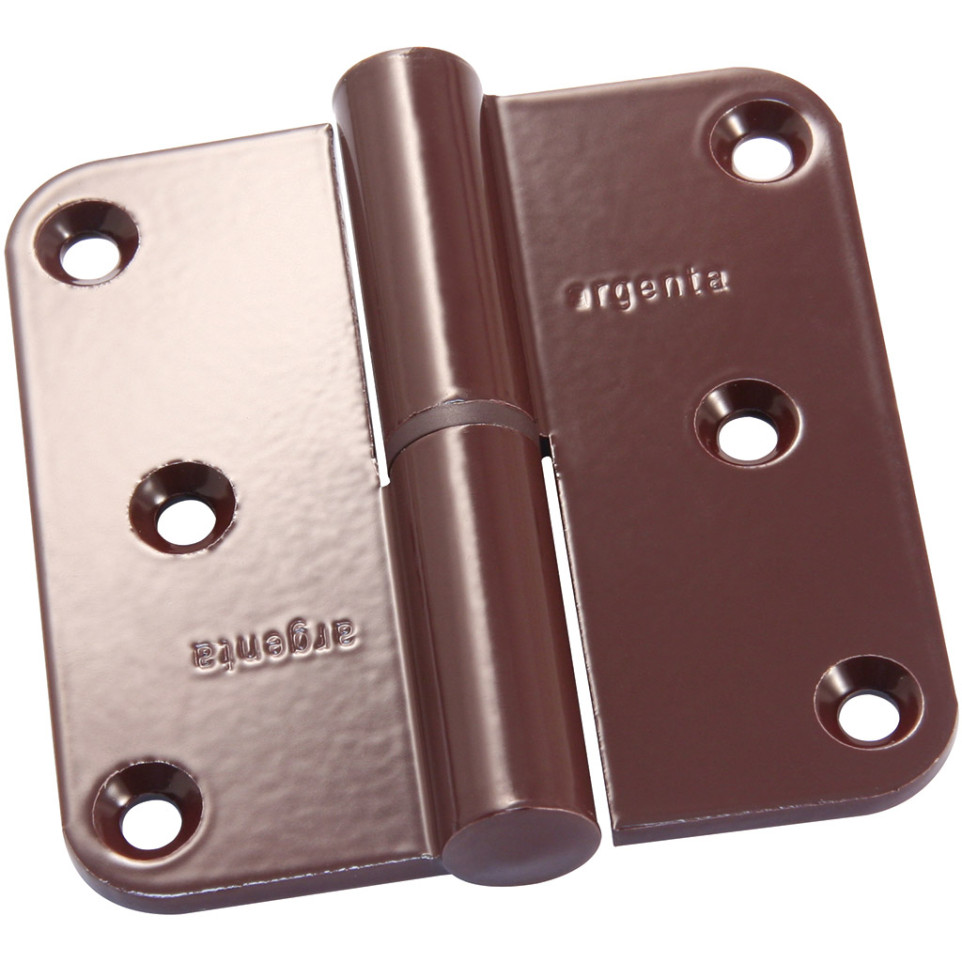

The Paumelle alu Argenta 80x80 A in Bordeaux RAL 3007 (left model) is designed for mounting doors in residential or commercial buildings, ensuring a secure and durable hinge point for aluminum or wooden doors.
Advantages
- Constructed from lightweight yet robust aluminum, facilitating easy installation and long service life.
- Bordeaux RAL 3007 finish provides aesthetic integration with dark wood or modern interiors.
- Fire resistance certified to RF30 (EN1634-1:2000), suitable for fire-rated door assemblies.
- Available as a dedicated left-hand model to match your door's specific opening direction.
- Nylon sleeve reduces friction and ensures smooth, quiet operation over time.
Specifications
- Design & Materials: Aluminum hinge with steel pin; nylon wear sleeve matching the hinge’s Bordeaux color.
Finish: Powder-coated RAL 3007; type A button design; available left-side version.

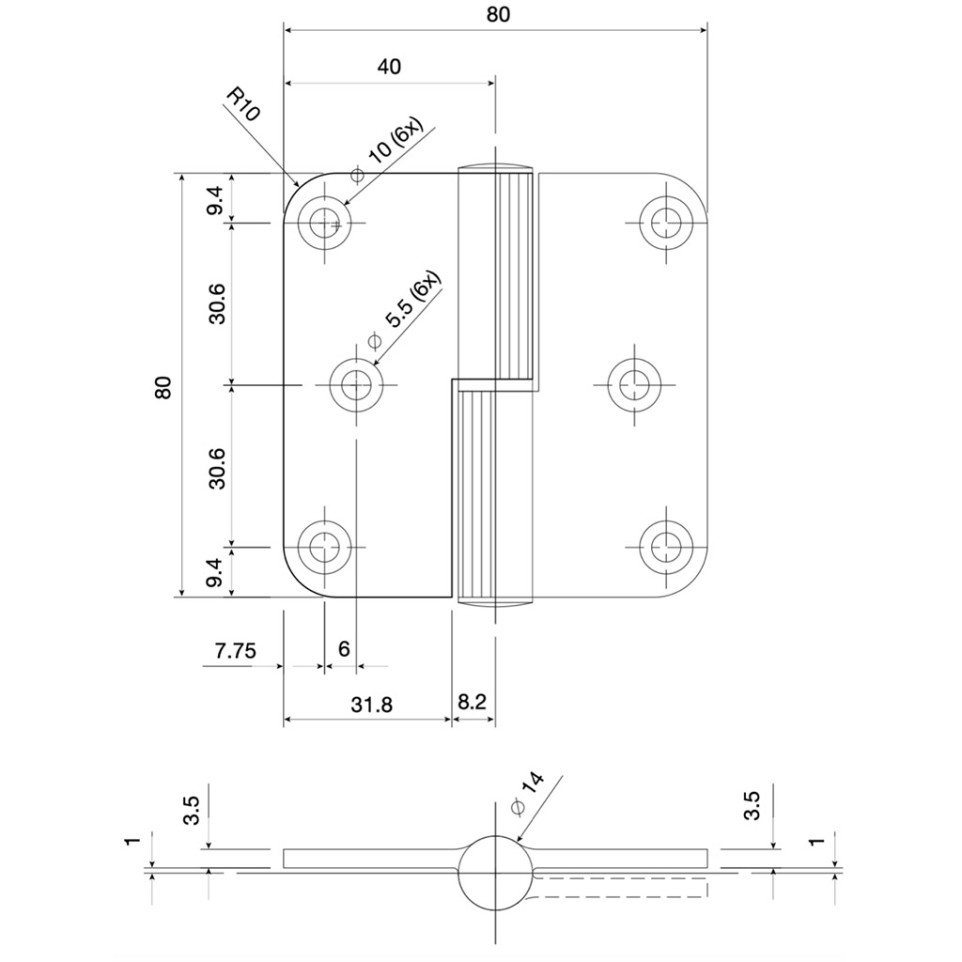

Dimensions: Height – 80 mm; width – 80 mm; closed leaf width – approx. 31.8 mm; pin diameter – Ø14 mm; thickness – approx. 3.5 mm. - Durability & Certifications: Fire resistance certificate RF30 per EN1634-1:2000 and NBN 713.020:1968 standards.
Tested for reliable performance in high-frequency use areas. - Performance: Designed to support standard interior doors efficiently while enabling consistent, low-resistance movement thanks to the nylon bushing.
Suitable for environments requiring compliance with fire safety norms. - Differentiating Features: Customizable color options via RAL palette on request;
Compatible accessories available (universal milling template, recommended screws);
Modern rounded corner design enhances visual appeal and safety.
How it works
This hinge mounts onto the door edge and frame using appropriate screws (not included). The internal steel pin rotates smoothly within a nylon sleeve, reducing wear and noise each time the door is opened or closed, while maintaining alignment even under frequent use.
