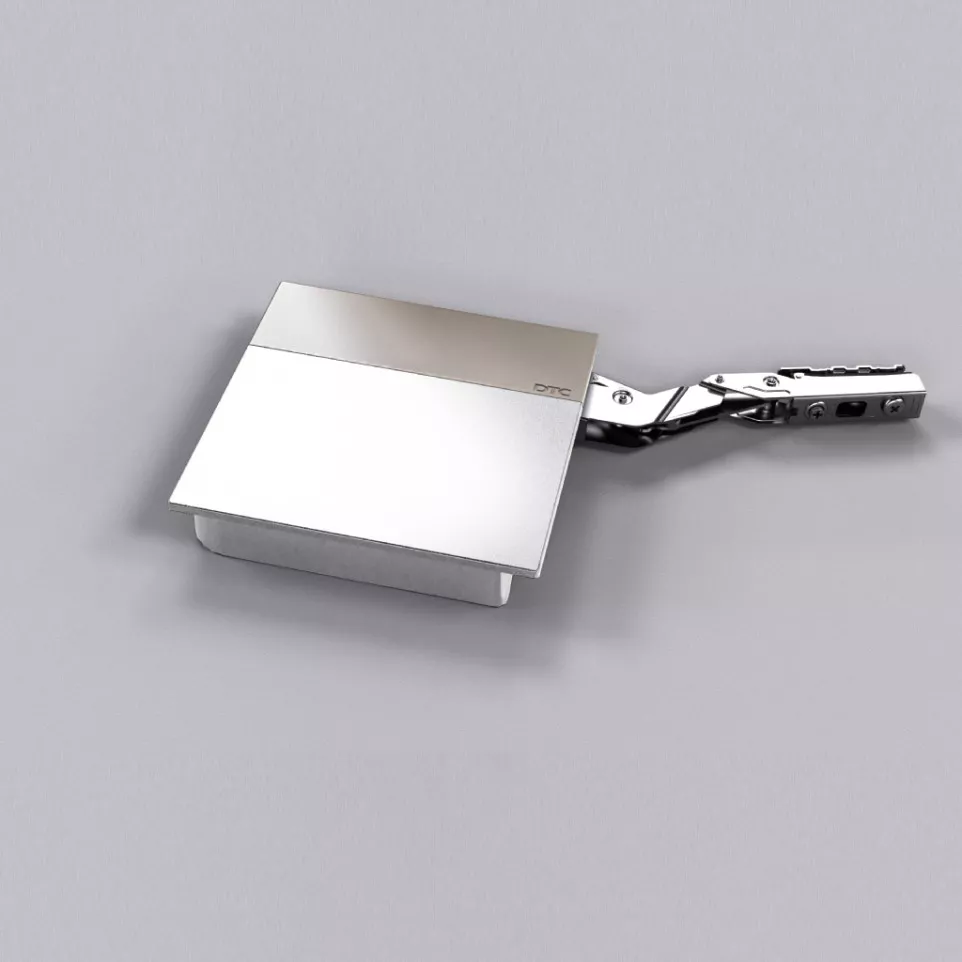

Set of 2 lightweight SQ force lifting compasses with a 107° opening angle, designed for furniture doors in cabinets 250–400 mm high. Suitable for cabinet widths up to 1200 mm; features bi-color white/nickel finish, for soft and controlled door lifting.
Specifications
- 107° opening angle
- For cabinet heights: 250–400 mm; width up to 1200 mm
- Power factor LF: 480–1250 (LF = cabinet height (mm) × door weight incl. handle)
- Door thickness compatibility: 16–28 mm
- 3D door adjustment: height ±2 mm, depth ±2 mm, side ±2 mm
- Adjustable soft-close speed
- Adjustable opening and swing force
- Tool-free assembly/disassembly
- Bi-color cap in white/nickel for discreet integration
Usage
Install each lifting compass set inside the cabinet using tool-free mounting. Adjust opening angle, door position (height, depth, lateral), and force according to door size and weight. The mechanism holds the door at the desired angle and enables smooth, soft-closing motion.
FAQ
-
What is the maximum door weight supported?
Calculate the LF (cabinet height × total door weight). With two mechanisms, LF can reach up to 1250; use a third for heavier doors, increasing capacity by 50%.
-
Can this kit be installed on all cabinet types?
It fits cabinets 250–400 mm high and up to 1200 mm wide, with door thickness between 16–28 mm.
-
Is adjustment possible after installation?
Yes, doors can be adjusted in height, depth, and laterally by ±2 mm in each direction without removing the mechanism.
-
How is the closing speed adapted?
The soft-close speed is adjustable for a tailored closing motion according to the door’s weight and user preference.
-
Is special tooling required for installation or removal?
No tools are needed for mounting or demounting, providing fast and hassle-free installation.
