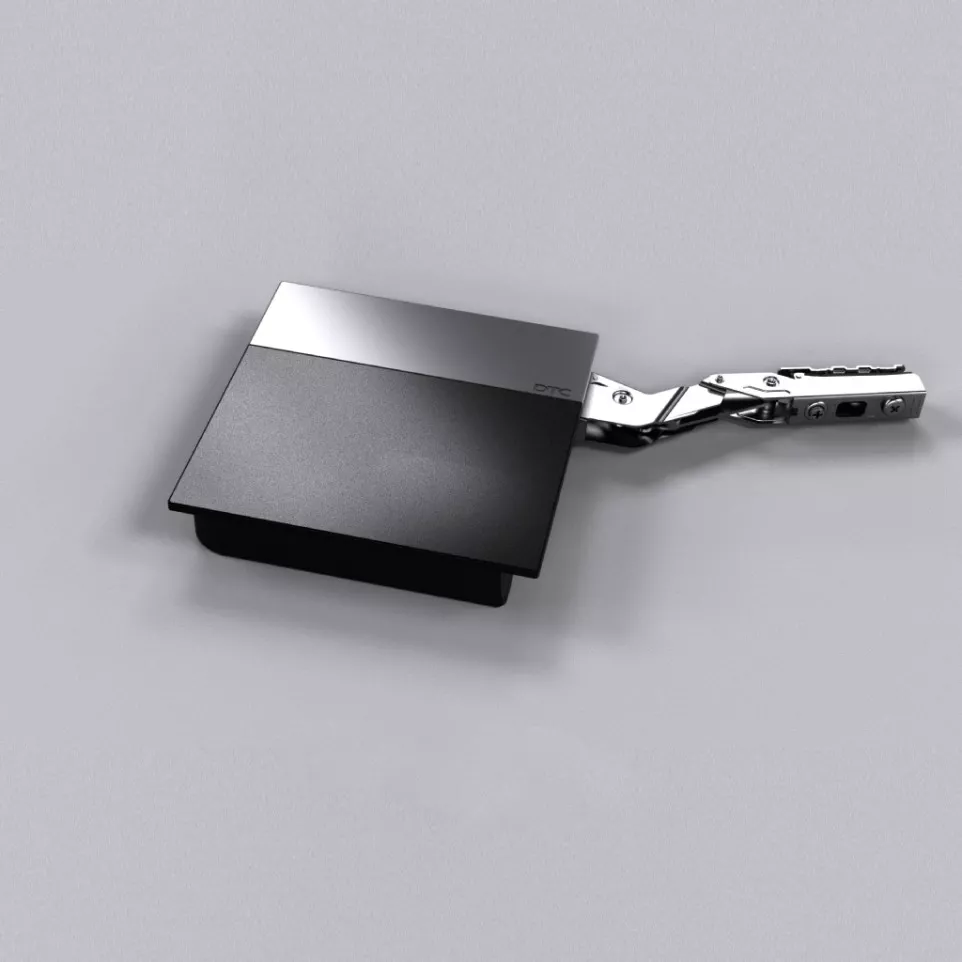

This set of 2 medium force SQ lifting compasses is designed for cabinet doors, offering an opening angle of 107° and compatibility with cabinet heights from 250 to 500 mm. Ideal for furniture requiring secure, adjustable overhead opening.
Specifications
- Anthracite/nickel bicolor caps and robust build for durability and style
- For cabinet widths up to 1200 mm
- Door thickness supported: 16–28 mm
- Power factor (LF) range: 960–2350
- 3D door adjustment: height, depth, and lateral movement, each ±2mm
- Adjustable soft-close speed
- Tool-free installation and removal
- Adjustable opening and oscillation forces
Usage
Install the lifting compass on both sides of the cabinet door to facilitate controlled, adjustable upward door opening. The hinges allow precise 3D adjustment and ensure doors remain open at the desired angle, while adjustable soft-closing prevents slamming.
FAQ
-
What cabinet sizes does this lifting compass fit?
Supports cabinet heights from 250 to 500 mm and widths up to 1200 mm.
-
Can I adjust the door position after installation?
Yes, the system provides ±2mm adjustment in height, depth, and lateral position.
-
How do I set the correct power factor (LF)?
Calculate LF as: cabinet height (mm) × door weight including handle (kg). For heavier doors, a third mechanism can be added to increase capacity by 50%.
-
Does it require tools for mounting or disassembly?
No, installation and removal are completely tool-free.
-
Is the closing speed adjustable?
Yes, the soft-close speed can be tuned according to user preference.
