Product

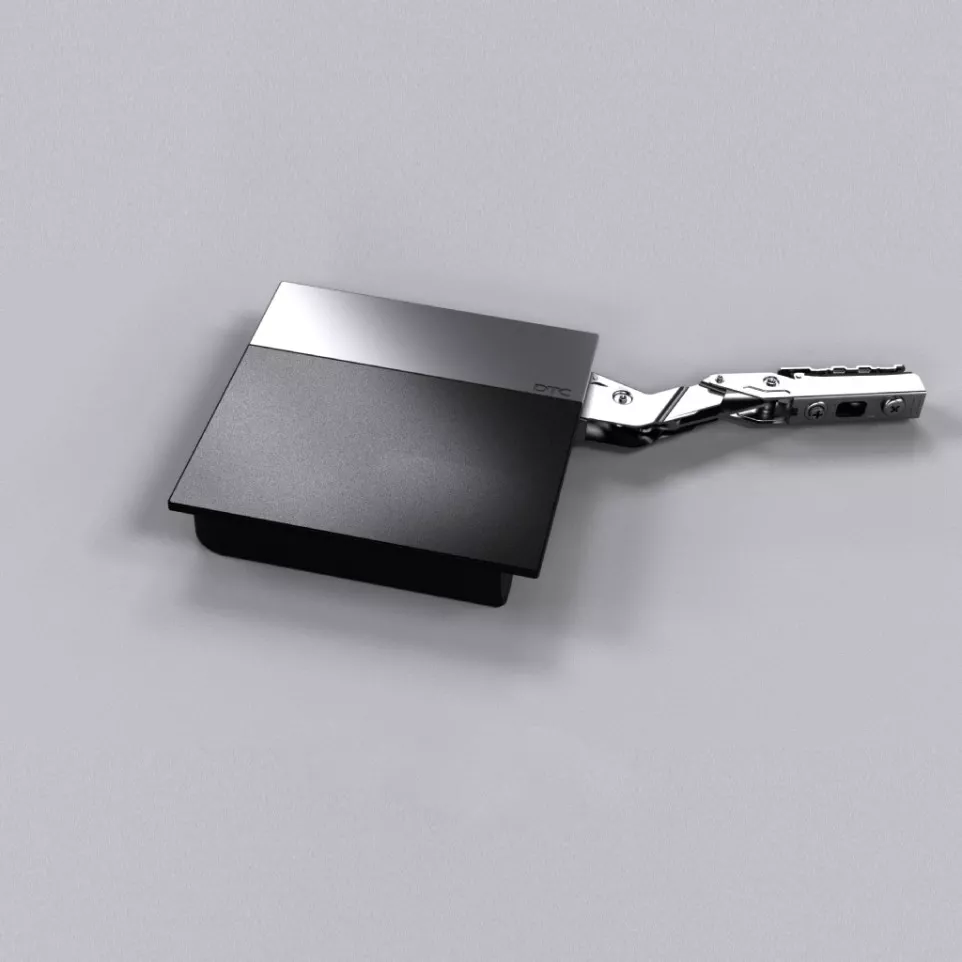

Kit of 2 SQ heavy-duty lifting compasses with anthracite/nickel finish, designed for overhead cabinet doors with heights from 350 to 600 mm and widths up to 1200 mm, featuring adjustable opening and closing dynamics.
Specifications
- 107° opening angle
- Compatible with cabinet width up to 1200 mm and door thickness from 16 to 28 mm
- Adjustable power factor LF: 2500–4500 (LF = cabinet height in mm × door weight in kg including handle)
- 3D adjustment: height, depth, and lateral (+/-2 mm each)
- Smooth closing speed is adjustable
- Opening and oscillation force regulation
- Tool-free assembly and removal
- Dual-color caps: grey/nickel
Usage
Install the lifting compasses directly on cabinet doors using a tool-free mechanism. Adjust door position (height, depth, sideways) and set both force and closing speed to fit individual usage needs. The system keeps the door safely open at the desired angle and ensures a controlled, silent closing motion.
FAQ
-
What is the maximum cabinet door size this kit supports?
- Cabinet width up to 1200 mm; height between 350 and 600 mm.
-
Is installation or removal complex?
- No, both can be performed quickly without any tools.
-
Can the closing speed be customized?
- Yes, the soft-close mechanism's speed is adjustable.
-
How do I calculate the required power factor LF?
- Multiply cabinet height (in mm) by the combined door and handle weight (in kg).
-
Is it possible to further increase lifting power?
- Yes, add a third mechanism to boost LF and door weight rating by 50%.
