Product

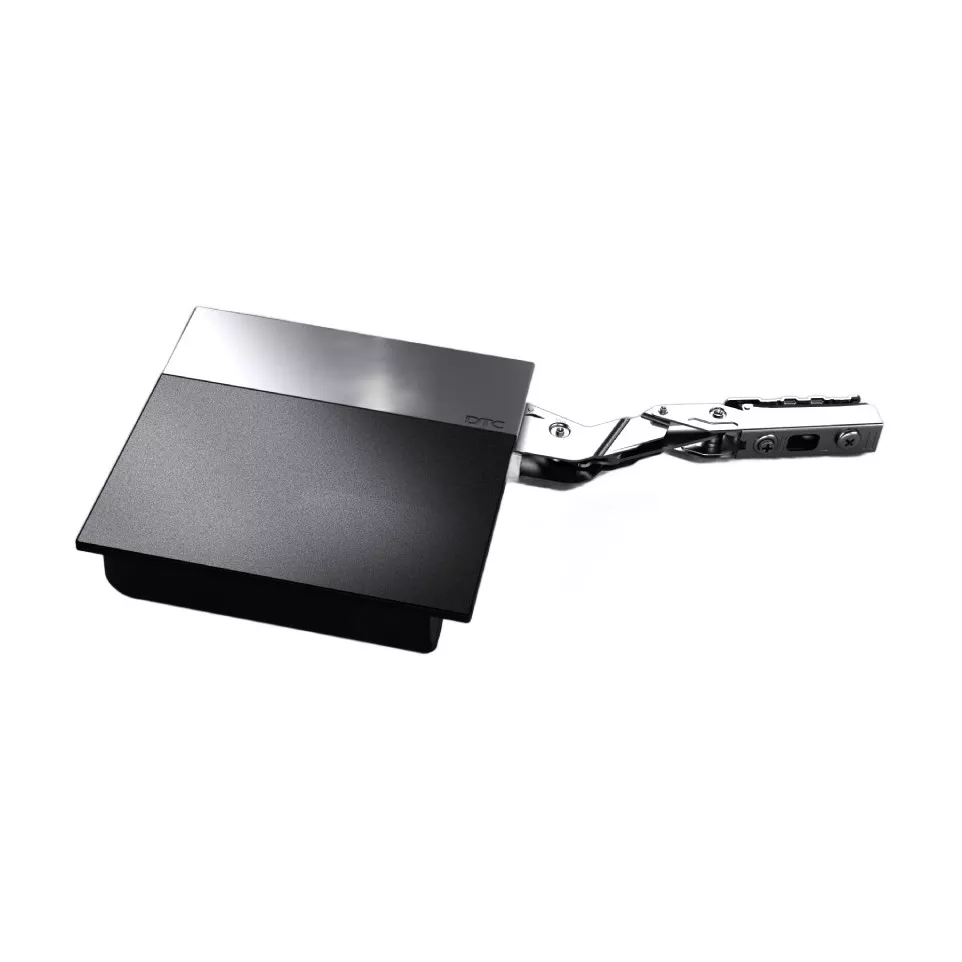

Set of 2 lightweight SQ force lifting compasses in anthracite/nickel finish, designed for cabinet doors with a height of 250–400 mm and a maximum cabinet width of 1200 mm. Ideal for controlled lid or front panel opening in furniture and cabinetry.
Specifications
- 107° opening angle for optimal accessibility
- Compatible with door thickness 16–28 mm
- Power factor LF: 480–1250 (LF = cabinet height (mm) x door weight including handle)
- Tool-free 3D adjustments: height, depth, and lateral, each +/-2 mm
- Adjustable soft-closing speed and opening/oscillation force
- Two-tone gray/nickel caps
- Easy installation and removal without tools
- Durable metal and polymer construction
Usage
Mount the compasses inside cabinetry to allow doors or flaps to lift smoothly and remain securely at the desired angle. Both force and closing speed can be adjusted for different door weights or user preferences. When three mechanisms are used, the maximum door weight or LF can be increased by 50%.
FAQ
-
What cabinet dimensions is this kit compatible with?
- Suitable for cabinets 250–400 mm in height and up to 1200 mm wide.
-
Can I adjust the door position after installation?
- Yes, the compasses feature 3D adjustment with +/-2 mm in height, depth, and lateral direction.
-
How is the soft-close speed set?
- The closing speed can be tuned to user preference using the built-in adjustment mechanism.
-
What materials are these lifting compasses made from?
- They are constructed from lightweight metals with anthracite and nickel-plated finishes and feature durable two-tone caps.
-
Is tool-free installation possible?
- Yes, both assembly and disassembly are possible without the use of tools.
