Product

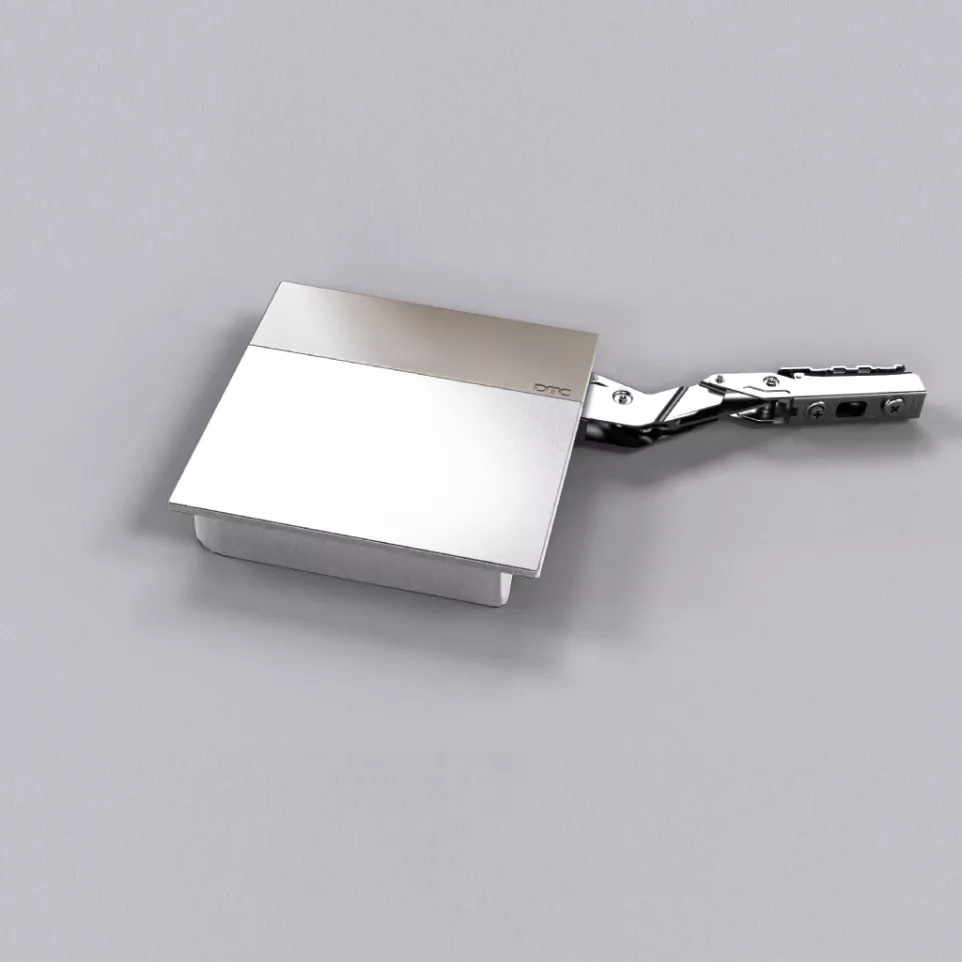

Kit of 2 strong lift-up compasses with a 107° opening angle, finished in white/nickel, designed for cabinet heights between 250 and 500 mm and widths up to 1200 mm, ideal for precise and convenient overhead or wall cabinet door control.
Specifications
- Made with durable, high-quality white/nickel materials and bicolor end caps
- Supports cabinet doors with thickness from 16 to 28 mm
- 107° maximum opening angle to optimize access and ergonomics
- Power factor (LF) range: 1600–3600, adjustable to suit door height and weight
- 3D door adjustment: height, depth, and lateral alignment all ±2 mm
- Adjustable soft-close speed for gentle and controlled closing
- Opening and swing forces are user-adjustable for tailored operation
- Tool-free mounting and removal enhances installation efficiency
Usage
Install the kit on cabinet doors within specified size and weight limits to achieve controlled, adjustable lift-up motion; doors remain open at any angle up to 107°, while soft-close mechanics allow for a smooth, quiet return. The product enables quick, tool-free adjustment and removal, with 3D alignment ensuring perfect fit and function.
FAQ
-
What cabinet types are compatible with this kit?
Compatible with overhead or wall cabinets 250–500 mm high and up to 1200 mm wide, with door thickness between 16–28 mm.
-
How do I set the appropriate opening force?
Adjust the force using the integrated mechanism based on your cabinet door’s specific weight and height, within the LF factor range of 1600–3600.
-
Is soft-close speed adjustable?
Yes, the soft-close speed can be fine-tuned to your preference for optimal closing control.
-
Can I install or remove the compasses without tools?
Yes, both installation and removal can be completed easily and quickly without any tools.
-
What adjustments can be made after installation?
Height, depth, and lateral positions can each be adjusted up to ±2 mm for optimal door alignment.
