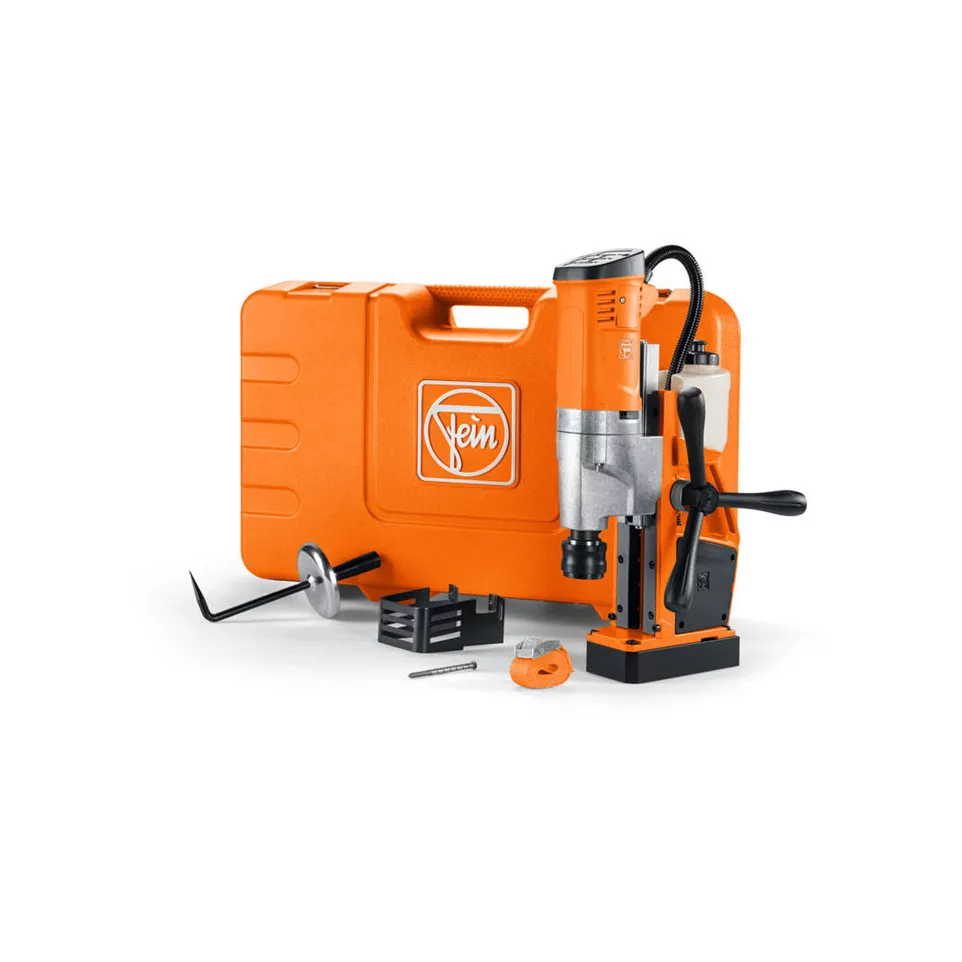

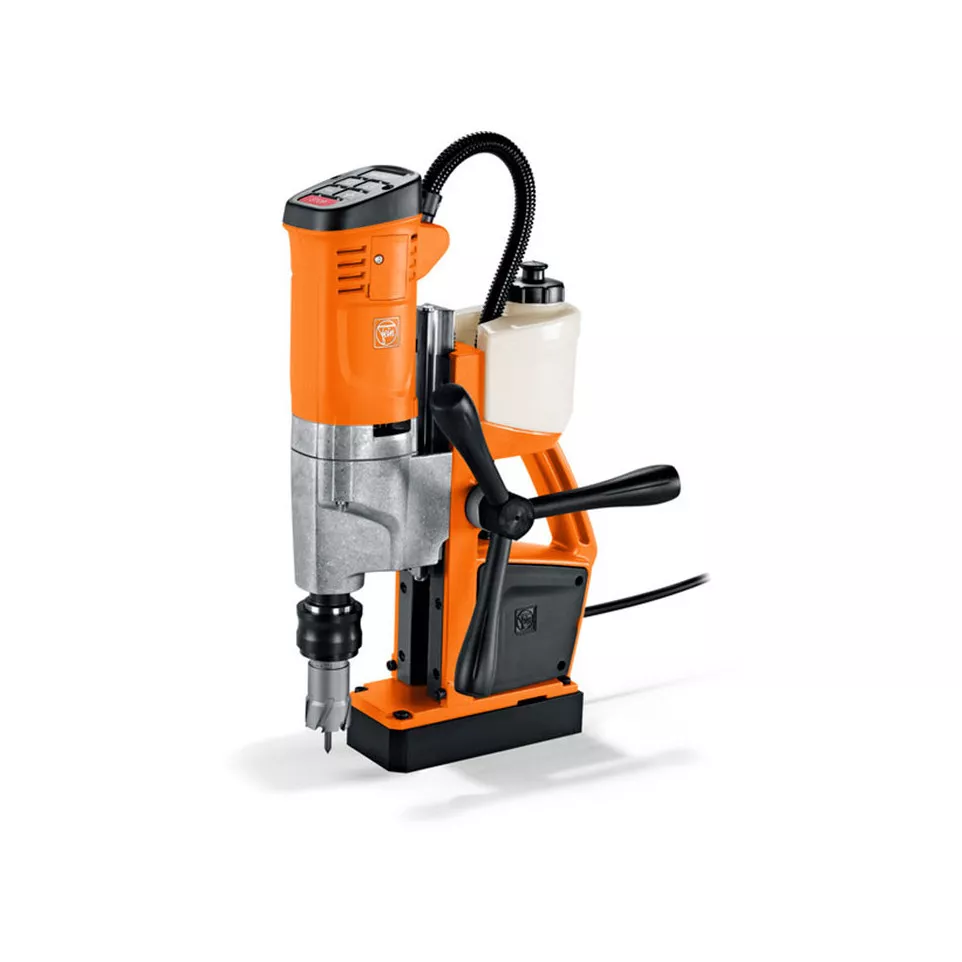

FEIN KBU 35 Q Magnetic Core Drill / pc

Usage

The Fein KBU 35 Q QuickIN magnetic drill is designed for universal core drilling, twist drilling, tapping, countersinking, and reaming on ferrous materials. Its compact build suits industrial manufacturing, metal fabrication, and construction sites.

Advantages

• QuickIN tool holder enables rapid, tool-free bit changes for increased efficiency.
• Compact and lightweight design (10.7 kg) allows easy handling in tight workspaces.
• High magnetic holding force of 10,000 N ensures stable operation during demanding tasks.
• Variable speed control with memory function provides precise adjustment across different applications.
• Tilt sensor adds an extra layer of safety by alerting users to device misalignment.

Specifications

• Durable housing equipped with a swivel-mounted motor cable protection hose; integrated coolant tank extends tool life.
  Powered by a single-speed, high-power FEIN motor (1,100 W input/550 W output).
• The machine meets professional standards for industrial use; features an ergonomic handle that can be placed on either side for adaptability.
  Includes electronic tacho electronics to maintain speed stability under load.
• - Core drill diameter: up to Ø35 mm
  - Drilling depth: up to 50 mm
  - Twist drill diameter: up to Ø16 mm
  - Tapping capacity: M14
  - Speed range under full load: 130–520 rpm
  - Total stroke range: up to 260 mm
• Differentiators include reversible rotation capability (clockwise/counter-clockwise), clear operating elements that minimize user error, a robust magnetic base measuring 175 x 80 mm with display indicator,
  tool-free bit change system (QuickIN), and built-in safety functions such as tilt sensor and personal safety switch.

How it works

Place the KBU 35 Q on a ferrous workpiece; its strong electromagnetic base secures the unit. Select the required drilling mode or operation. The QuickIN holder makes changing bits simple without tools. Adjust speeds as needed using the built-in controls before starting your task.[1][4][9]
